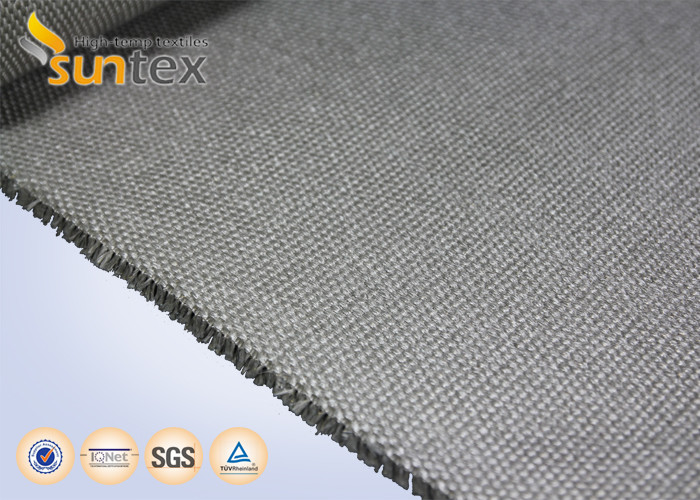

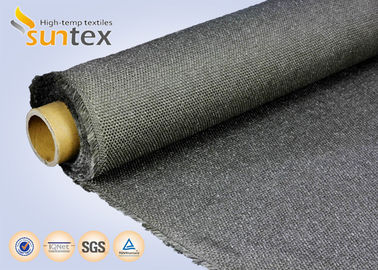

Stainless Steel Wire Inserted Fiberglass Woven Fabric With Calcium Silicate Coating

Stainless Steel Wire Inserted Fiberglass Woven Fabric With Calcium Silicate Coating
Stainless Steel Wire Inserted Fiberglass Woven Fabric With Calcium Silicate Coating Stainless Steel Wire Inserted Fiberglass Woven Fabric With Calcium Silicate Coating

Large Image :  Stainless Steel Wire Inserted Fiberglass Woven Fabric With Calcium Silicate Coating

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Model Number: TGF1200S-CS213-5030

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Thickness: 1.4 Mm Weave Tape: Panama
Fiberglass Cloth Weight: 1220 G/M2 Fiberglass Cloth Color: Grey
Fiberglass Cloth Width: 1.5 Mtr Or Customized Size Roll Length: 50 Mtr
Technology: Stainless Steel Wire Inserted Coating: Calcium Silicate
High Light:

fiberglass cloth heat resistant

,

high temperature fabrics

Stainless Steel Wire Inserted Woven Fiberglass Fabric With Calcium Silicate Coating



Description:



TGF1200S-CS213-5030 is a stainless steel wire inserted woven texturized fiberglass fabric coated with a formulated inorganic solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems. This style withstands temperature extremes of up to 750 0C, no significant deterioration in flexibility or strength, without smoke/fumes release when catches fire.



Fiberglass Cloth​ Date sheet:



BASE FABRIC Base fabric style No. TGF1200S
  (Metric) (English) Test methods
Weave Panama Panama
Yarn
Warp

ET9 1250 tex

S.S 316# wire

ETG 4.0

S.S 316# wire


Weft

ET9 770 tex

S.S 316# wire

ETG 6.5

S.S 316# wire


Construction
Warp 6 ± 0.6 ends /cm 15 ± 2 ends/inch ASTM D 3775-96
Weft 5.5 ± 0.5 picks /cm 14 ± 2 picks/inch ASTM D 3775-96

COATED FABRIC Coating style No. CS213-5030
Coating Formulated inorganic solutions coated on both sides
Weight 1220 ± 50 g/m2 36 ± 1.47 oz/yd2 ASTM D3776-96
Thickness 1.4 ± 0.07 mm 0.055 ± 0.003 inch ASTM D1777-96
Color Grey
Temp resistance

7500C for the coating

8000C for the base fabric





Fiberglass Cloth​ Advantages:



Excellent anti abrasion property

Easy to be cut, sewn and fabricated

15 years experience Chinese supplier

3 part certificate insulation verified

High temperature esiatent up to 1000C

Short lead time

Manufacturer price



Application:



High temperature welding blanket

Removable insulation mattress, jacket & pad

Fire doors/smoke curtain

Dusts filter bag

Flexible expansion joints & compensators

Stainless Steel Wire Inserted Fiberglass Woven Fabric With Calcium Silicate Coating 0
