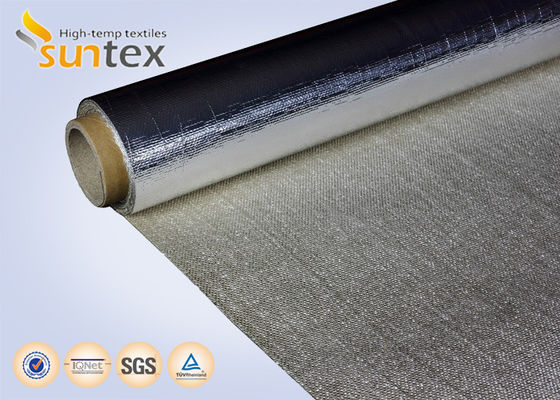

0.75mm 150C Heat Reflective Fabric Aluminum Foil Coated Glass Fiber Welding Fire Blanket Rolls

China Suntex Composite Industrial Co.,Ltd. certification
China Suntex Composite Industrial Co.,Ltd. certification
They are a trust partner truly. They deliver goods fast with satisfying quality.And they are professional in high temperature textiles, always contribute for different projects.

—— Jacky Huang

We have been working with Suntex for over 10 years, they keep quality stable always. They treat every single request of us seriously. It's happy to work together with them anyway.

—— MS. Hande

I'm Online Chat Now

0.75mm 150C Heat Reflective Fabric Aluminum Foil Coated Glass Fiber Welding Fire Blanket Rolls

0.75mm 150C Heat Reflective Fabric Aluminum Foil Coated Glass Fiber Welding Fire Blanket Rolls
0.75mm 150C Heat Reflective Fabric Aluminum Foil Coated Glass Fiber Welding Fire Blanket Rolls

Large Image :  0.75mm 150C Heat Reflective Fabric Aluminum Foil Coated Glass Fiber Welding Fire Blanket Rolls

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Certification: ISO9001; SGS M0 Certificate
Model Number: TGF580-AL122-6005

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Pattern: Plain Application: Welding Blanket
Thickness: 0.75mm Working Temperature: 150 C
Treatment: Aluminized Single Side Property: Water Proof
Color: Silver Width Available: 100cm,120cm
High Light:

thermal reflective fabric

,

aluminum fiberglass cloth

0.75mm 150C Heat Reflective Fabric Aluminum Foil Coated Glass Fiber Welding Fire Blanket Rolls

Product Description



Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.



-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.



Main applications:

1.Thermal insulating materials of the steam heating pipelines
2.Fireproof packing materials
3.Wrapping materials of oil transportation pipelines and steam pipelines

4.Heat-retardant curtains or screens

5.Thermal insulation covers, mattress, and pads

6.Welding/fire protection

7.Safety cloth and apron

8.Other fire and smoke control systems






BASE FABRIC Base fabric style No. TGF580
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp ET9 430 tex ETG 11.6
Weft ET9 430 tex ETG 11.6
Construction
Warp 8 ± 0.8 ends/cm 20 ± 2 ends/inch
Weft 5.7 ± 0.6 ends/cm 14 ± 1 ends/inch
Weight 580 ± 30 g/m2 17 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.70 ± 0.05 mm 0.028 ± 0.002 inch ASTM D1777-96






COATED FABRIC Coating style No. AL122-6005
Coating Aluminum foil (22 microns) laminated on one side
Weight 640 ± 30 g/m2 18.82 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.75 ± 0.04 mm 0.03 ± 0.0002 inch ASTM D1777-96
Color Silver
Flame resistance Non-combustible
Working temp

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1400C (3000F)


RELATED PRODUCT


PRODUCT SELECTION GUIDE

Style No. Weight Thickness
(g/m2) Oz/yd) (mm) (inch)
GF200-AL114--6001 250 7.3 0.21 0.08
GF430-AL114--6002 470 13.8 0.42 0.016
GF580-AL122--6005 630 18.5 0.75 0.03
TGF1000-AL118--6007 1050 31 1.5 0.059
