Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct

Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct
Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct

Large Image :  Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Suntex
Model Number: GF600C-Al118-6004

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Square Meter/Square Meters
Price: US$1 - US$5 / Square Meter
Packaging Details: Fabric rolls packed in cartons loaded on pallets or according to customers' requirements.
Delivery Time: 5-20 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 300000 Meter/Month
Detailed Product Description
Weave Type: Twill Woven Alkali Content: Alkali Free
Yarn Type: E-Glass Thickness: 0.6mm
Weight: 650 G/㎡ Color: Silver
Width: 1m, 1.2m, 1.5m, 1.8m, 80~200cm, Or Customized Surface Treatment: Aluminum Foil
Property: Heat Protection Standing Temperature: 550 Degree C
Good Features: Insulation, Good Heat Reflection, Abrasion Proof Application: Thermal Insulation Jackets
Application 1: Insulation Cover, Heat Protection Cushions, Motor Vehicle Industry Application 2: Fire Curtain, Duct, Protection For Piping Outside, Electric Prevention
High Light:

silver heat reflective fabric

,

aluminum fiberglass cloth

Aluminum Foil Laminated Fabric For Thermal Insulation Cover, Heat Resistant Curtain, Duct

Product Description

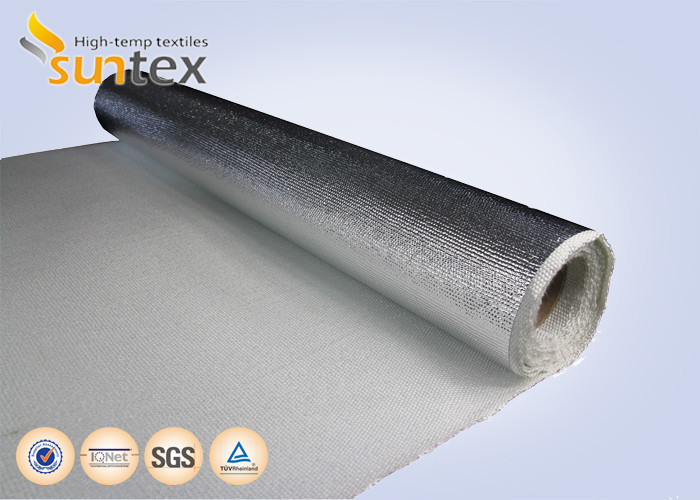

Aluminum foil/film laminated fiberglass fabrics

    The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.



-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.



BASE FABRIC Base fabric style No. GF600
  (Metric) (English) Test methods
Weave Check board Check board
Yarn
Warp EC9 33 3*2 ECG 150 3/2
Weft EC9 33 3*2 ECG 150 3/2
Construction
Warp 14.5 ± 1.4 ends/cm 37 ± 3 ends/inch
Weft 14.5 ± 1.4 ends/cm 37 ± 3 ends/inch
Weight 600 ± 30 g/m2 17.6 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.59 ± 0.05 mm 0.023 ± 0.0002 inch ASTM D1777-96

COATED FABRIC Coating style No. AL118-6004
Coating Aluminum foil (18 microns) laminated ,one side
Weight 650 ± 30 g/m2 19 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.65 ± 0.05 mm 0.025 ± 0.0002 inch ASTM D1777-96
Color Silver
Flame resistance Non-combustible
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1800C (3000F)






RELATED PRODUCT


PRODUCT SELECTION GUIDE

Style No. Weight Thickness
(g/m2) Oz/yd) (mm) (inch)
GF200-AL114--6001 250 7.3 0.21 0.08
GF430-AL114--6002 470 13.8 0.42 0.016
GF580-AL122--6005 630 18.5 0.75 0.03
TGF1000-AL118--6007 1050 31 1.5 0.059



Product Application
