0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron

China Suntex Composite Industrial Co.,Ltd. certification
China Suntex Composite Industrial Co.,Ltd. certification
They are a trust partner truly. They deliver goods fast with satisfying quality.And they are professional in high temperature textiles, always contribute for different projects.

—— Jacky Huang

We have been working with Suntex for over 10 years, they keep quality stable always. They treat every single request of us seriously. It's happy to work together with them anyway.

—— MS. Hande

I'm Online Chat Now

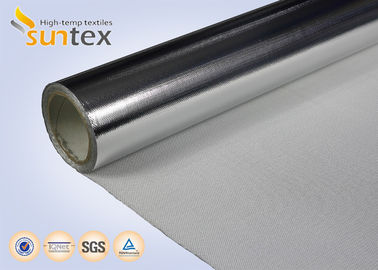

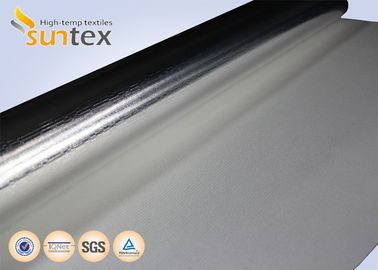

0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron

0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron
0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron 0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron

Large Image :  0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Model Number: GF430-AF110–6008

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Application: Heat Protection Glove And Apron Thickness: 0.4mm
Working Temperature: 550C Treatment: Aluminum Film Laminated
Property: High Temp. Reflective Density: 440gsm
High Light:

silver heat reflective fabric

,

aluminum fiberglass cloth

0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron



Product Description



Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.



-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.



BASE FABRIC Base fabric style No. GF430
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 33 1*4 ECG 150 1/4
Weft EC9 33 1*4 ECG 150 1/4
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96




COATED FABRIC Coating style No. AF110-6008
Coating Aluminised polymer film ,one side
Weight 450 ± 20 g/m2 13.2 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.39 ± 0.03 mm 0.015 ± 0.0012 inch ASTM D1777-96
Color Silver
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1400C (3000F)







Product Application


Exhibition & Example
