High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Unit Weight | 17 Oz/sqy | Standard Width | 1520mm 1550m |
|---|---|---|---|
| Standard Thickness | 0.016 Inch | Colour | Black |
| Pattern | Crowfoot | Coating Temperature Resistance | 330℃ 620℉ |
| Basic Fabric Temperature Resistance | 550℃ 1000℉ | Coating | PTFE 1 Side |
| High Light | ptfe coated glass fabric,e glass cloth |
||
Product Description

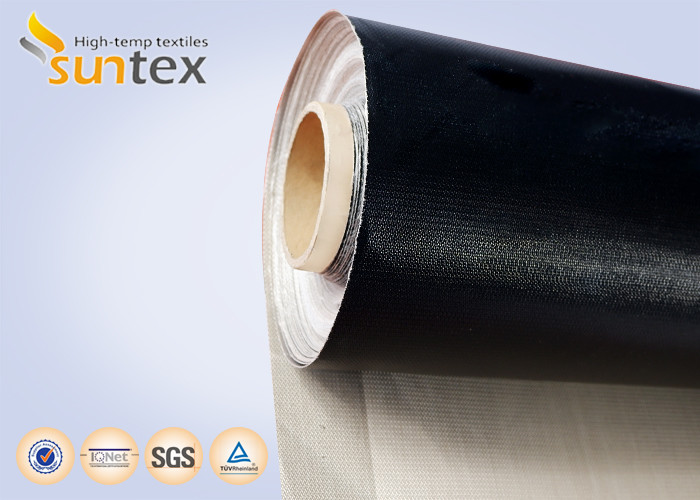

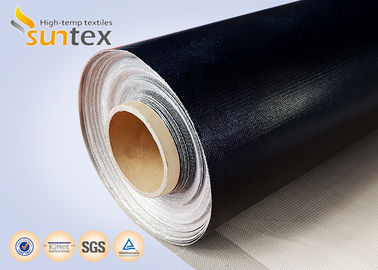

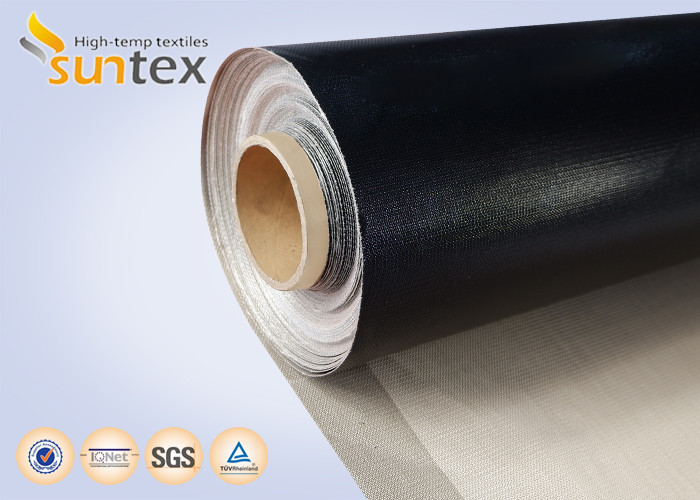

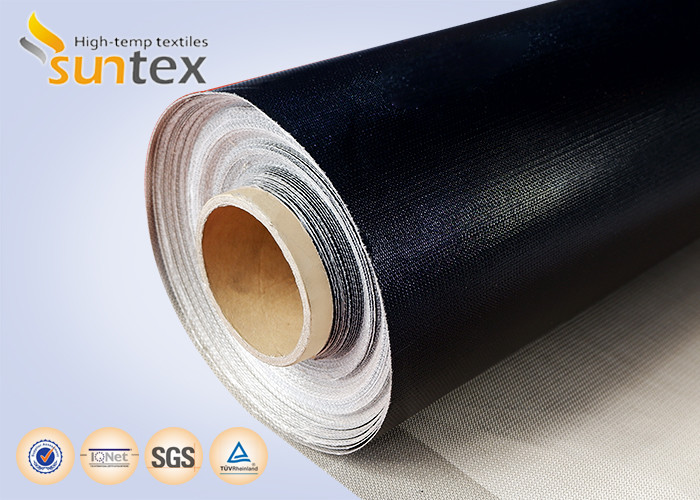

High Temperature Thermocovers PTFE Coated Fiberglass Fabric 17OZ Fire Barrier Fabric Glass Fiber Cloth
Introduce
GF430P-PTFE135-8001 is single side PTFE coated fiberglass, middle level thickness and weight. it is black color, have antistatic property, can be used in different environment like chemical corruption or volatile matter environment. PTFE has good resistance to abrasion.
Advantage
1. Fire resistance to 300℃.
2. Black color. End users can choose the favority face.
3. Hard surface, easy to be applied, sewn and fabricated.
4. Well abrasion, chemical resistance property.
5. Well tensile strength.
6. Nominal thickness, unit weight, pattern, all can be customized base on your use method.
Data
| Standard weight | 17oz/y2 |
| Standard Thickness | 0.016inch |
| Standard width | 1520mm 1550mm |
| Coating | PTFE |
| Colour | Black |
| Fire resistance | Well |
| Coating temperature resistance | PTFE coating 620 ℉ |
| Basic fabric working temperature | Basic fabric 1000 ℉ |
| Pattern | Crowfoot |
| Yarn warp | EC9 136 1*0 |
| Yarn weft | EC9 136 1*0 |
| Construction warp | 48 ± 3 ends/inch |
| Construction weft | 32 ± 3 ends/inch |
| Fiberglass | E-Glass |
Applications
GF430P-PTFE135-8001 is usualy used as dust Lagging, fire curtain, removable heat insulation shell and heat insulation mattress.
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF430P-PTFE135-8001 | 580 | 17 | 0.43 | 0.016 | Black | 1 side |
| GF430P-PTFE133-8003 | 580 | 17 | 0.43 | 0.016 | Silver Grey | 1 side |
| GF430P-PTFE233-8006 | 610 | 20 | 0.45 | 0.017 | Black/Grey | 2 sides |
Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
