|Weight:||470 G/sqm||Thickness:||0.4 Mm|
|Color:||Silver Grey||Weave Tape:||Satin Weave|
aluminized fiberglass cloth,
aluminized fiberglass fabric

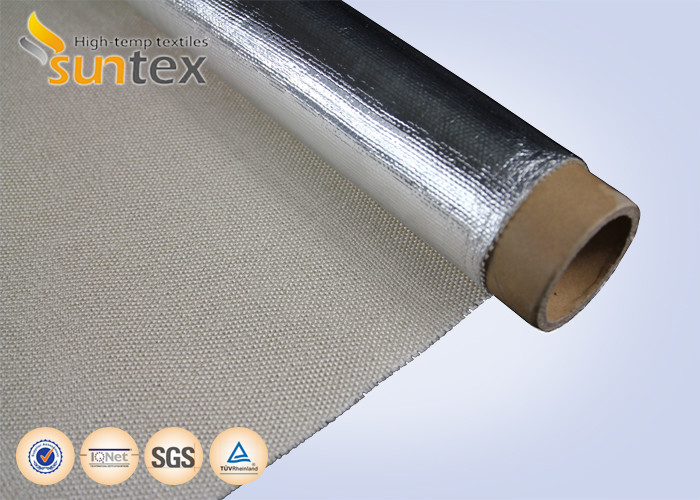

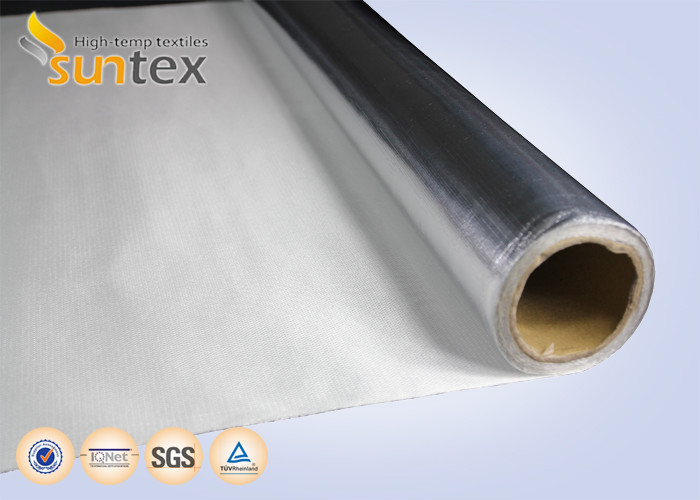

Silver Heat Reflective Aluminum Fiberglass Cloth For Flexible Hose Fabricating Purpose
Produce name: aluminum foil coated fiberglass fabric
Our aluminum foil laminated fiberglass cloth is made of fiberglass fabrics laminated in an aluminum foil or film. It can resist extreme heat and has a soft surface, high performance, good reflective effect, sealing insulation, fireproof,gas-proof and waterproof. The thickness of aluminum foils is from 0.2mm to 2.5 mm.
Usage: heat retardant curtain/thermal insulation cover/welding protection/fire protection/safety cloth and apron/aluminum foil backed insulation /non-metallic compensator/anti-corrosion
Color: silver/grey/or customized
|BASE FABRIC||Base fabric style No. GF430|
|Warp||EC9 33 1*4||ECG 150 1/4|
|Weft||EC9 33 1*4||ECG 150 1/4|
|Warp||18 ends /cm||48 ± 3 ends/inch|
|Weft||12.6 picks /cm||32 ± 3 picks/inch|
|Weight||430 ± 20 g/m2||12.6 ± 0.58 oz/yd2||ASTM D3776-96|
|Thickness||0.37 ± 0.02 mm||0.0145 ± 0.0008 inch||ASTM D1777-96|
|COATED FABRIC||Coating style No. AL114-6002|
|Coating||Aluminum foil (14 microns) laminated ,one side|
|Weight||460 ± 20 g/m2||13.5 ± 0.59 oz/yd2||ASTM D3776-96|
|Thickness||0.40 ± 0.03 mm||0.04 ± 0.0012 inch||ASTM D1777-96|
Glass fabric up to 5500C (10000F)
Aluminum foil up to 1500C (3000F)
PRODUCT SELECTION GUIDE
1. F: Why do you choose us?
Q: Suntex management and staff have over 20 years of cumulative experience in industrial textiles. With state-of-the-art equipment, Suntex is committed to offer customers high quality and cost-effective products.
2. F: What is your delivery time?
Q: Generally we will within 30 days of delivery to you, depending on the number you need us here to determine the time of delivery
3. F: What is your shipping port?
Q: Normally Shanghai port, or according to customer’s request.
4. F: Can you produce customized goods?
Q: Surely, we can be customized according to your demanding.
5. F: What kinds of payment you accept?
Q: We accept T/T, D/A, L/C, D/P.
6. F: Do you have other production?
Q: Certainly, we have Silica fiber, Stainless steel(S.S) Wire reinforced E-glass fabric, Vermiculite coated fiberglass fabric, Graphite treated fiberglass fabric, Calcium silicate coated fiberglass fabric, Polyurethane (PU) coated fiberglass fabric, Neoprene coated fiberglass fabric, PTFE coated fiberglass fabric, Aluminium foil/film laminated fiber glass fabric, Weave lock/ finished fiberglass fabric, Fire blankets, Industrial heat sealing textiles, Tailor-made solutions for thermal insulation needs. We are looking forward to your enquiry.
