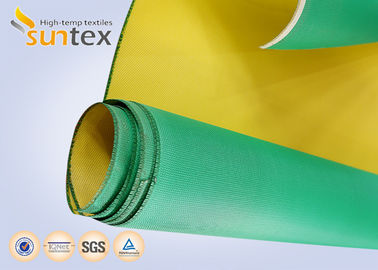

Fiberglass Fire Curtain PU Coated Fiberglass Fabric For Air Distribution System Yellow Green Shade For Welding

Place of Origin China
Brand Name SUNTEX
Model Number GF430P-PU21D-2009
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 460g/sqm Width 1000mm 1520mm 1550m 2000m
Thickness 0.41mm Color Yellow/Green
Weave 4H Satin Temperature Resistance /Working Temperature 550℃ 1000℉
Fiberglass Fabric Coated PU Two Sides Fiberglass E-glass
High Light

fireproof fiberglass cloth

,

fire retardant cloth

Leave a Message
Product Description

Fiberglass Fire Curtain PU Coating Fabric For Air Distribution System Yellow Green Shade Curtain for Welding



Introduce



GF430P-PU21D-2009 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer. GF430P-PU21D-2009 is the fabric applied for textile air distribution system. The other applications for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.



Advantage



1. M0 certified fire resistance Fiberglass Fabric.

2. Yellow/Green color. Various color available.

3. Easy to be used/applied, sewn and fabricated.

4. Good abrasion resistance property.

5. Good tensile strength.

6. Thickness, weight, weave, all can be customized base on your application.



Data



Weight 460 g/m2
Thickness 0.41 mm
Width 1000mm 1300mm 1550mm 2000m
Fiberglass Fabric Coated PU
Fiberglass Fabric Color Yellow/Green
Fire resistance M0 Approval
Working temperature Basic fabric 550 ℃, PU coating 180 ℃.
Weave 4H Satin
Yarn warp EC9 136 1*0
Yarn weft EC9 136 1*0
Construction warp 18±1 ends/cm
Construction weft 12.6±1 ends/cm
Fiberglass E-Glass



Applications



Smoke curtain

Fire blanket

Expansion joint

Reusable thermal insulation cover

Thermal insulation pad

Air duct



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides
