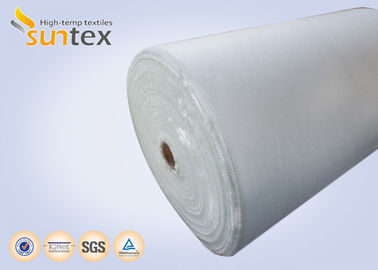

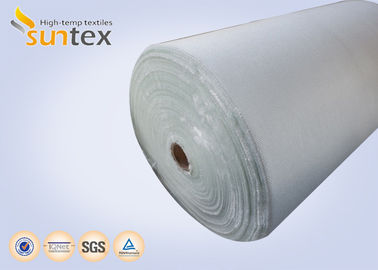

1.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers

  • 1.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers
  • 1.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers
  • 1.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers
Place of Origin China
Brand Name SUNTEX
Model Number TGF1000-HT
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Engine Exhaust Pipe Covers Weight 1000g/sq.mtr
Working Temperature 550 C Color Brown
Yarn Texturized Treatment Heat Clean
High Light

fiberglass woven fabric

,

glass fiber woven fabric
Leave a Message
Product Description

1.3mm Bulk Woven Fiberglass Cloth Heat Insulation Roll Engine Exhaust Pipe Covers



TGF 1000-HT is a heavy weight woven texturized fiberglass fabric,treated with heat clean.



Texturized fiberglass fabrics are woven by textured E-glass yarns with 9μm and 6μm diameter. Bulk texturing increase the thickness of the fabric to improve the thermal insulation capacity.



This fabric support temperatures to 5500C (10000F). Applications for this fabric includes lagging, padding, removable jacket, thermal insulation covers, stress relief, heavy duty welding blanket and other fire control system.



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp ET9 860 tex ETG 5.8
Weft ET9 1290 tex ETG 3.87
Construction
Warp 6 ± 0.6 ends/cm 15 ± 1 ends/inch ASTM D 3775-96
Weft 5 ± 0.5 picks/cm 12 ± 1 picks/inch ASTM D 3775-96
Weight 1000 ± 50 g/m2 30 ± 1.5 oz/yd2 ASTM D3776-96
Thickness 1.3 ± 0.1 mm 0.059 ± 0.005 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
152.4 ± 1 cm 60 ± 0.39 inch
182.9 ± 1 cm 72 ± 0.39 inch
Tensile strength
Warp 4300 N/5 cm 491 lbf/inch ASTM D5034-95
Weft 4600 N/5 cm 525 lbf/inch ASTM D5034-95
Temp resistance 5500C 10000F



Key Advantages:



1. Flexible,soft, easy to be fabricated

2. Good tansile strength.

3. Bears temperature 550C degree,800C for short time



Main applications:



1. Removable insulation pads

2. Fabric expansion joints

3. Acoustic insulation



1.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers 01.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers 1

1.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers 21.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers 31.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers 41.3mm Bulk Woven 7628 Fiberglass Cloth Flexible Heat Insulation Roll Engine Exhaust Pipe Covers 5
