Product Details:
Payment & Shipping Terms:
|
| Application: | Welding Protection | Weight: | 18 Oz/yd2 |
|---|---|---|---|
| Working Temperature: | 550 C | Color: | Off-white |
| Yarn: | Bulk | Yarns: | E-glass |
| High Light: | fiberglass welding cloth,welding fire blanket rolls |
||

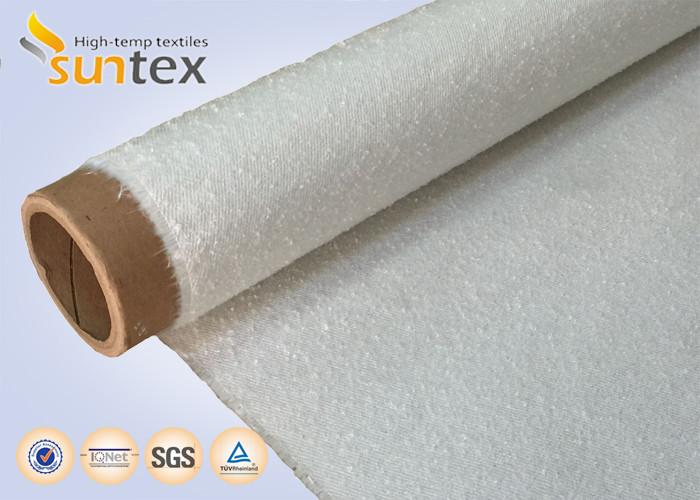

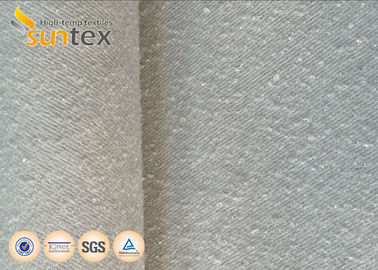

12oz Bulk Fiberglass Welding Blanket Roll Protects Against Sparks Flame Retardant
TGF 410 is a medium weight woven fiberglass fabric. It’s made with 9 micron E-glass yarn to provide economic yet highly effective thermal and acoustic insulation.
This fabric support temperatures to 5500C (10000F). This fabric is designed for the welding protection cover, fire blanket.
Technical Data:
| PROPERTY DATA | |||
| (Metric) | (English) | Test methods | |
| Weave | 4 harness satin | 4 harness satin | |
| Yarn | |||
| Warp | EC9 68 tex * 2 | ECG 75 1/2 | |
| Weft | ET9 400 tex | ETG 12.5 | |
| Construction | |||
| Warp | 11.2 ± 1 ends/cm | 29 ± 2 ends/inch | ASTM D 3775-96 |
| Weft | 6.5 ± 0.5 picks/cm | 16 ± 1 picks/inch | ASTM D 3775-96 |
| Weight | 410 ± 20 g/m2 | 12 ± 0.6 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.8 ± 0.037 mm | 0.031 ± 0.002 inch | ASTM D1777-96 |
| Standard width | 101.6 ± 1 cm | 40 ± 0.39 inch | ASTM D3776-96 |
| 152.4 ± 1 cm | 60 ± 0.39 inch | ||
| 182.9 ± 1 cm | 72 ± 0.39 inch | ||
| Tensile strength | |||
| Warp | N/A | N/A | ASTM D5034-95 |
| Weft | N/A | N/A | ASTM D5034-95 |
| Temp resistance | 5500C | 10000F | |
Advantages:
Main applications:
