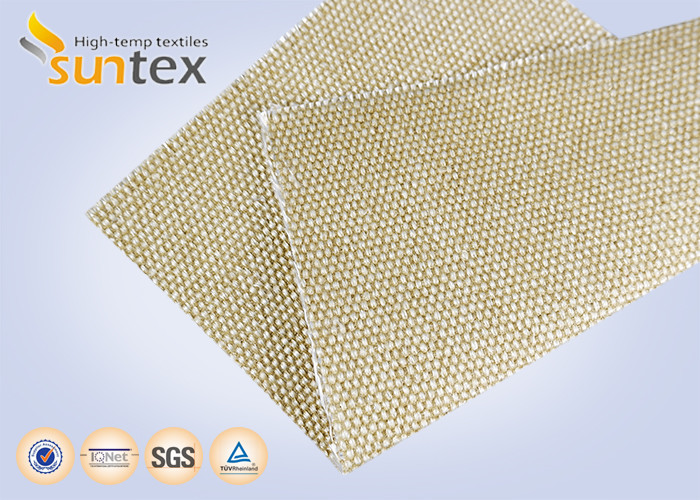

Chemical Resistant High Temperature Fiberglass Cloth / High Heat Resistant Silica Cloth Abrasion
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Suntex |
| Model Number | SL1200 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Fabric rolls packed in cartons loaded on pallets or according to customers' requirements. |
| Delivery Time | 5-20 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 300000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alkali Content | Alkali Free | Yarn Type | E-Glass |
|---|---|---|---|
| Thickness | 1.3mm | Weight | 1200g/m2 |
| Width | From 1m To 2m Or Customized | Weave Type | Twill Woven Or Plain Woven Or Customized |
| Coating | Two Sides Vermiculite Coated | Color | Brown/yellow |
| Base Material | Silica Fiberglass Cloth | Standing Temperature | Up To 1000 Degree C |
| Good Features | High Temperature Resistance, Good Flame Retardant Ability | Properties | Weatherproof, Water Repellent, Good Chemical Resistance |
| Application 1 | Welding And Molten Metal Splash Protection, Heat And Flame Shielding | Application 2 | Chemical Plants, Oil Refineries, Ports, And Industry Fields |
| High Light | high temperature fabric cloth,high temperature fabrics |
||
Product Description
High Temperature Resistant High Silica Fabric High Heat Resistant Silica Cloth Abrasion/chemical Resistant Fiberglass Cloth
Product Description
High silica fiberglass fabric can be effectively used at steady-state temperatures in 1000 degrees to 1700 degrees without deterioration of the formation of cristobalite structure. The silica fabric has been specially developed to use in the applications to protect an extreme temperature environment. They also have excellent chemical resistance and electrical insulation properties.
| BASE FABRIC | Base fabric style No. SL1200 | ||
| (Metric) | (English) | Test methods | |
| Weave | 12 H Satin | 12 H Satin | |
| Yarn | |||
| Warp | EC9 136 1*2 | ECG 37 1/2 | |
| Weft | EC9 136 1*2 | ECG 37 1/3 | |
| Construction | |||
| Warp | 19 ± 1 ends/cm | 46 ± 2 ends/inch | |
| Weft | 14 ± 1 picks/cm | 33 ± 2 picks/inch | |
| Weight | 1200 ± 30 g/m2 | 36± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.4 ± 0.08 mm | 0.05± 0.003 inch | ASTM D1777-96 |
|
|
|||
| COATED FABRIC | Coating style No.VE216-5022 | ||
| Coating | Coated with vermiculite , two sides | ||
| Weight | 1250 ± 30 g/m2 | 36.76 ± 0.88 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.45 ± 0.05 mm | 0.055 ± 0.0019 inch | ASTM D1777-96 |
| Color | brown | ||
| Flame resistance | YES | NF 92507 | |
| Temp resistance |
The maximum working temperature at 1000 0C The peak Temp.(melt point) 1700 0C |
||
product main application
-Insulation jackets, covers, mattress
-Fabric expansion joints
-Fabric ductwork connector
-Fire doors & Fire curtains
-Welding/fire blankets
-Other fire control systems
