Product Details:
Payment & Shipping Terms:
|
| Weight: | 470g/sqm | Width: | 1000mm 1520mm 1550m 2000m |
|---|---|---|---|
| Thickness: | 0.43mm | Color: | Silver Grey |
| Weave: | 4H Satin | Temperature Resistance /Working Temperature: | 550℃ 1000℉ |
| Coated: | PU Two Sides | Fiberglass: | C-Glass |
| High Light: | PU Coated Glass Fabric,high temperature applications,smoke and fire curtains |
||

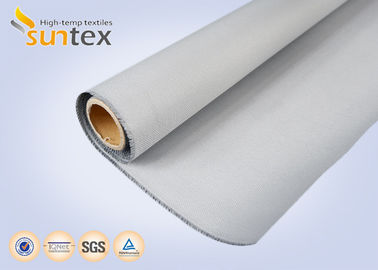

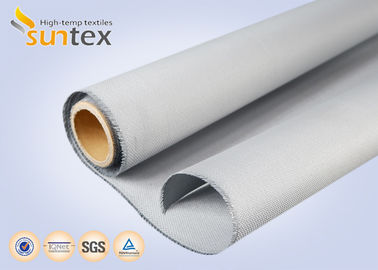

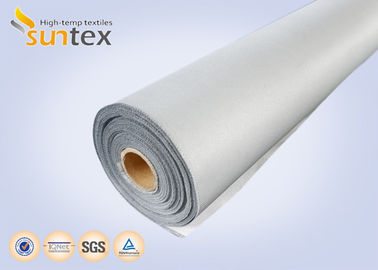

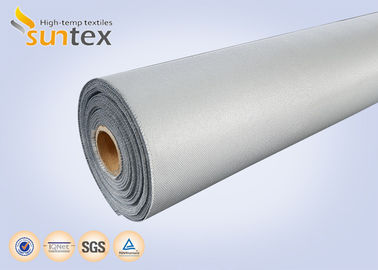

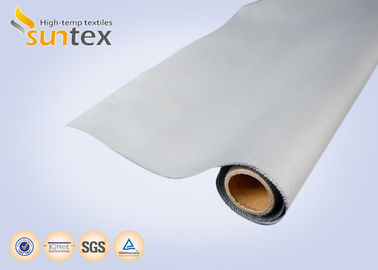

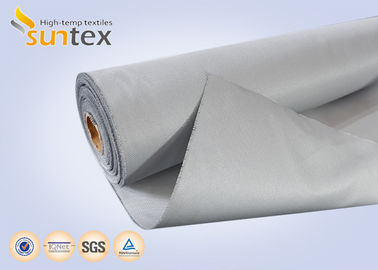

Thermal Insulation Fabric Polyurethane Coated Fiberglass Fabric M0 Smoke Barrier Fabric 0.43mm
Introduce
GF430C-PU213-2031 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer,which provides a heat reflecting surface as well as other properties for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems. Other applications are insulation covers where can be used as an attractive alternative to foil faced laminates for less demanding end uses.
Advantage
1. M0 certified fire resistance.
2. Silver grey. Various color available.
3. Easy to be used, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Data
| Weight | 470 g/m2 |
| Thickness | 0.43 mm |
| Width | 1000mm 1520mm 1550mm 2000mm |
| Coated | PU |
| Color | Silver Grey |
| Fire resistance | M0 |
| Working temperature | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave | 4H Satin |
| Yarn warp | EC9 68 1*2 |
| Yarn weft | EC9 68 1*2 |
| Construction warp | 18±1 ends/cm |
| Construction weft | 12.6±1 ends/cm |
| Fiberglass | C-Glass |
Applications
Smoke curtain
Fire blanket
Expansion joint
Reusable thermal insulation cover
Thermal insulation pad
Air duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
