EN-13501 Certified Alkali Free High Temperature Resistant Fireproof Fiberglass Fabric for Fire Curtain Fabric

Place of Origin:Jiangsu, China
Brand Name:Suntex
Model Number:Fire Curtains fabric
Minimum Order Quantity:100 Square Meter/Square Meters
Payment Terms:L/C,D/P,T/T,etc
Supply Ability:300000sqm/month
Product Details
Highlight:

Curtains Fireproof Fiberglass Fabric

,

Fire Curtains Fiberglass Fabric

,

Smoke Curtains Fiberglass Fabric

Thickness: 0.4mm To 2mm
Weight: 200 G/sqm To 2000 G/sqm
Temperature Resistance: 500°C To 1200°C
Coating: Polyurethane, Aluminum, Silicone, Silica, Or Graphite
Weave Type: 8H Satin Or 4H Satin
Yarn Tape: E-glass
Product Description
EN-13501 Fireproof Fiberglass Fabric for Fire Curtains & Smoke Curtains

Fire curtains are designed to work in combination with automatic sprinkler systems and smoke vents to control fire and smoke, limit property damage, and enable safe evacuation in the event of a fire. Common fire curtain types include static fire containment curtains, automatic fire curtains, flexible commercial fire and smoke curtains, aluminized curtains for heat shielding, welding curtains for spark protection, high-temperature curtains, elevator smoke curtains, draft curtains, vertically deploying fire and smoke curtains, folding fire and smoke curtains, and safety curtains.

As a fireproof insulation cloth manufacturer with more than 20 years of experience, Suntex is committed to creating safer, more economical, and environmentally friendly fireproof curtain materials. Suntex fire curtain materials range from light duty to high duty, offering 60-minute to 180-minute protection, and fully meet EN13501 requirements. The base fabrics are E-glass fabric, E-glass fabric with stainless steel wire reinforcement, or high silica fabric. Coatings include PU, silicone, aluminum, silica, or graphite. These coatings are formulated with inorganic materials and will not produce hazardous outgassing. Suntex products have been tested to ensure they exceed nationally recognized fire codes. Suntex fabrics are successfully used by many fire curtain brands, serving numerous customers and protecting their property and lives.

Key Features
  • High temperature resistance up to 1200°C.
  • Strong fire resistance with good smoke and gas sealing.
  • Good tear strength, high strength, and excellent puncture resistance.
  • High stability and durable construction.
  • Chemical resistance, oilproof, and waterproof.
  • No harm to the human body; asbestos-free and halogen-free.
  • Environmentally friendly.
Applications

Fireproof curtains, welding curtains, smoke curtains, fire barriers, splash shields, fire containment blankets, fire containment covers, removable insulation blankets, expansion joints, and more.

Fireproof fiberglass fabric sample showing coated textile material used for industrial fire and smoke curtains
Specifications
Item Thickness (mm) Weight (g/sqm) Weave Coating Color Temperature Resistance
PU213-2005 0.4 460 4H satin Polyurethane Grey 500°C (1000°F)
PU213-2036 0.65 710 8H satin Polyurethane Silver grey 700°C
SI240-1222 0.65 830 8H satin Silicone White 750°C
SI254-1160 0.75 850 8H satin Silica, silicone Red 1000°C
M28G-7007 0.8 1060 8H satin Polyurethane, graphite Black, grey 880°C
SI233-1015 0.42 560 4H satin Silicone Silver grey 700°C

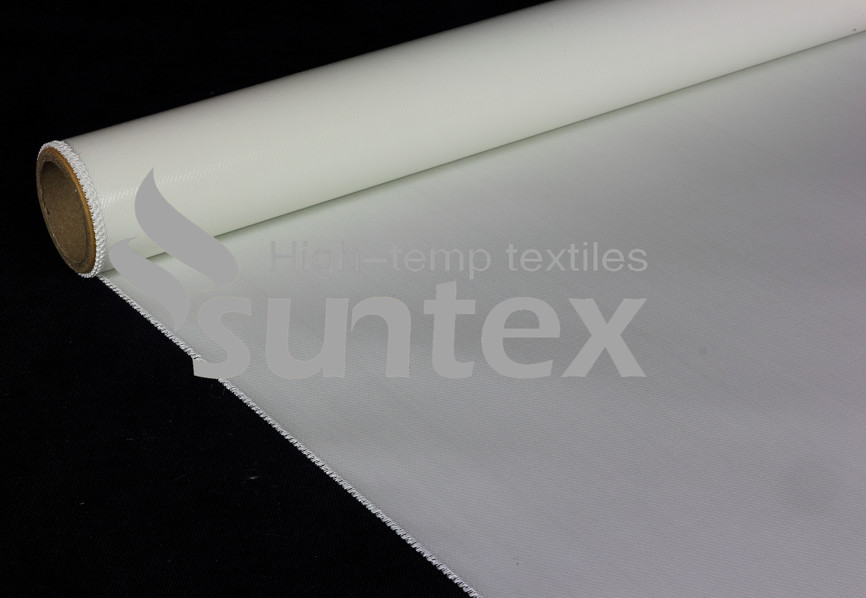

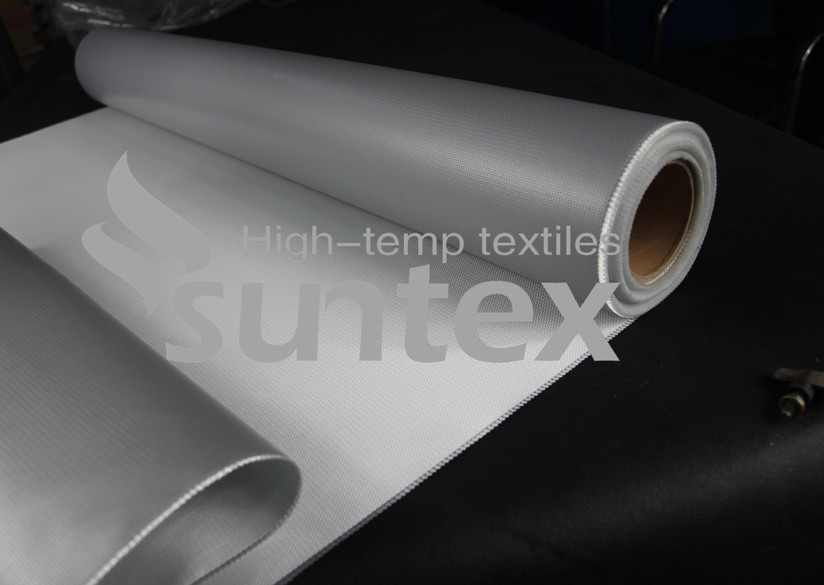

Close-up view of high temperature resistant fiberglass fabric with coating, suitable for fire curtain and smoke curtain applications
