High Temperature Fireproof Silicone Coated Fiberglass Fabric Fire Curtain – Calcium Silicate Coated Fiberglass Fabric 1100g/m², 700°C Resistant, for Smoke Curtains, Fire Doors & Insulation Covers

Place of Origin:China
Brand Name:SUNTEX
Model Number:TGF1000P-CS233-5006
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C,Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

High Temperature

,

Silicone Coated Fiberglass Fabric

,

Silicone Coated Fiberglass Fabric

Coated Weight: 1100 G/m²
Thickness: 1.5 Mm
Width: 1.5 Meter
Roll Length: 50 Meter
Max Temperature: 700°C
Coating Material: Calcium Silicate
Product Description
Product Overview

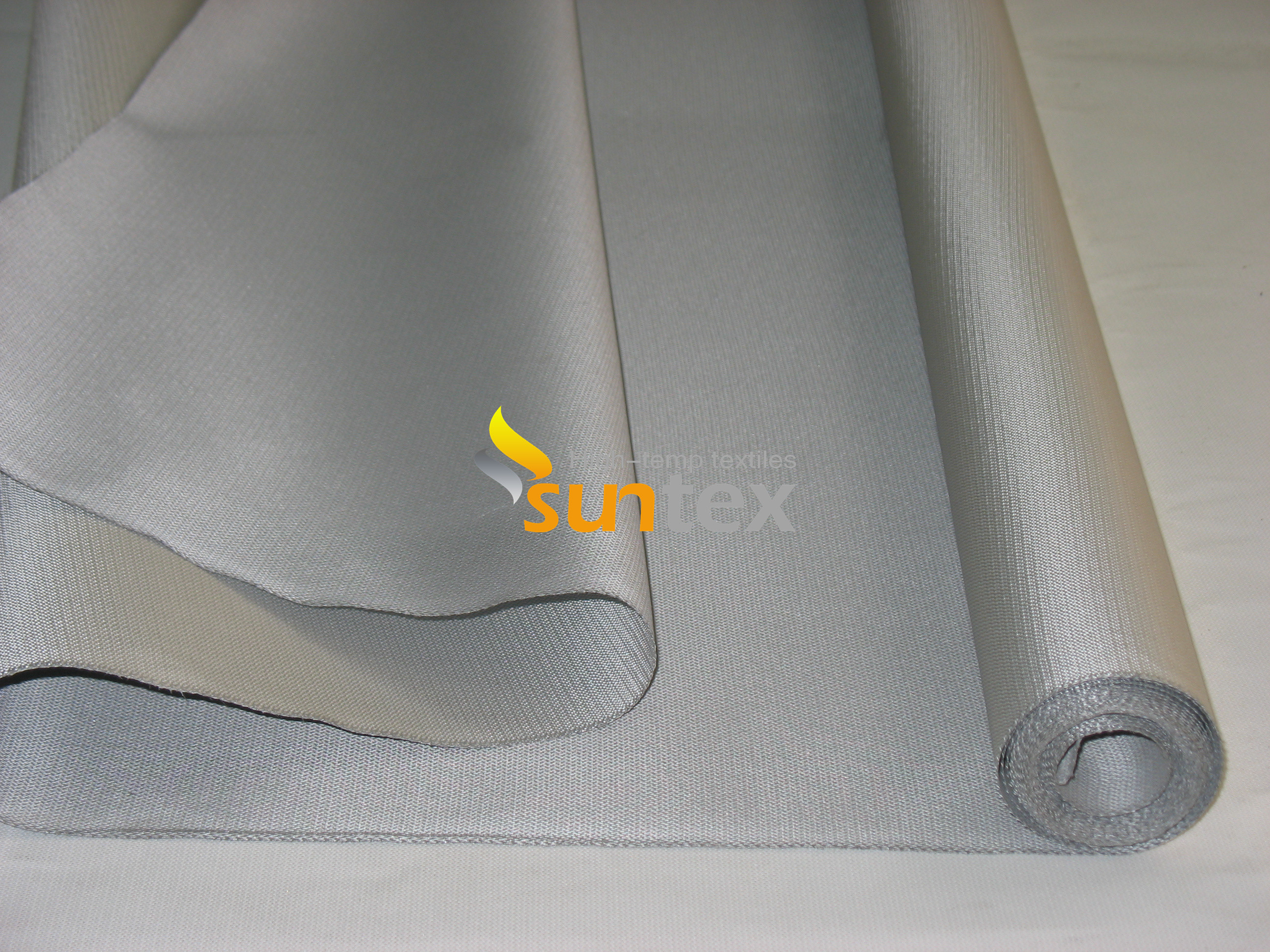

The TGF1000-CS233-5006 is a heavy-weight woven fiberglass fabric featuring a 1000 g/m² base weight and a 1100 g/m² coated weight. Both sides are treated with a specially formulated calcium silicate coating, delivering a high-temperature-resistant surface up to 700 °C along with excellent fiber fraying resistance. Supplied in grey, the fabric is available in 1000 g/m² and 1200 g/m² versions with customizable colors.

Key Specifications
Base Fabric Weight 1000 g/m²
Coated Weight 1100 ± 50 g/m²
Thickness 1.5 ± 0.05 mm
Maximum Temperature Resistance Up to 700 °C (1300 °F)
Coating Calcium silicate, applied to both sides
Standard Color Grey (custom colors available)
Available Versions 1000 g/m² and 1200 g/m²
Application Scenarios

This calcium silicate coated fiberglass fabric is engineered for demanding high-temperature protection across industrial and commercial environments. Typical applications include:

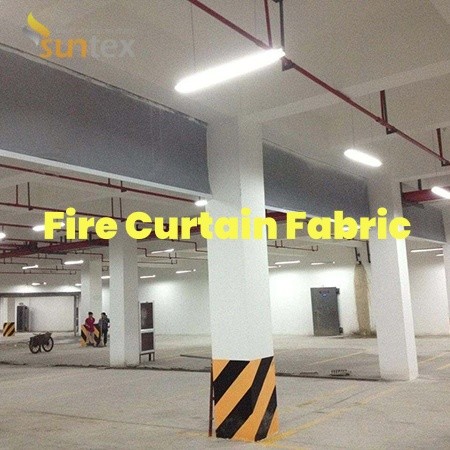

  • Smoke and fire curtains
  • Fire doors
  • Expansion joints and flexible compensators
  • Blinds and cavity wall fire barriers
  • Removable insulation mattresses, jackets, and pads
  • Insulation covers and welding blankets

Suitable for industrial plants, commercial buildings, and fire control systems requiring reliable high-temperature protection.

Product Advantages
  1. High temperature resistance up to 700 °C for demanding fire protection applications.
  2. Excellent anti-abrasion properties for a long service life.
  3. Easy to cut, sew, and fabricate for flexible manufacturing.
  4. Calcium silicate coating improves fiber fraying resistance.
  5. High-quality, cost-effective solution available in 1000 g/m² and 1200 g/m² options.
Frequently Asked Questions
Q: What is the maximum temperature resistance?

A: Up to 700 °C (1300 °F).

Q: What is the coated weight and thickness?

A: 1100 ± 50 g/m² and 1.5 ± 0.05 mm.

Q: Can colors be customized?

A: Yes, colors can be customized.

Q: Is the fabric easy to fabricate?

A: Yes, it is easy to cut, sew, and fabricate.
