Double Sides Fireproof Silicone Fiberglass Fabric High Temperature Thermal Insulation Silicone Coated Fiberglass Cloth
Place of Origin:Jiangsu, China
Brand Name:Suntex
Model Number:SL600-SI254-1160
Minimum Order Quantity:500 square meters
Price:$10.50 - $11.00
Payment Terms:L/C,T/T,D/P
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:
silicone coated fiberglass fabric fireproof
,heat resistant fiberglass fabric 850g/m2
,fireproof silicone fiberglass fabric heavy duty
Base Material:
100% Fiberglass
Yarn Type:
E-Glass
Weave Type:
Twill Woven Or Customized
Width:
1m 1.2m 1.5m 1.8m 2m Or Customized
Weight:
850g/m2
Thickness:
0.75mm
Standing Temperature:
-70~260℃
Alkali Content:
Alkali Free
Surface Treatment:
Silicon Coated
Color:
Red,grey,black,green,and Customed
Coating:
One Or Two Side Silicone Rubber
Type:
High Silica Fiberglass Cloth
Good Features:
Non-stick,heat Resistant, Waterproof, Fireproof
Application:
Heat Insulation, Fireproof, High Temperature Resistant
Product Description

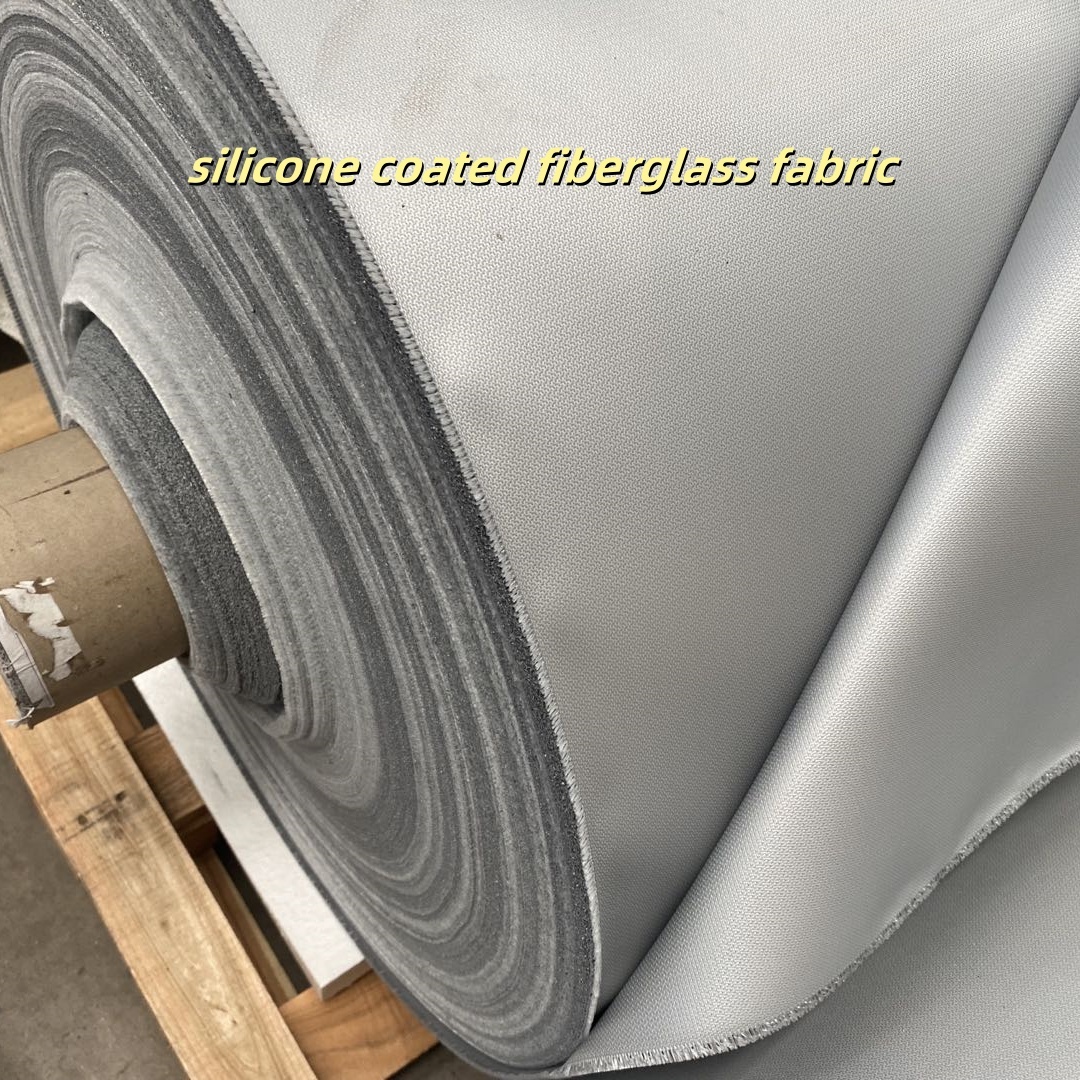

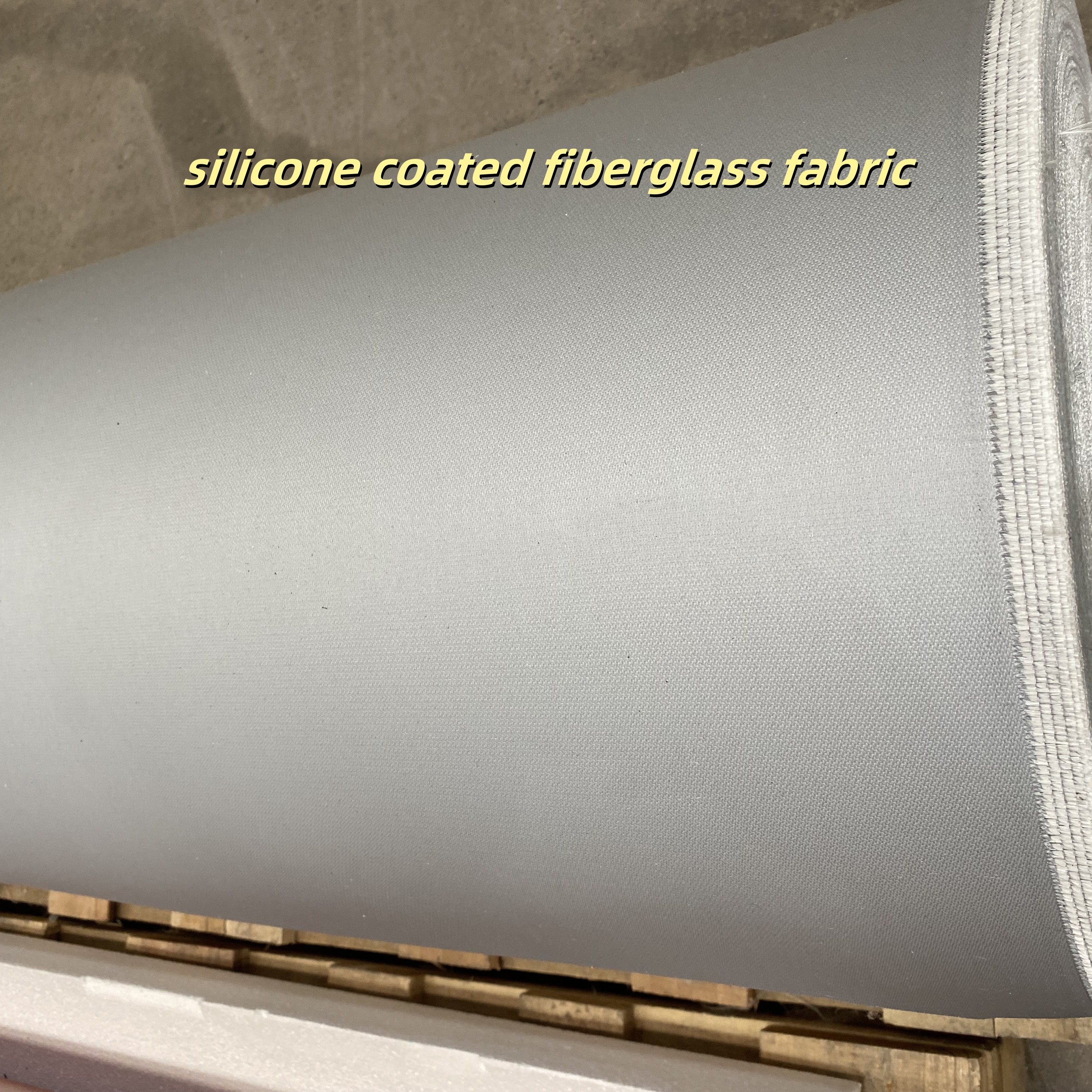

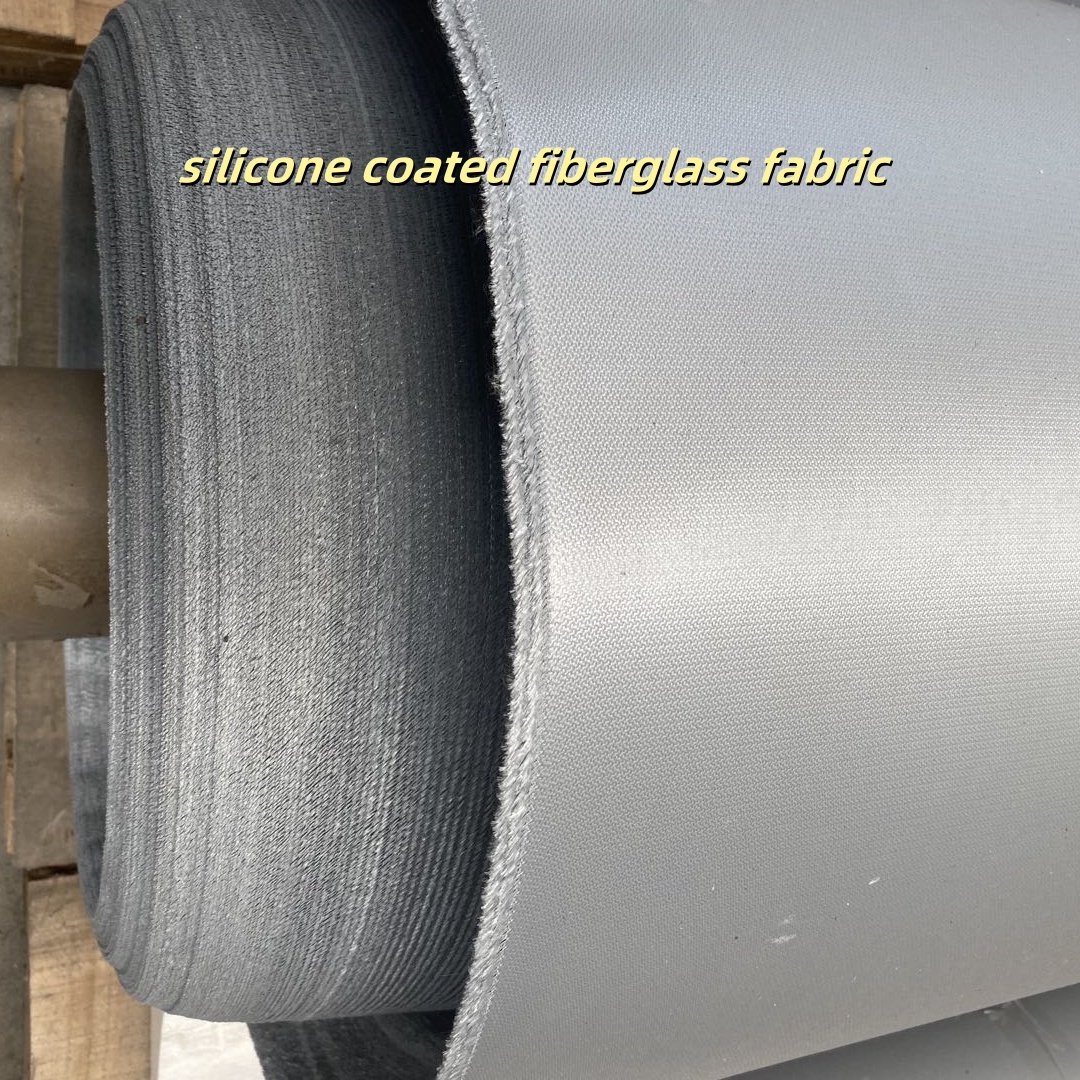

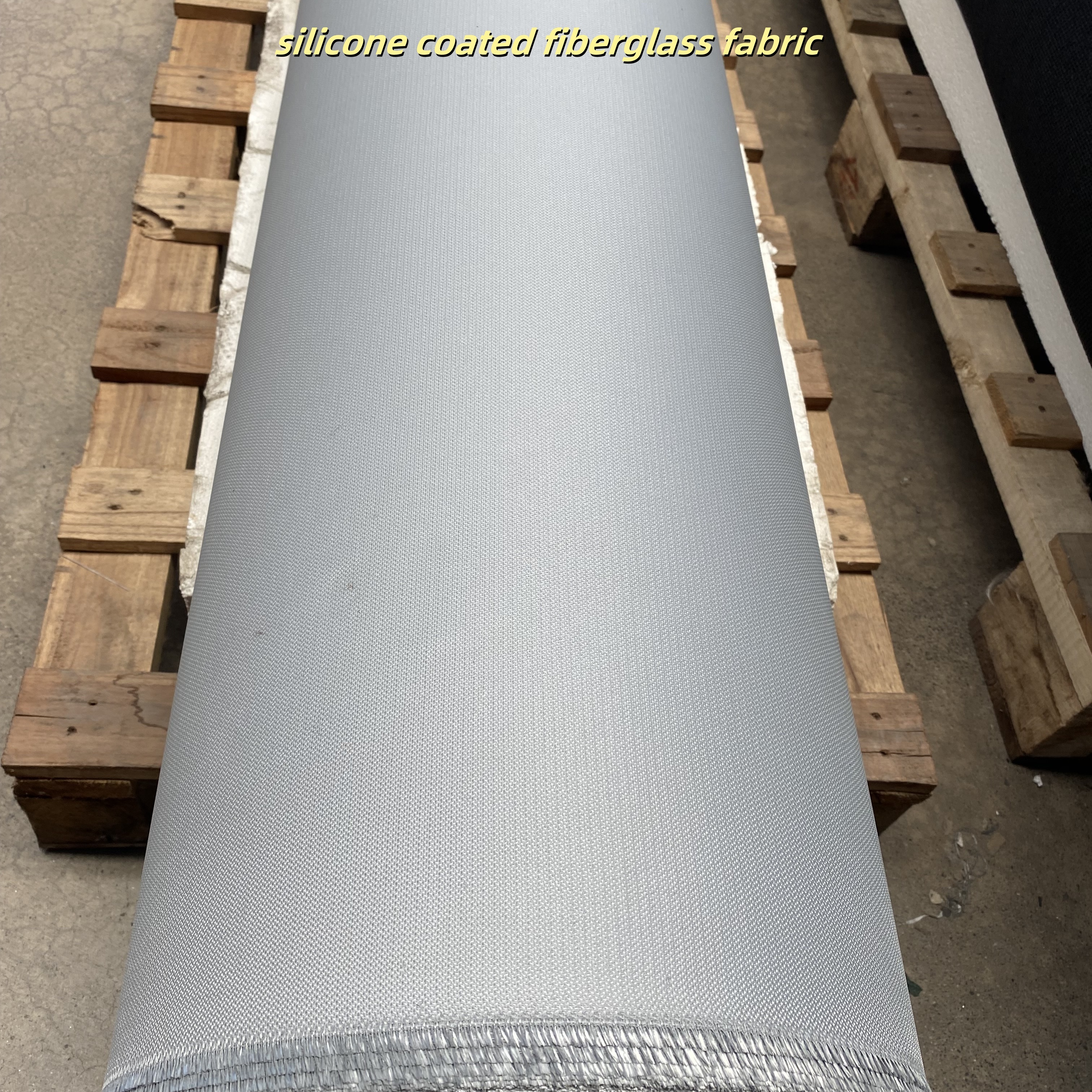

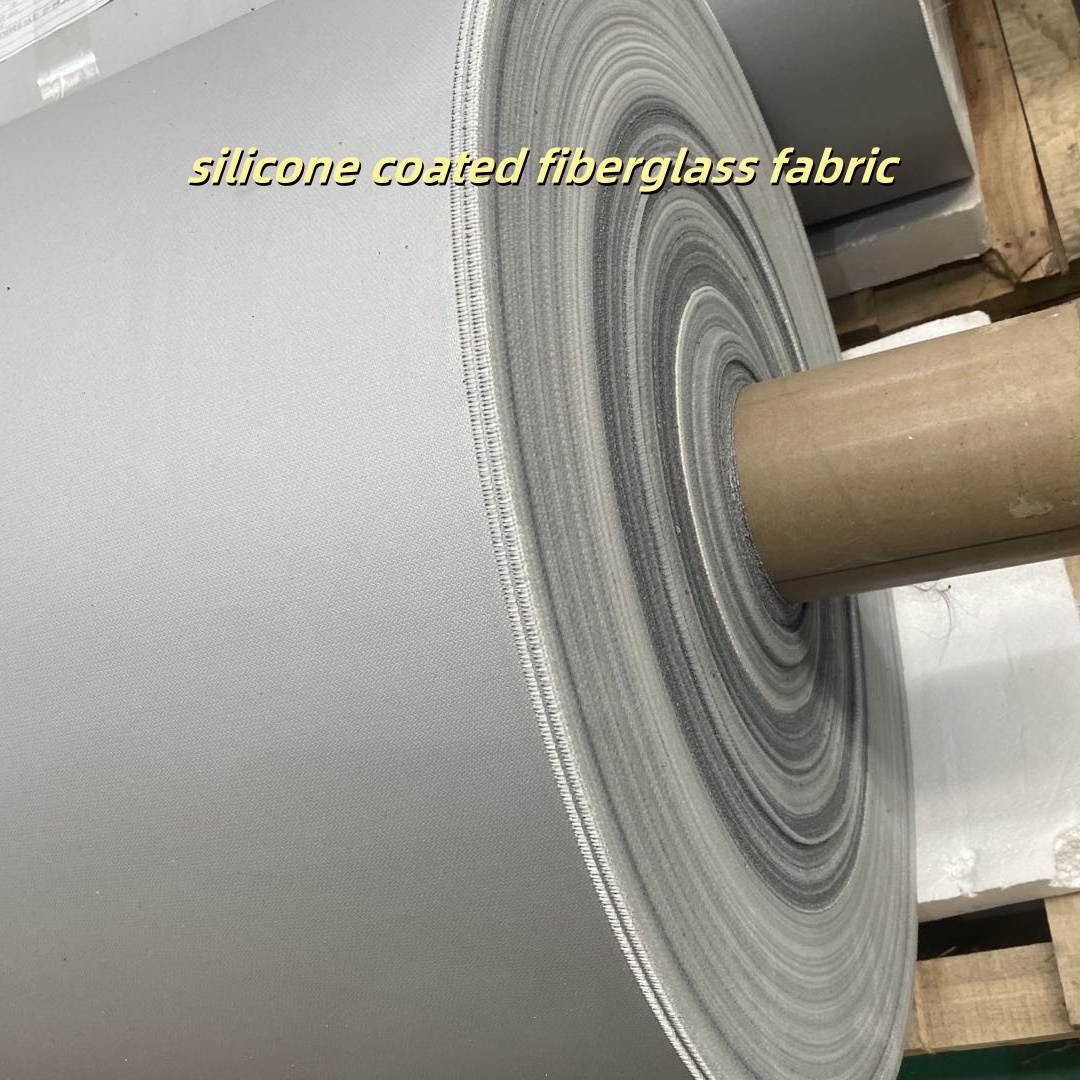

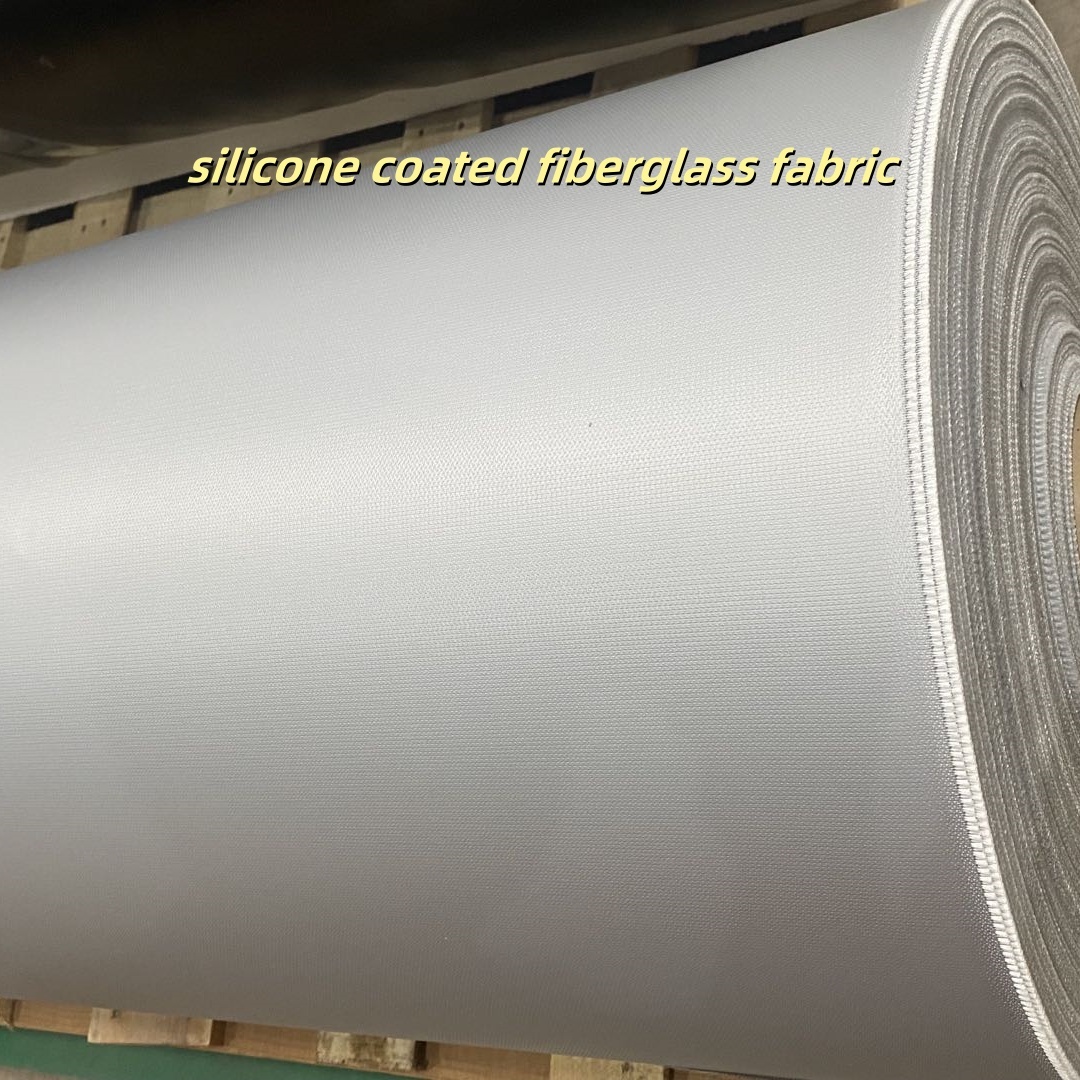

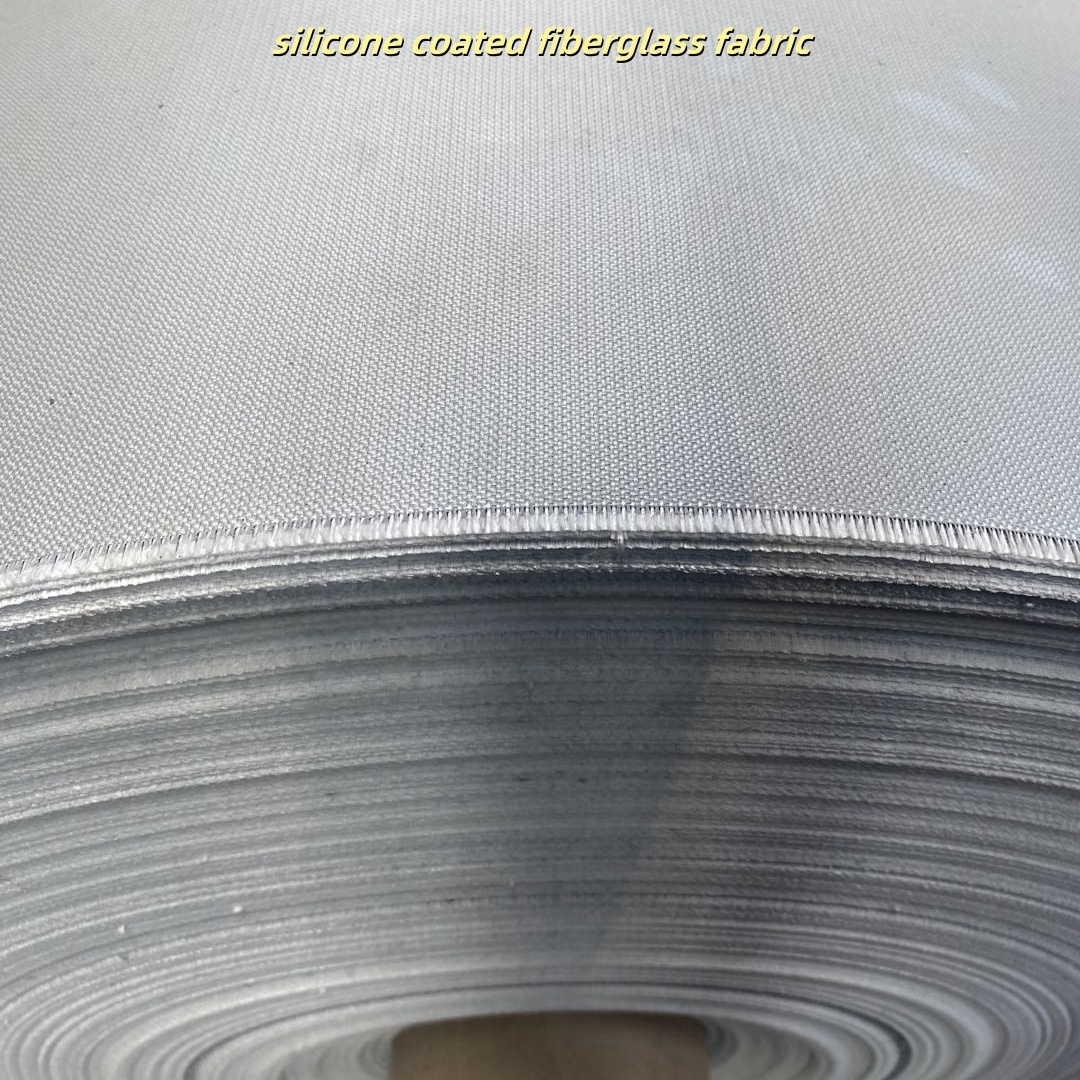

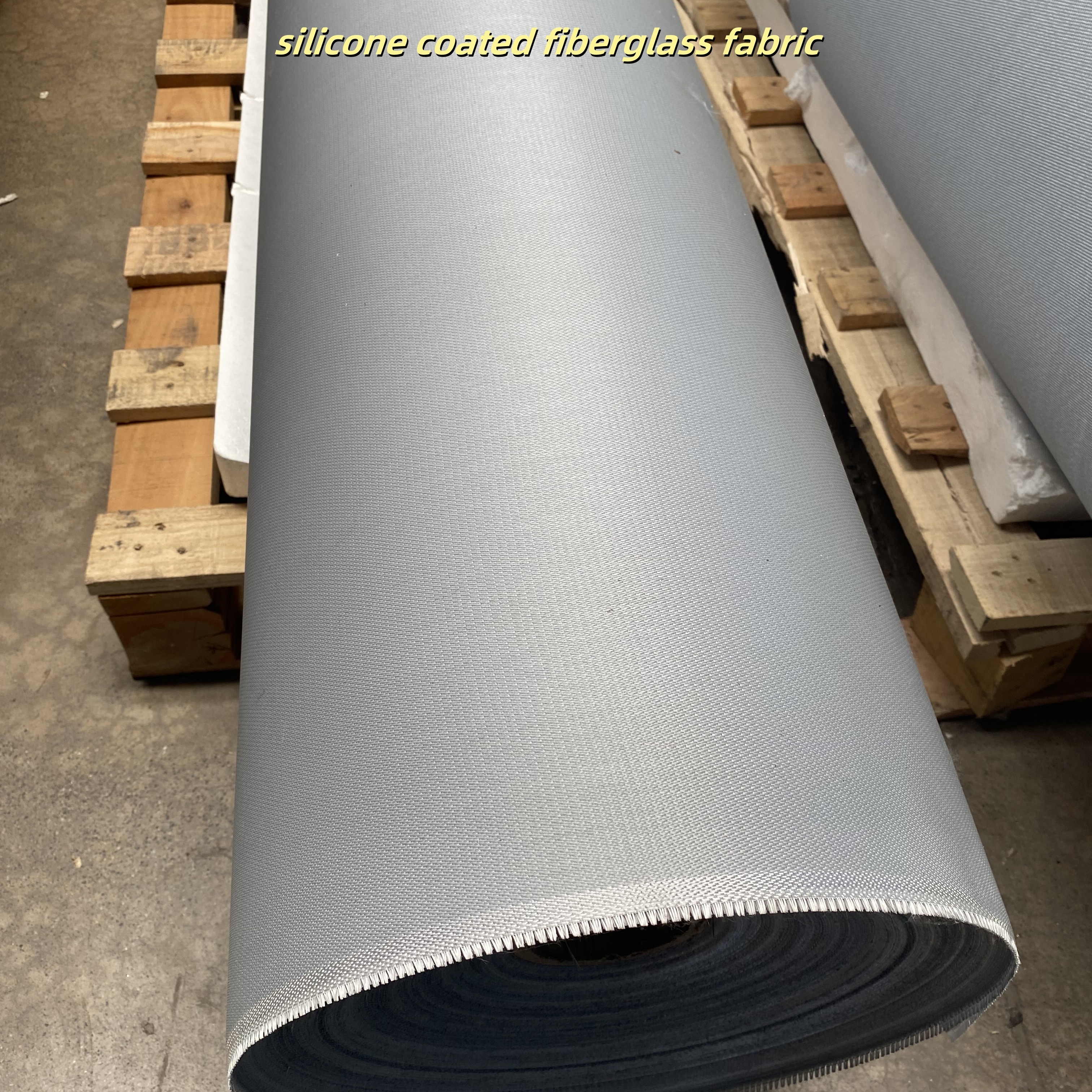

High Silica Fabrics Fire Proof Silicone Rubber Coated Fiberglass Fabric Cloth

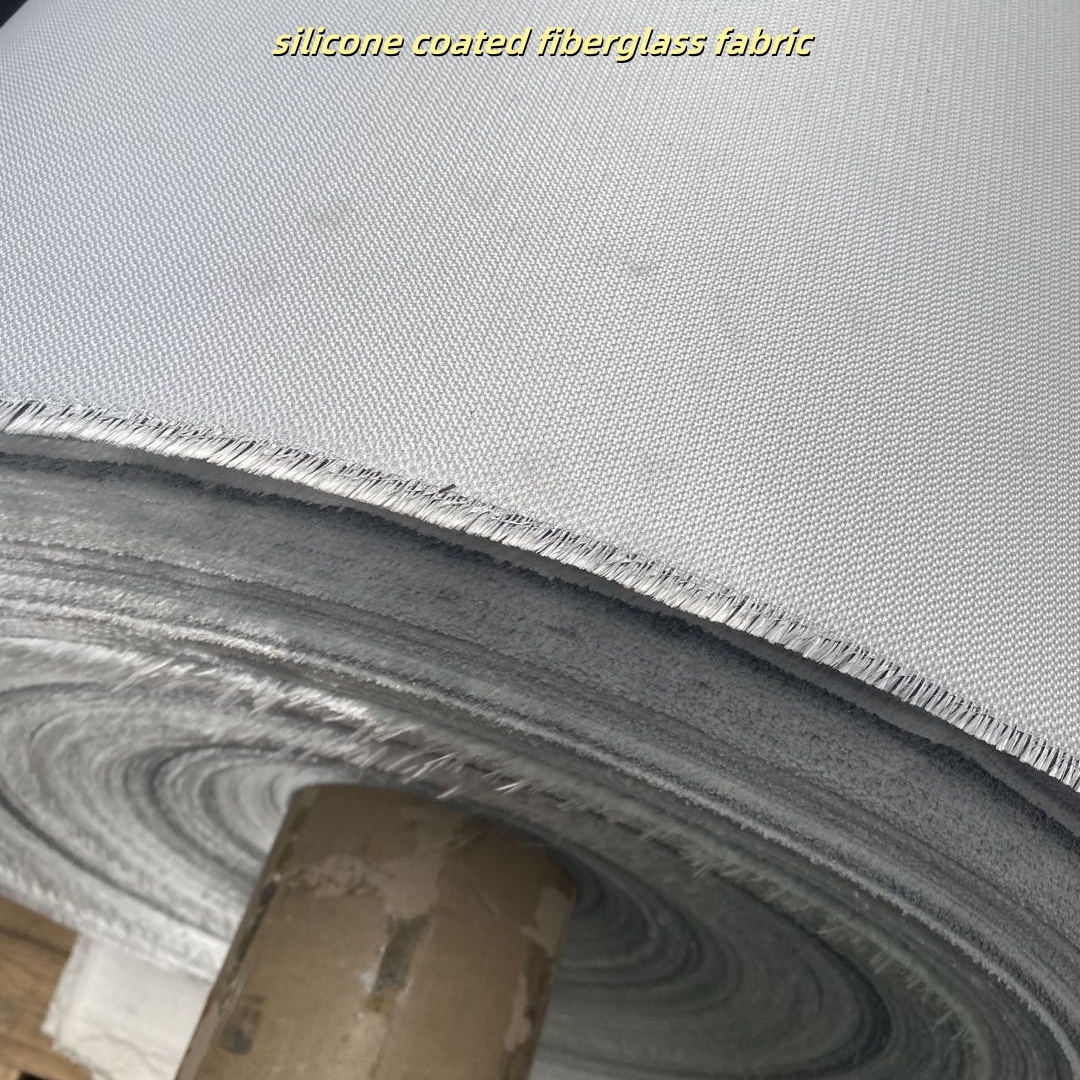

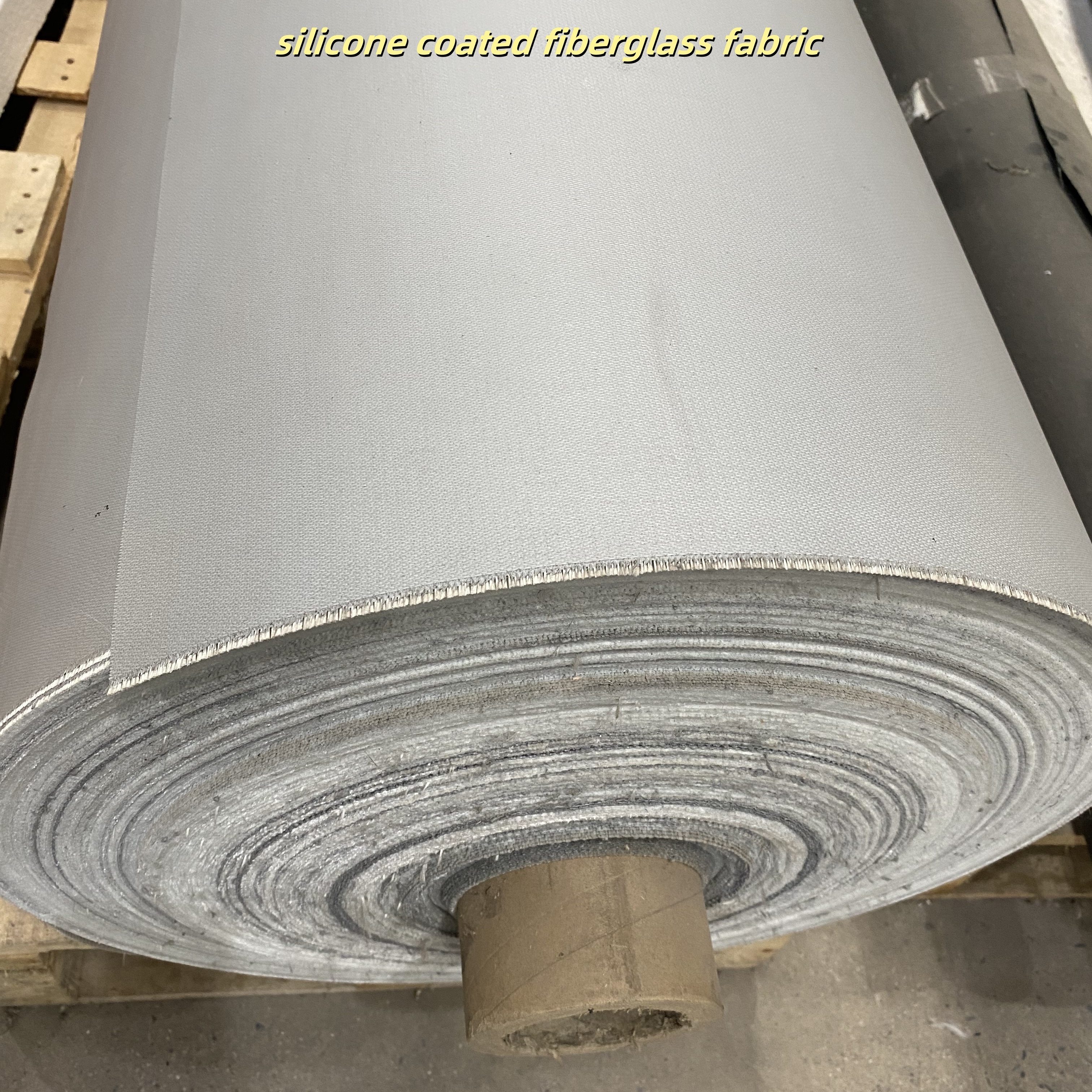

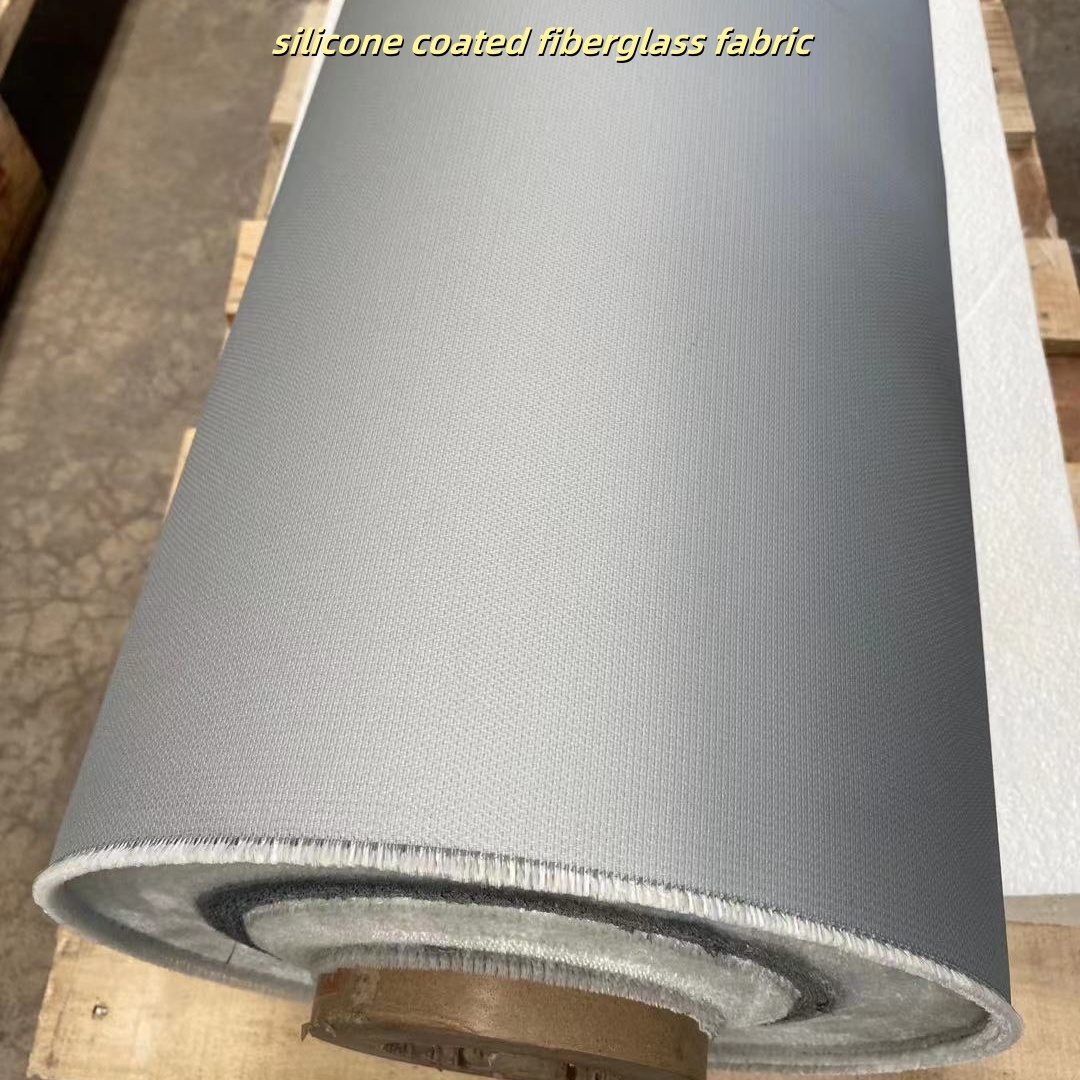

Silicone coated fiberglass cloth is a fiberglass cloth that is coated with organic silicone rubber and has the properties of temperature resistance, anti-corrosion, high strength, fireproof, and so on.
Properties:
1, Good performance on resistant high temperature and low temperature, -50°C-550°C;
2, Chemical corrosion resistant, fireproof, oilproof, waterproof;
3, High strength;
4, Ozone, oxide, light and weather aging resistance;
| BASE FABRIC | Base fabric style No. SL600 | ||
| (Metric) | (English) | Test methods | |
| Weave | 8H Satin | 8H Satin | |
| Yarn | |||
| Warp | EC9 136 1﹡2 | ECG 37 1/2 | |
| Weft | EC9 136 1﹡2 | ECG 37 1/3 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 46 ± 2 ends/inch | |
| Weft | 13 ± 1 picks/cm | 33 ± 2 picks/inch | |
| Weight | 600 ± 30 g/m2 | 18 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.65 ± 0.06 mm | 0.025 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. SI254-1160 | ||
| Coating | Silicon coated,2 sides | ||
| Weight | 850 ± 30 g/m2 | 25 ± 0.88 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.75 ± 0.05 mm | 0.029 ± 0.0019 inch | ASTM D1777-96 |
| Color | RED | ||
| Flame resistance | YES | NF 92507 | |
| Temp resistance |
Working temperature for basic fabric at 10000C Working temperature for silicone coating at 2600C |
||
