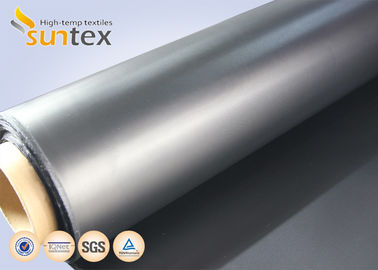

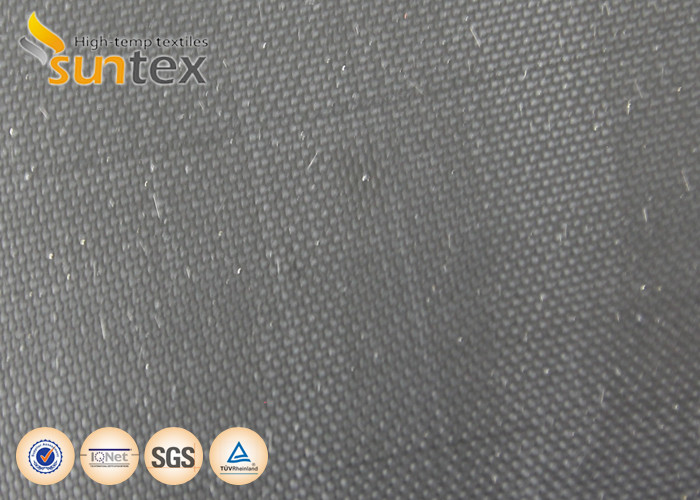

Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint

Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint
Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint

Large Image :  Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Model Number: GF431P-NE245-4005

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Temperature Resistance: -50 C To 550 C Weight: 600 G/m2
Thickness: 0.45 Mm Coating: Neoprene Rubber
Width: 1.5m / 10cm / 15cm OEM Color: Black
Roll Length: 50 Meter Or OEM Character: Chemical Resistance
Application: Flexible Connector
High Light:

neoprene coated fiberglass

,

silicone impregnated fiberglass cloth

Stress Relief vibration Black Fabrics Neoprene Fiberglass Cloth For Expansion Joint



Description:



Due to excellence and quality centric approach, we have carved niche in the industry by presenting a wide collection of Neoprene coated glass Fabric. These fabrics are designed by adroit executives by making use of top-notch grade yarns, at par with the advancements of the market. The presented fabric is rigorously well-reviewed against different limitations of quality by skilled quality examiners to ensure its quality.



Suntex Neoprene Coated Fiberglass Cloth is a very durable cloth which can resist very high temperatures up to 180oC short duration working temperature and 120oC continuous working temperature. Aside from having high endurance and temperature resistance, it also has an impressive resistance to corrosion and oil spills, and is weather proof. This makes it perfect for binding pipes and use in industrial fire screens.



Parameter List:



BASE FABRIC Base fabric style No. GF431P, Coating Style No. NE245-4005
  (Metric) (English) Test methods

Coating Neoprene rubber , two sides
Weight 600 ± 30 g/m2 17.35 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.47 ± 0.02 mm 0.019 ± 0.0008 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Neoprene rubber coating up to 1500C (3600F)



Typical Applications:



Air condition systems

Flexible Connector

Expansion Joint Ducts

Insulation Sleeves

Fabric Shield



Advantage



- Stress relief for piping and ducting systems

- Absorbs thermal growth and shock

- Isolates mechanical vibration

- Simple retrofit into existing ducting system

- Cost-effective solution to compensate for movement in ducting systems
