Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint

Good quality Fire Resistant Fiberglass Fabric for sales
Good quality Fire Resistant Fiberglass Fabric for sales
I'm Online Chat Now

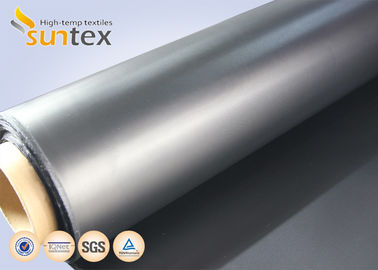

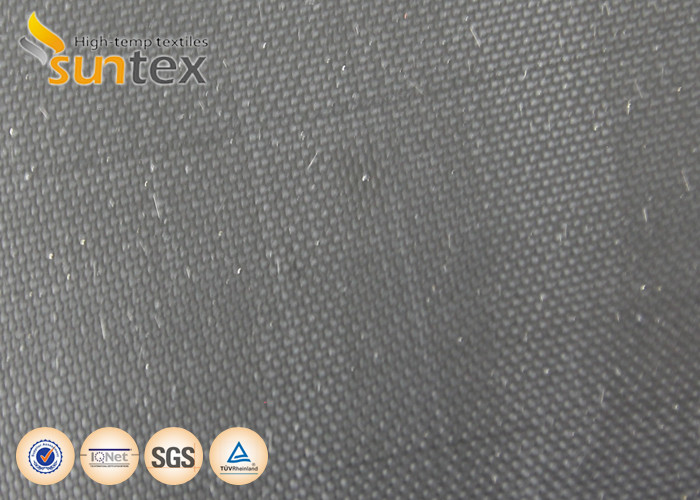

Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint

China Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint supplier
Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint supplier Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint supplier

Large Image :  Stress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Certification: ISO9001; SGS M0 Certificate
Model Number: GF431P-NE245-4005

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Contact Now
Detailed Product Description
Temperature Resistance: -50 C To 550 C Weight: 600 G/m2
Thickness: 0.45 Mm Coating: Neoprene Rubber
Width: 1.5m / 10cm / 15cm OEM Color: Black
Roll Length: 50 Meter Or OEM Character: Chemical Resistance
Application: Flexible Connector

Stress Relief vibration Black Fabrics Neoprene Fiberglass Cloth For Expansion Joint



Description:



Due to excellence and quality centric approach, we have carved niche in the industry by presenting a wide collection of Neoprene coated glass Fabric. These fabrics are designed by adroit executives by making use of top-notch grade yarns, at par with the advancements of the market. The presented fabric is rigorously well-reviewed against different limitations of quality by skilled quality examiners to ensure its quality.



Suntex Neoprene Coated Fiberglass Cloth is a very durable cloth which can resist very high temperatures up to 180oC short duration working temperature and 120oC continuous working temperature. Aside from having high endurance and temperature resistance, it also has an impressive resistance to corrosion and oil spills, and is weather proof. This makes it perfect for binding pipes and use in industrial fire screens.



Parameter List:



BASE FABRIC Base fabric style No. GF431P, Coating Style No. NE245-4005
  (Metric) (English) Test methods

Coating Neoprene rubber , two sides
Weight 600 ± 30 g/m2 17.35 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.47 ± 0.02 mm 0.019 ± 0.0008 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Neoprene rubber coating up to 1500C (3600F)



Typical Applications:



Air condition systems

Flexible Connector

Expansion Joint Ducts

Insulation Sleeves

Fabric Shield



Advantage



- Stress relief for piping and ducting systems

- Absorbs thermal growth and shock

- Isolates mechanical vibration

- Simple retrofit into existing ducting system

- Cost-effective solution to compensate for movement in ducting systemsStress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion JointStress Relief Vibration Black Neoprene Coated Fiberglass Fabric For Expansion Joint
