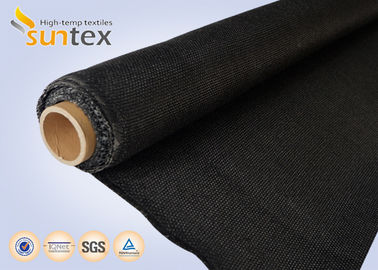

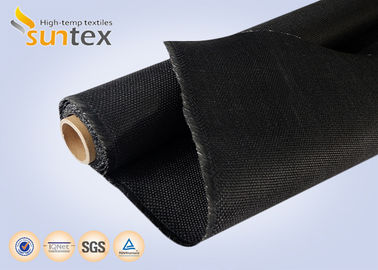

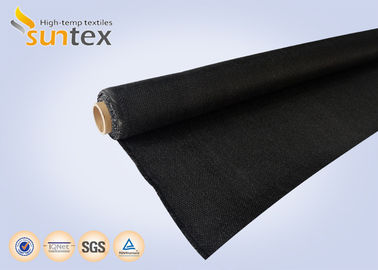

Air Distribution Ducts 0.21mm Black Fire Retardant Fabric Fiberglass Rolls Polyurethane 2 Sides Coating

large.img.alt
large.img.alt
video play

Large Image :  Air Distribution Ducts 0.21mm Black Fire Retardant Fabric Fiberglass Rolls Polyurethane 2 Sides Coating

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: TGF1000P-PU225-2056
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Unit Weight: 32.35 Oz/sq.y Standard Width: 1000mm 1520mm
Standard Thickness: 0.047 Inch Colour: Black
Coating Temperature Resistance: 180℃ 350℉ Basic Fabric Temperature Resistance: 550℃ 1000℉
Coating: Polyurethane 2 Sides
High Light:

coated fiberglass fabric

,

fireproof fiberglass cloth

Fiberglass Welding PU Coated Fiberglass Fabric Air Distribution Ducts 0.21mm Fiberglass Insulation Rolls



Introduce



TGF1000P-PU225-2056 is a heavy weight texturized fiberglass fabric with a specially formulated polyurethane aluminum polymer, provide good hand, minimal dust, and ease of application. It’s used for welding blanket,flexible expansion joint, removable jackets and other types of fire control systems.



Advantage



1. Well certified fire resistance.

2. End users can choose the favority face.

3. Easy to be applied, sewn and fabricated.

4. Well abrasion resistance property.

5. Well tensile strength.

6. Nominal Thickness, unit weight, pattern, all can be customized base on your use method.



Data



Total weight 32.35 oz/y2
Standard Thickness 0.047 inch
Standard width 1000mm 1520mm
Coating Polyurethane
Colour of coating Black
Fire resistance Well
Coating temperature resistance PU coating 180 ℃
Basic fabric working temperature Basic fabric 550 ℃
Weave/Pattern Plain
Fiberglass E-glass Texturized Woven Fiberglass


Applications



Fire curtain

Welding blanket

Compensator

Removable heat insulation kit

Heat insulation mat

Fabric duct



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides



Air Distribution Ducts 0.21mm Black Fire Retardant Fabric Fiberglass Rolls Polyurethane 2 Sides Coating 0Air Distribution Ducts 0.21mm Black Fire Retardant Fabric Fiberglass Rolls Polyurethane 2 Sides Coating 1
