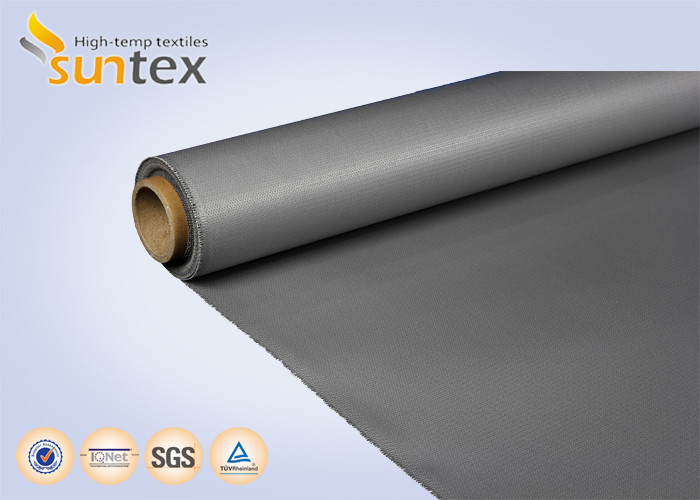

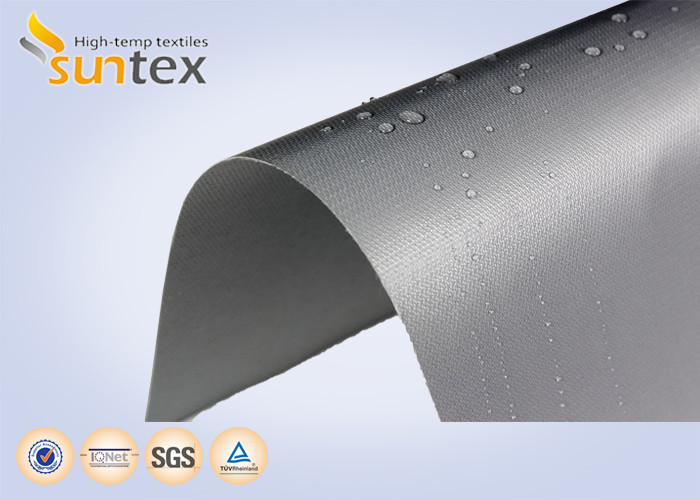

Two Side Silicone Impregnated Fiberglass Fabric For Insulation Pads

large.img.alt
large.img.alt
video play

Large Image :  Two Side Silicone Impregnated Fiberglass Fabric For Insulation Pads

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: GF430P-SI233-1015
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Weight: 560 G/sqm Thickness: 0.42 Mm
Color: Silver Grey Yarn Tape: E-glass
Width: 1.5 Meter Coating: Silicon Rubber On Two Side
Standing Temperature: From -50℃ To 550℃ Origin: Hubei, China
Roll Length: 50 Meter
High Light:

silicone impregnated fiberglass fabric

,

heat reflective fabric

Two Side Silicone Impregnated Fiberglass Fabric For Insulation Pads



Description:



Our fiberglass fabrics are widely used for thermal insulation, acoustic insulation, and for protection from heat and fire. These woven fiberglass fabrics support operating temperatures up to 1000°F / 540°C and peak temperatures up to 1300°F / 700°C. They are inherently heat and flame retardant fabrics made from inorganic materials so they will not produce hazardous out-gassing.



Suntex fiberglass fabrics are available with a variety of high temperature coatings and treatments for specialized high-temperature applications.



Parameter List:



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2

COATED FABRIC Coating style No. SI233-1015
Coating Silicone rubber 2 sides
Weight 510 ± 25 g/m2 15 ± 0.74 oz/yd2 ASTM E84-12
Thickness 0.40± 0.02 mm 0.016 ± 0.0007 inch ASTM E84-12
Color grey
Fire resistance M0
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)





Application:



Fire doors & Fire curtains

Welding/fire blankets

Other fire control systems

Insulation jackets, mattress and pad

Fabric expansion joints

Fabric ductwork connector



Features:



Excellent non-stick properties

Water and fire protection

Good Chemical Resistance

Superior Flex and Abrasion Resistance

Chinese manufacturer price
