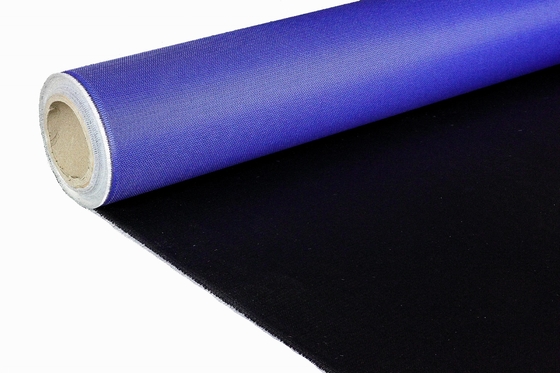

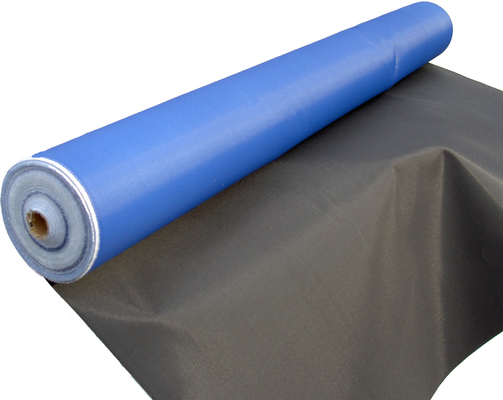

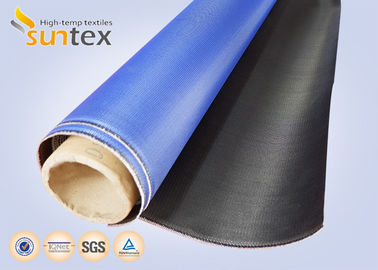

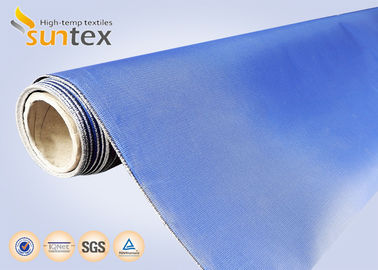

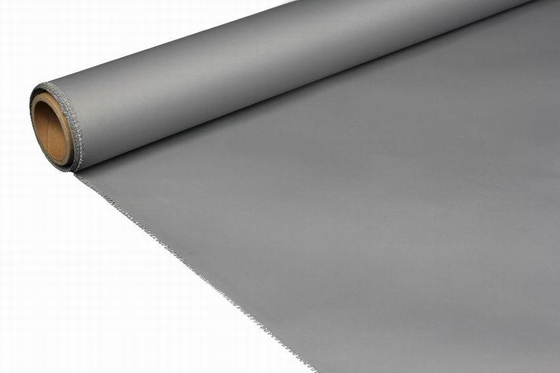

0.4 mm fire resistant durable PU coated glass fiber fabrics for fire protection system,M0 certificate
| Place of Origin | China |
|---|---|
| Brand Name | SUNTEX |
| Model Number | GF430P-PU21A-2006 |
| Minimum Order Quantity | 500 meter |
| Price | FOB Shanghai 2.3-5.6 $/sqm |
| Packaging Details | Each roll in the carton, several cartons on the pallets |
| Delivery Time | 5-15 working days |
| Payment Terms | T/T, L/C, D/P, Western Union |
| Supply Ability | 50000 meter per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 460 G/sqm | Thickness | 0.41 Mm |
|---|---|---|---|
| Color | Blue / Black | Weave Tape | Twill Weave |
| Width | 1m/1.3m/1.5m/1.52m/1.55m | Coating | Polyurethane |
| Highlight | coated fiberglass fabric,fire retardant cloth |
||
Product Description
Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.
Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.
Main applications
-Fabric air distribution ducts.
-Fabric ductwork connector.
-Fire doors & Fire curtains.
-Welding/fir blankets.
-Other fire and smoke control systems.
| BASE FABRIC | Base fabric style No. GF430P | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU21A-2006 | ||
| Coating | Fire retardant, high performance, blue/black polyurethane on both sides | ||
| Weight | 460 ± 20 g/m2 | 13.5 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.41 ± 0.03 mm | 0.017 ± 0.0012 inch | ASTM D1777-96 |
| Color | Blue/Black | ||
| Fire resistance | M0 approvals | NF92507 | |
| Temp resistance |
Glass fabric up to 5500C (10000F) Polyurethane coating up to 1800C (3560F |
||
| Style NO. | Weight | Thickness | Color | Coating | ||
| (g/m2) | (oz/yd2) | (mm) | (inch) | |||
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | Double side |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | Double side |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | Single side |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | Double side |
| TGF580—PU113-2019 | 620 | 18 | 0.75 | 0.0295 | Grey | Single side |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | Single side |
Related Style
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q:Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q:What is your delivery time?
A:Generally we will within 30 days of delivery to you
4. Q:Can you product the customized goods?
A:Surely, we can be customized according to your demanding.
5. Q:What kinds of payment you accept?
A:We accept T/T, L/C ,D/P or other.
6. Q:Do you have other production?
A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass
fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,
Aluminized aramid fabric . We are looking forward to your enquiry.
