PTFE coated chemical resistant fabric
,abrasion resistant waterproof fabric
,silicone coated fiberglass fabric
PTFE coated fiberglass fabric is highly resistant to most industrial chemicals and can be used in applications to 3500C.
It also has excellent abrasion resistance, easy to clean, easy to be sewn and fabricated.

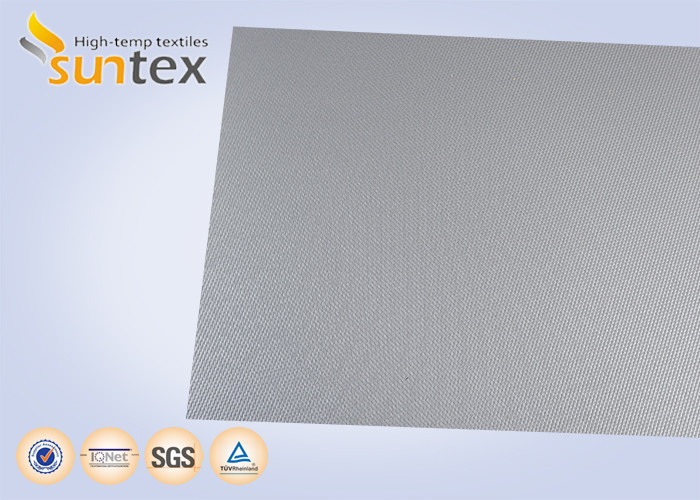

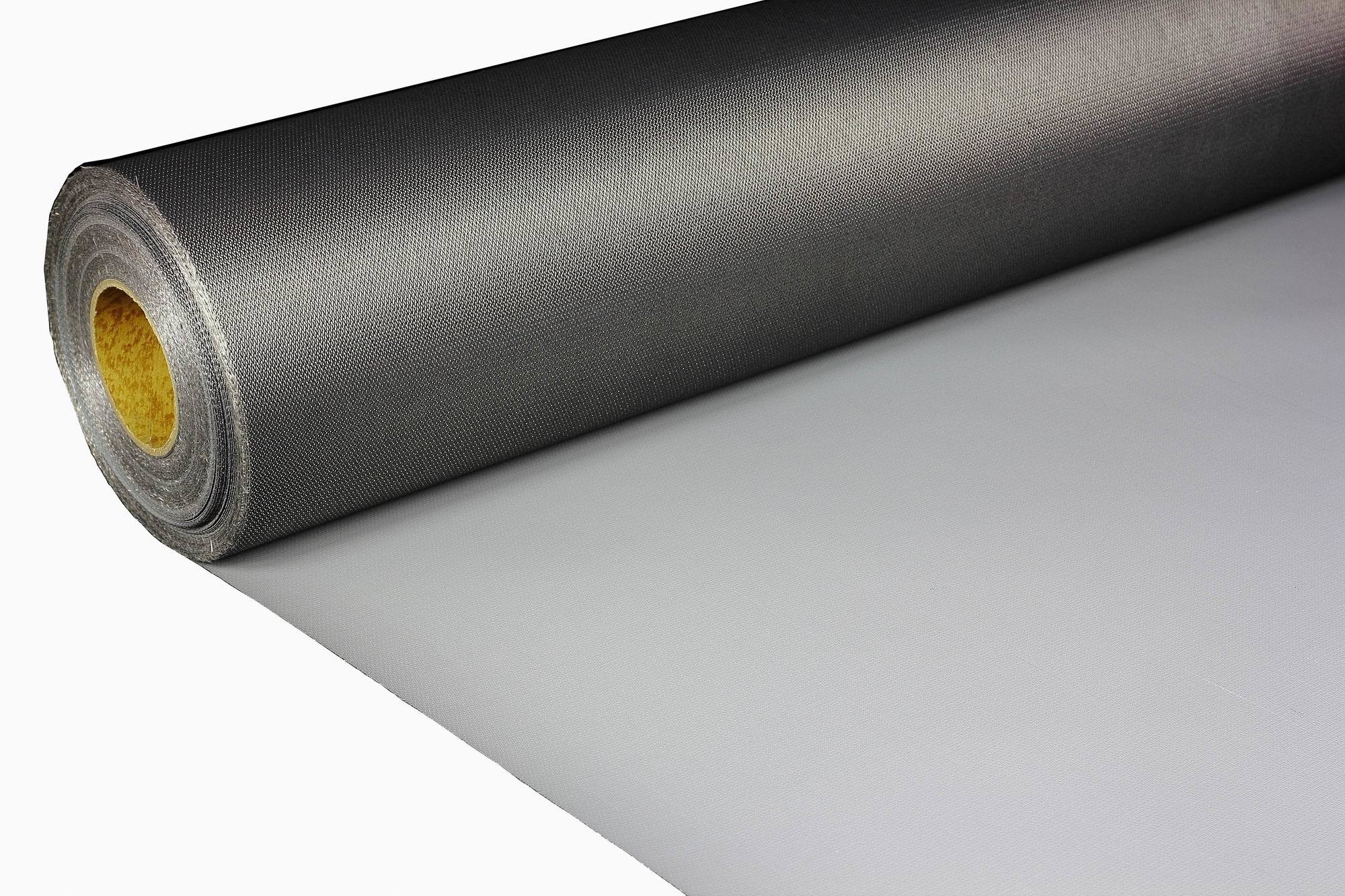

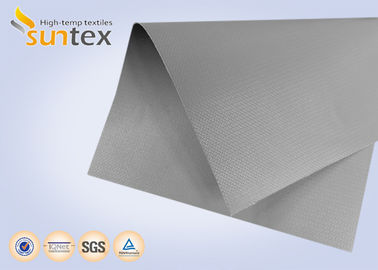

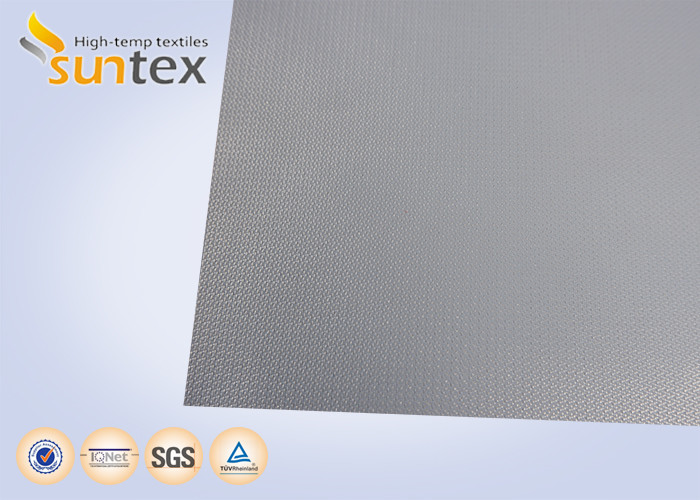

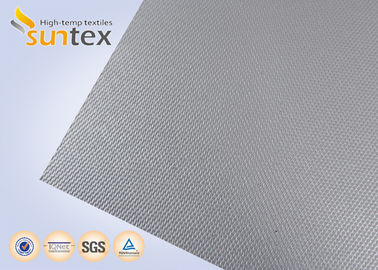

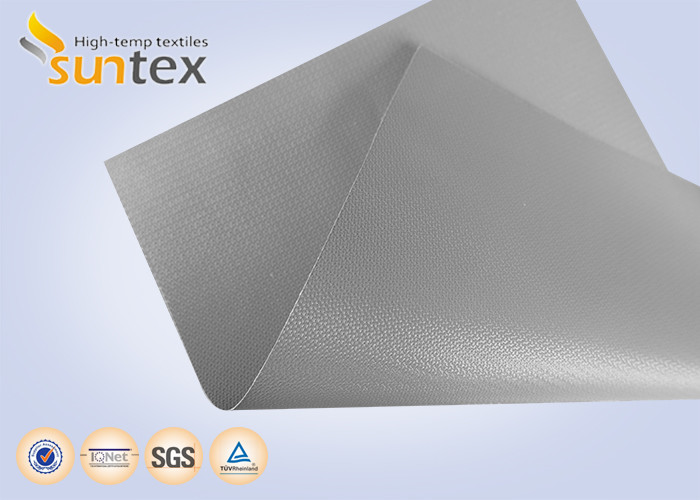

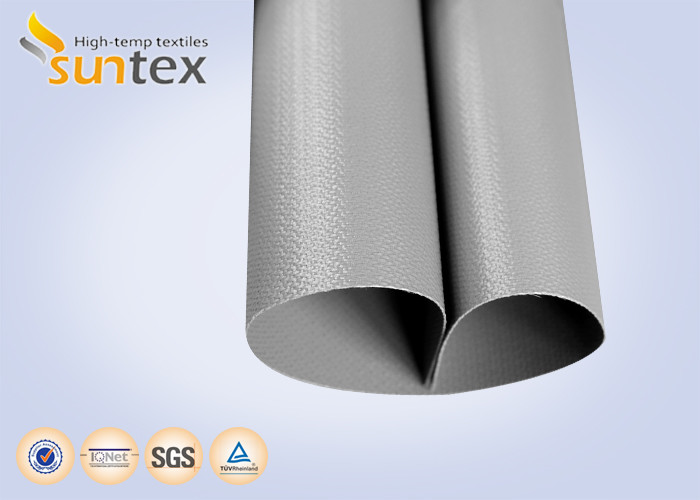

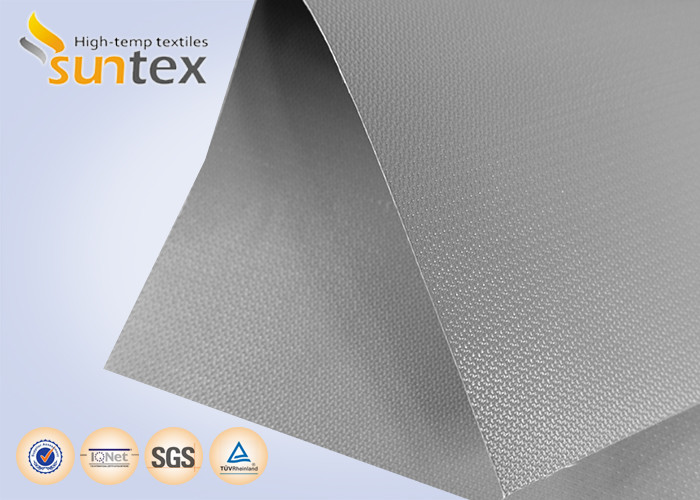

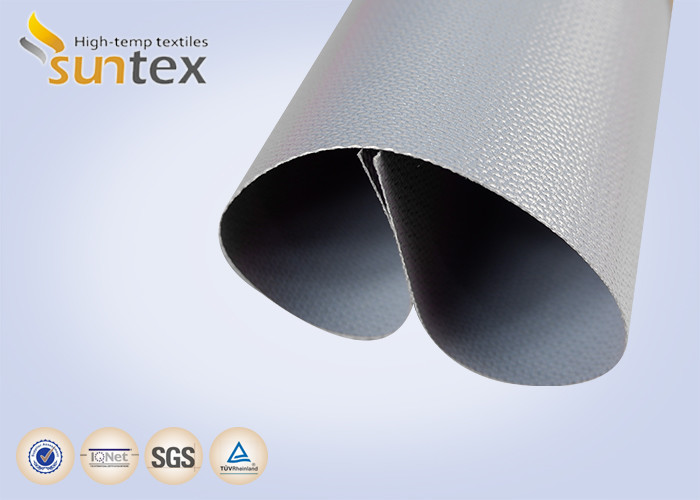

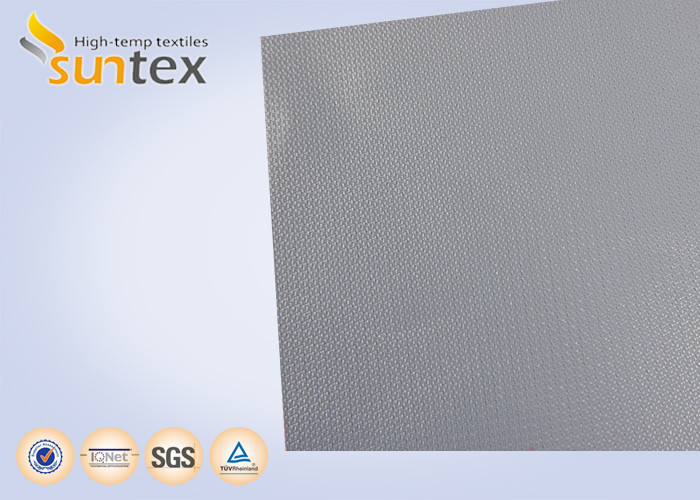

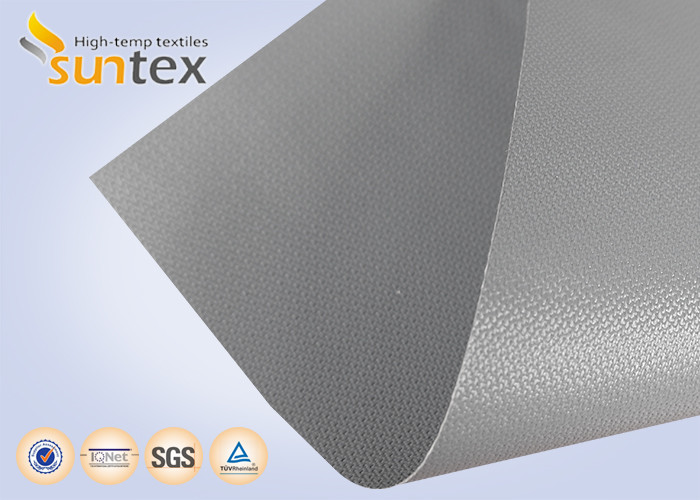

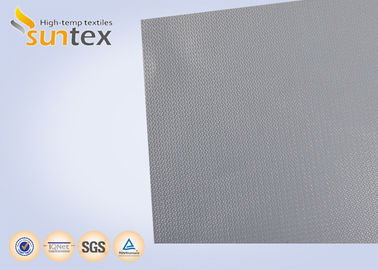

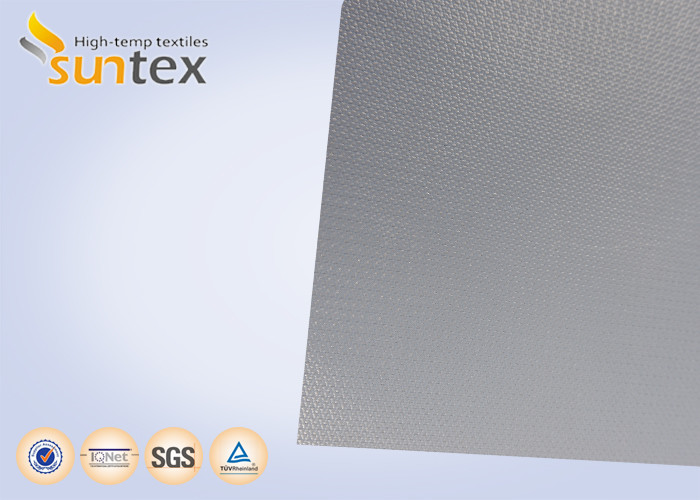

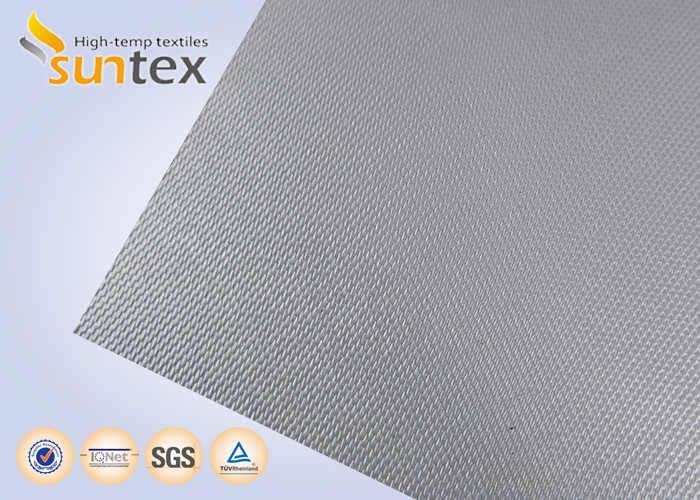

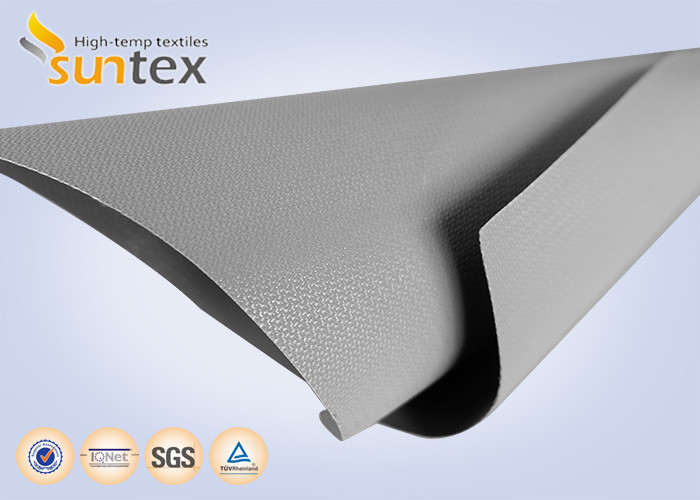

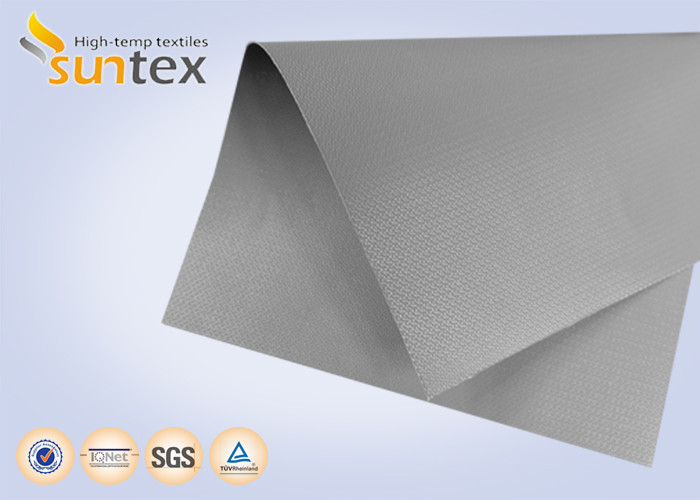

GF430P-PE133-8003 is a medium weight woven fiberglass fabric coated with a specially formulated PTFE solution on both sides.
GF430P-PE133-8003 has excellent chemical resistance. And this fabric is soft and easy to sew and clean.
It’s designed for the manufacturer of removable insulation covers, dust lagging and other types of fire control systems.
Main applications
-Thermal insulation jacket, mattress and pad
-Expansion joints and compensators
-Conveying belt
| BASE FABRIC | Base fabric style No. GF430P | ||
| (metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 136 1﹡0 | ECG 37 1/0 | |
| Weft | EC9 136 1﹡0 | ECG 37 1/0 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
|
|
|||
| COATED FABRIC | Coating style No. PTFE133-8003 | ||
| Coating | PTFE coated on one side | ||
| Weight | 580 ± 20 g/m2 | 17 ± 0.6 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.43± 0.02 mm | 0.016 ± 0.0007 inch | ASTM D1777-96 |
| Color | Grey | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) PTFE coating up to 3300C (6200F) |
||
Related Style
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q:Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q:What is your delivery time?
A:Generally we will within 30 days of delivery to you
4. Q:Can you product the customized goods?
A:Surely, we can be customized according to your demanding.
5. Q:What kinds of payment you accept?
A:We accept T/T, L/C ,D/P or other.
6. Q:Do you have other production?
A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass
fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,
Aluminized aramid fabric . We are looking forward to your enquiry.
