Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene

  • Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
  • Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
  • Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
  • Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
  • Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene
Place of Origin China
Brand Name SUNTEX
Model Number GF431P-NE245-4005
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 600 G/sqm Thickness 0.45 Mm
Color Black Yarn Tape E-glass
Weave Tape Satin Weave Width 1.52m
Coating Neoprene Standing Temperature From -50℃ To 550℃
Highlight

acrylic coated fiberglass

,

fiberglass fabric roll
Leave a Message
Product Description

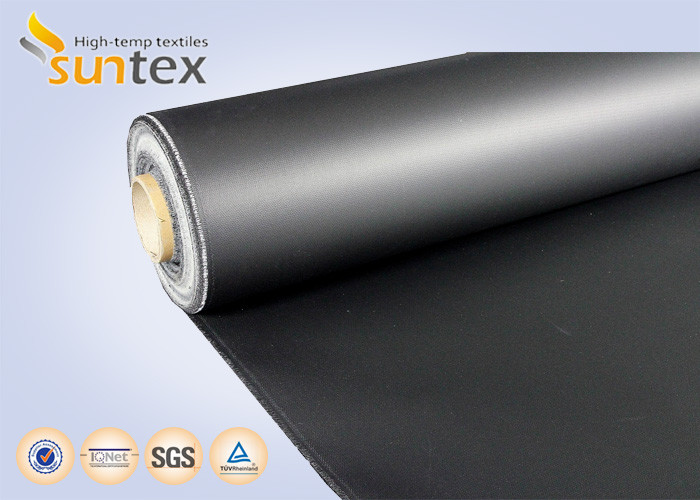

Thermal Insulation Fireproof Fabric Fiberglass Coated With Neoprene



    GF431P-NE245-4005 is a medium weight fiberglass fabric coated with a high quality, fire retardant neoprene rubber. This product is designed for the manufacture of removable, reusable insulation pads, jackets, and mattresses. The material is soft and pliable and easy to sew.



This product is particularly suitable for the manufacture of compensators and expansion covers.



Main applications

- Flexible ductwork connector

- Welding blankets

- Other fire control systems



BASE FABRIC Base fabric style No. GF431P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. NE245-4005
Coating Neoprene rubber , two sides
Weight 600 ± 30 g/m2 17.35 ± 0.88 oz/yd2 ASTM D3776-96
Thickness 0.47 ± 0.02 mm 0.019 ± 0.0008 inch ASTM D1777-96
Color Black
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Neoprene rubber coating up to 1500C (3600F)
