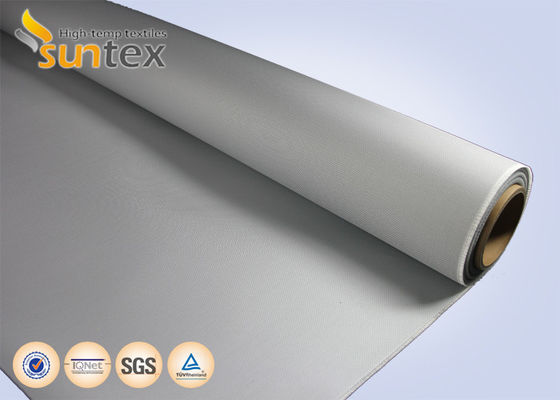

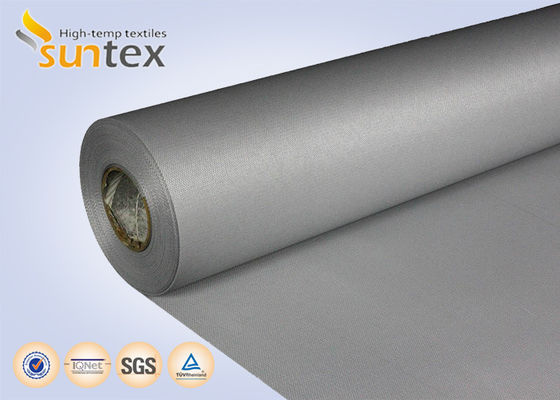

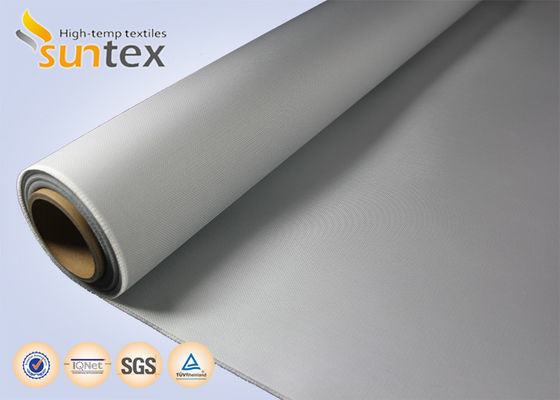

0.4mm Air Distribution PU Coated Fiberglass Fabric Flame Retardant M0 Certificate
Material Introductions:
Pu coated fiberglass is made of glass fiber fabric with polyurethane polymer coating;
It withstands temperature up to 180 0C, and 550 C for short bursts.
Pu fiberglass has very good abrasion resistance and good resistance to oils and solvents.
We produce one-sided/double-sided polyurethane coated fiberglass fabrics, different colors and widths can be customerized.
It's quite suitable for further fabricating , with its good mechanical properties.
This type Fiberglass Fabric is a medium weight fiberglass with a specially formulated polyurethane coating.
It is applied for textile air distribution system.
The other applications are manufacturing of smoke and fire curtains, fire barriers and other kinds of smoke-stoping and fire control systems.
Main applications
- Flexible air distribution ducting.
- Flexible ductwork connector.
- Fire doors & smoke curtains.
| BASE FABRIC | Base fabric style No. GF430P | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 136 1/ 0 | ECG 37 1/0 | |
| Weft | EC9 136 1/ 0 | ECG 37 1/0 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU213-2004 | ||
| Coating | Fire retardant, high performance, polyurethane on both sides | ||
| Weight | 460 ± 20 g/m2 | 13.5 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.43 ± 0.03 mm | 0.017 ± 0.0012 inch | ASTM D1777-96 |
| Color | Grey/grey | ||
| Fire resistance | M0 approvals | NF 92507 | |
| Temp resistance |
Glass fabric up to 550C (1022F) Polyurethane coating up to 180C (356F) |
||
Related items recommended:
| Style NO. | Weight | Thickness | Color | Coating | ||
| (g/m2) | (oz/yd2) | (mm) | (inch) | |||
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | Double side |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | Double side |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | Single side |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | Double side |
| TGF580—PU113-2019 | 620 | 18 | 0.75 | 0.0295 | Grey | Single side |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | Single side |
Related Style
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q:Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q:What is your delivery time?
A:Generally we will within 30 days of delivery to you
4. Q:Can you product the customized goods?
A:Surely, we can be customized according to your demanding.
5. Q:What kinds of payment you accept?
A:We accept T/T, L/C ,D/P or other.
6. Q:Do you have other production?
A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass fabric, Hypalon coated fiberglass fabric, Aluminized aramid fabric .
We are looking forward to your enquiry.
