Product Details:
Payment & Shipping Terms:
|
| Weight: | 530 G/sqm | Thickness: | 0.58 Mm |
|---|---|---|---|
| Color: | White | Yarn Tape: | E-glass |
| Weave Tape: | Textilized | Width: | 1m/1.3m/1.5m/1.52m/1.55m |
| Coating: | Without | Standing Temperature: | From -50℃ To 550℃ |
| High Light: | silicone rubber coated fiberglass cloth,silicone impregnated fiberglass fabric |
||

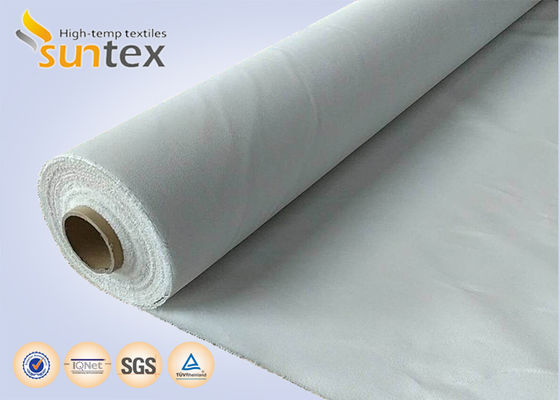

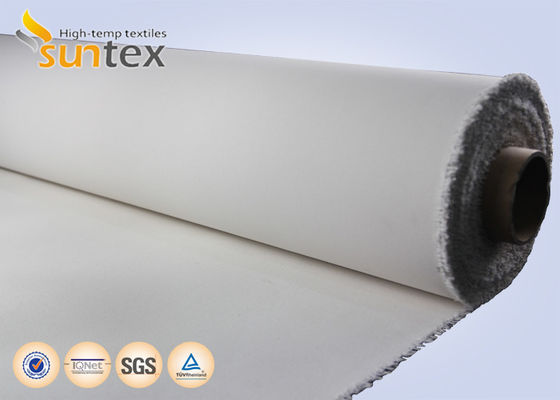

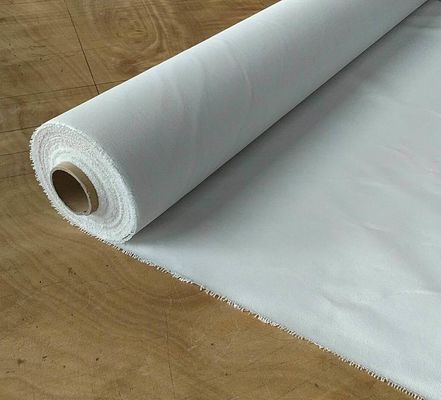

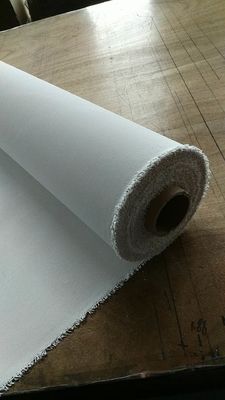

1000ºF Heat Resistance Thermal Insulation Fabric Pipe Reparing Rewettable Fiberglass Lagging
Propeties:
TGF280-RW250-5033 is a texturized fiberglass fabric combined with a completely inorganic fire retardant adhesive which is impregnated throughout the fabric. This lagging fabric is ideal for use in repairing or covering insulation that has been damaged or has become friable on piping, tanks, vessels, boilers and breechings.
Usage method:
SURFACE PREPARATION
Prior to application it is important to determine if the existing asbestos material is well adhered to the substrate. Correct any surface defects and clean all surfaces thoroughly. Be careful not to agitate asbestos fibers during preparation; this could increase asbestos exposure. Use a vaccuum with a HEPA Filter to remove excess dust from the surface.
PRODUCT APPLICATION
Measure the circumference of the outter surface of the insulation. Cut the Rewettable Lag Cloth to appropriate size making sure to account for a reasonable overlap. Dip the Rewettable Lag Cloth in water and smooth out excess water from the material. Apply the Lag Cloth over the pipe insulation allowing the lap to be placed in a downward position. Overlap the next section with a 2-4" overlap depending on pipe size. Use your hands to smooth out any wrinkles in the material.
DRY TIME: Rewettable Lag Cloth installed on piping that is hot will speed up the dry time of the material.
Technical Data:
| BASE FABRIC | Base fabric style No. TGF280 | ||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | ET6 215 tex | ETDE 22.5 | |
| Weft | ET6 215 tex | ETDE 22.5 | |
| Construction | |||
| Warp | 8 ± 0.7 ends/cm | 20 ± 2 ends/inch | |
| Weft | 6 ± 0.6 picks/cm | 14 ± 1 picks/inch | |
| Weight | 288 ± 15 g/m2 | 8.5 ± 0.4 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.38 ± 0.019 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. RW250-5033 | ||
| Coating | inorganic fire retardant adhesive impregnated | ||
| Weight | 530 ± 20 g/m2 | 15.5 ± 0.6 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.58 ± 0.02 mm | 0.0228 ± 0.0008 inch | ASTM D1777-96 |
| Color | white | ||
| Temp resistance | 5500C 10000F | ||
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q:Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q:What is your delivery time?
A:Generally we will within 30 days of delivery to you
4. Q:Can you product the customized goods?
A:Surely, we can be customized according to your demanding.
5. Q:What kinds of payment you accept?
A:We accept T/T, L/C ,D/P or other.
6. Q:Do you have other production?
A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass
fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,
Aluminized aramid fabric . We are looking forward to your enquiry.
