Fireproof & Corrosive-Resistant Fiberglass Cloth: Acid & Alkali Proof Glass Fiber
Place of Origin:Jiangsu, China
Brand Name:Suntex
Model Number:GF600C-AC211-3004
Minimum Order Quantity:500 Square Meter/Square Meters
Price:US$1 - US$3 / Square Meter
Payment Terms:L/C, D/P, T/T
Supply Ability:300000 Meter/ Month
Product Details
Highlight:
neoprene coated fiberglass
,silicone impregnated fiberglass cloth
Alkali Content:
Medium
Yarn Type:
E-Glass
Coating:
Acylic
Weight:
610 G/sqm
Thickness:
0.6mm
Width:
1m 1.2m 1.5m 1.8m 2m Or Customized
Temperature Resistance:
-50 C Degree To 550 C Degree
Color:
Blue,green,white,black,yellow,or Customized
Good Features:
Good Flame Resistance, Excellent Resistance To Chemical And Water
Application 1:
Fire Blankets,welding Blankets,fire Doors,fire Curtains,smoke Curtains
Application 2:
Thermal Insulation And Heat Protection, Expansion Joint And Piping
Product Description
Weave Locked Pva Coated Flame-retarded Fireproof Fiberglass Fabric Cloth Roll
Product Description

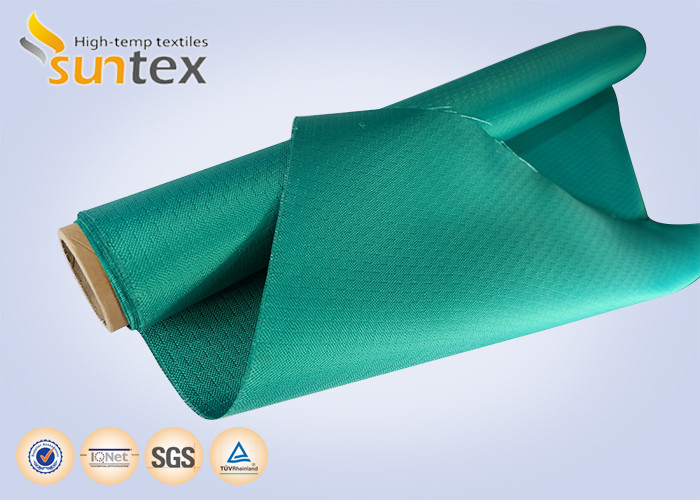

GF600C-AC211-3004 is a woven fiberglass fabric, acrylic weave set finish-medium add-on to improve fabric processing in sewing and laminating. It’s used for smoke curtains, insulation covers, and welding blankets and the fire control systems.
Main applications:
-shipbuilding
-welding blankets, fire blankets
-fire doors, fire curtains, smoke curtains
-thermal insulation and heat protection
- expansion joint and piping
-removable pads and welding blanket
-other fire control systems
| BASE FABRIC | Base fabric style No. GF600C | |||
| (Metric) | (English) | Test methods | ||
| Weave | Check board | Check board | ||
| Yarn | ||||
| Warp | EC9 33 3*2 | ECG150 3/2 | ||
| Weft | EC9 33 3*2 | ECG150 3/2 | ||
| Construction | ||||
| Warp | 14.5 ± 1.4 ends/cm | 37 ± 3 ends/inch | ASTM D 3775-96 | |
| Weft | 14.5 ± 1.4 ends/cm | 37 ± 3 ends/inch | ASTM D 3775-96 | |
| Weight | 600 ± 30 g/m2 | 17.6 ± 0.88 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.59 ± 0.05 mm | 0.023 ± 0.002 inch | ASTM D1777-96 | |
| FINISHED FABRIC | Finishing style No. AC211-3004 | |||
| Coating | Acrylic weave-set finish two sides, medium add-on, green color | |||
| Weight | 620 ± 30 g/m2 | 18.2 ± 0.88 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.6 ± 0.06 mm | 0.023 ± 0.002 inch | ASTM D1777-96 | |
| Color | Green | |||
| Temp resistance | 5500C | 10000F | ||
