| Weight: | 15 OZ/y2 | Thickness: | 0.4 Mm |
|---|---|---|---|
| Color: | Silver Grey | Width: | 1.55 M |
| Coating: | Silicon Rubber On Both Side Or Single Side | Standing Temperature: | From -50℃ To 550℃ |
| Coating Weight: | 80 G/sqm | Material: | Fiberglass |
| Origin: | Hubei, China | ||
| High Light: | fiberglass welding cloth,fiberglass cloth roll |
||

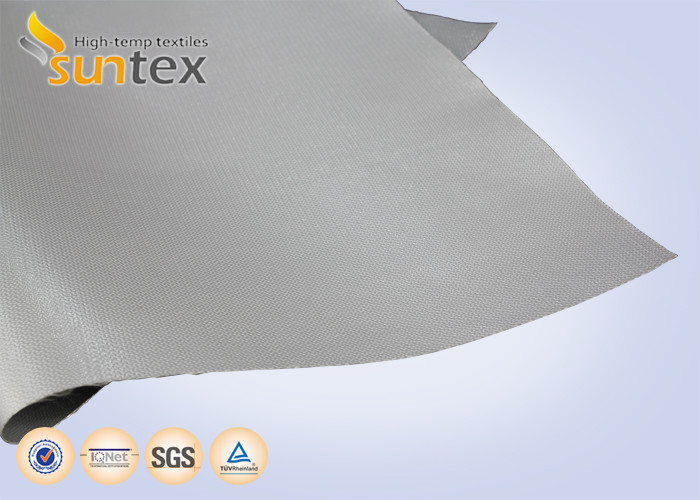

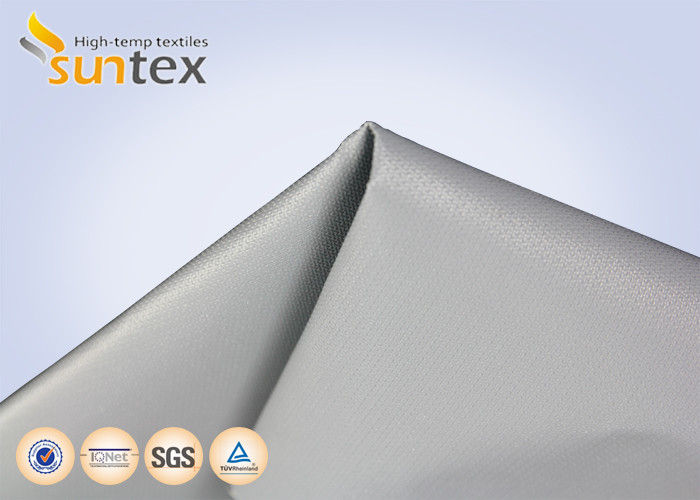

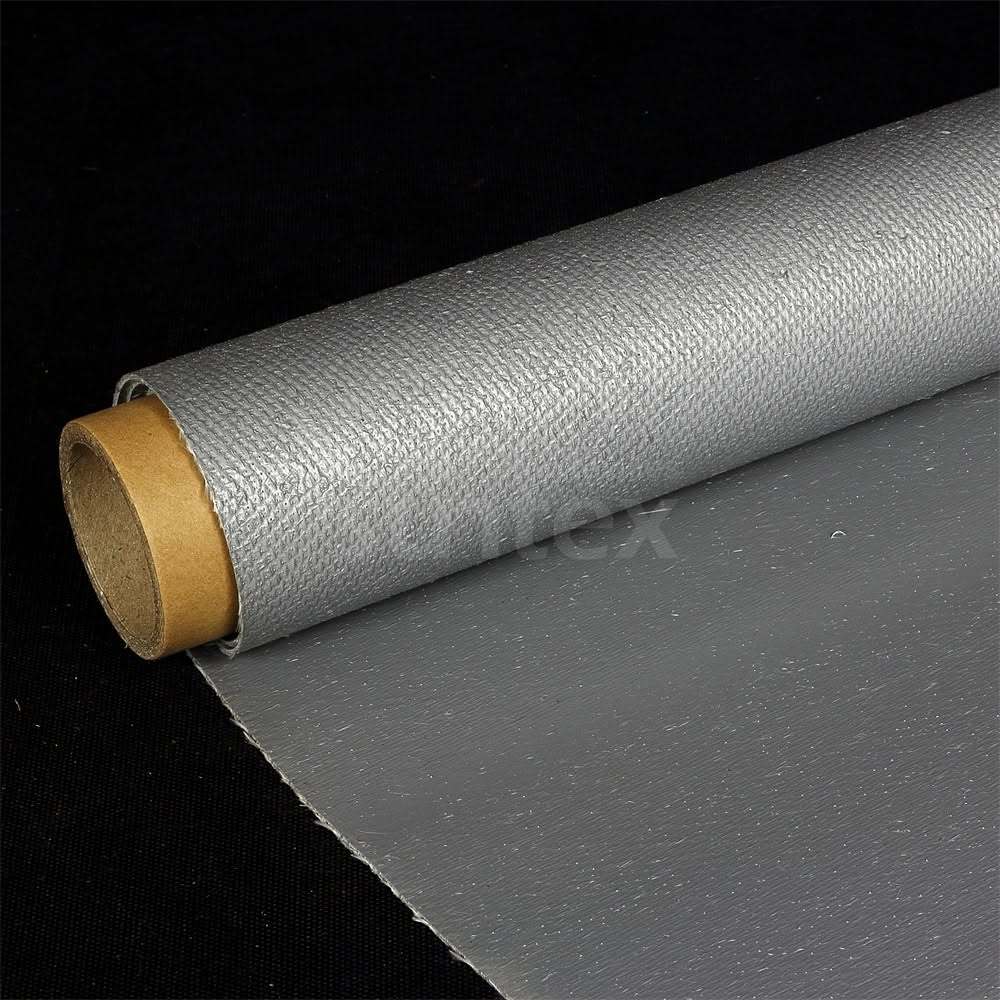

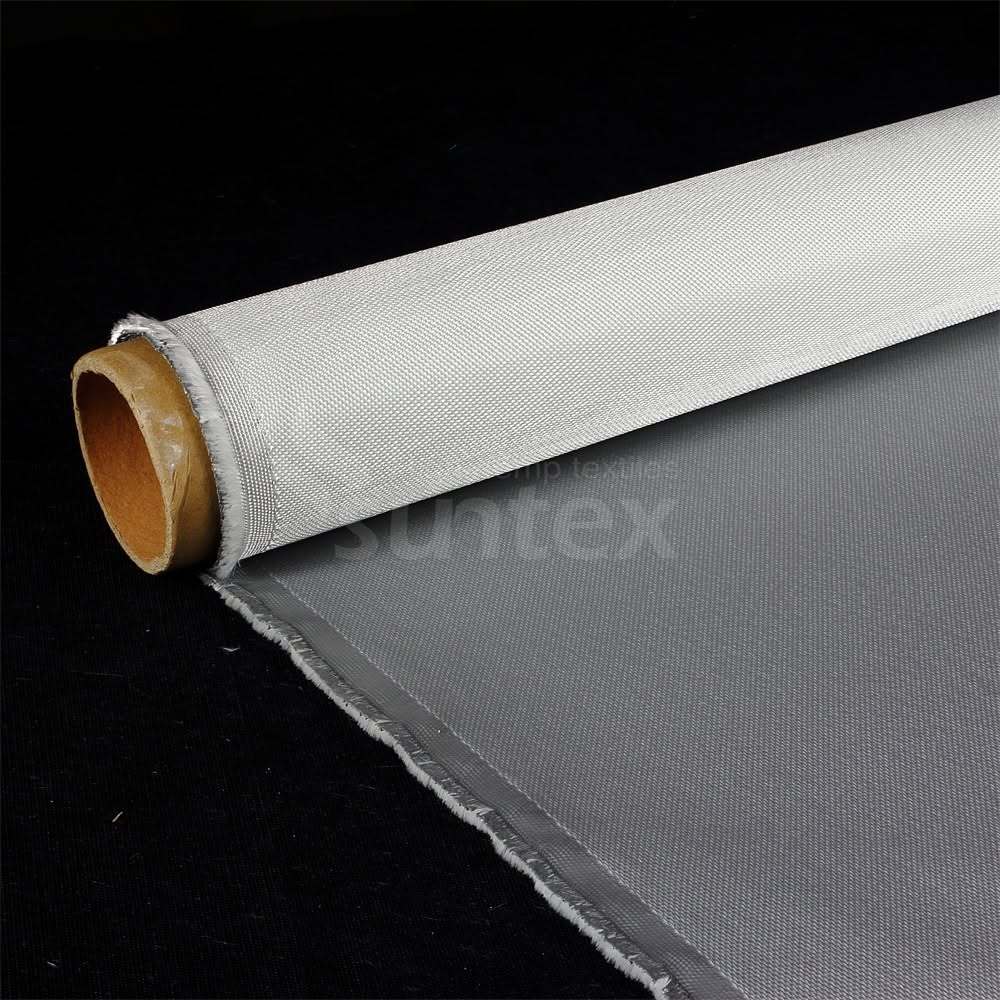

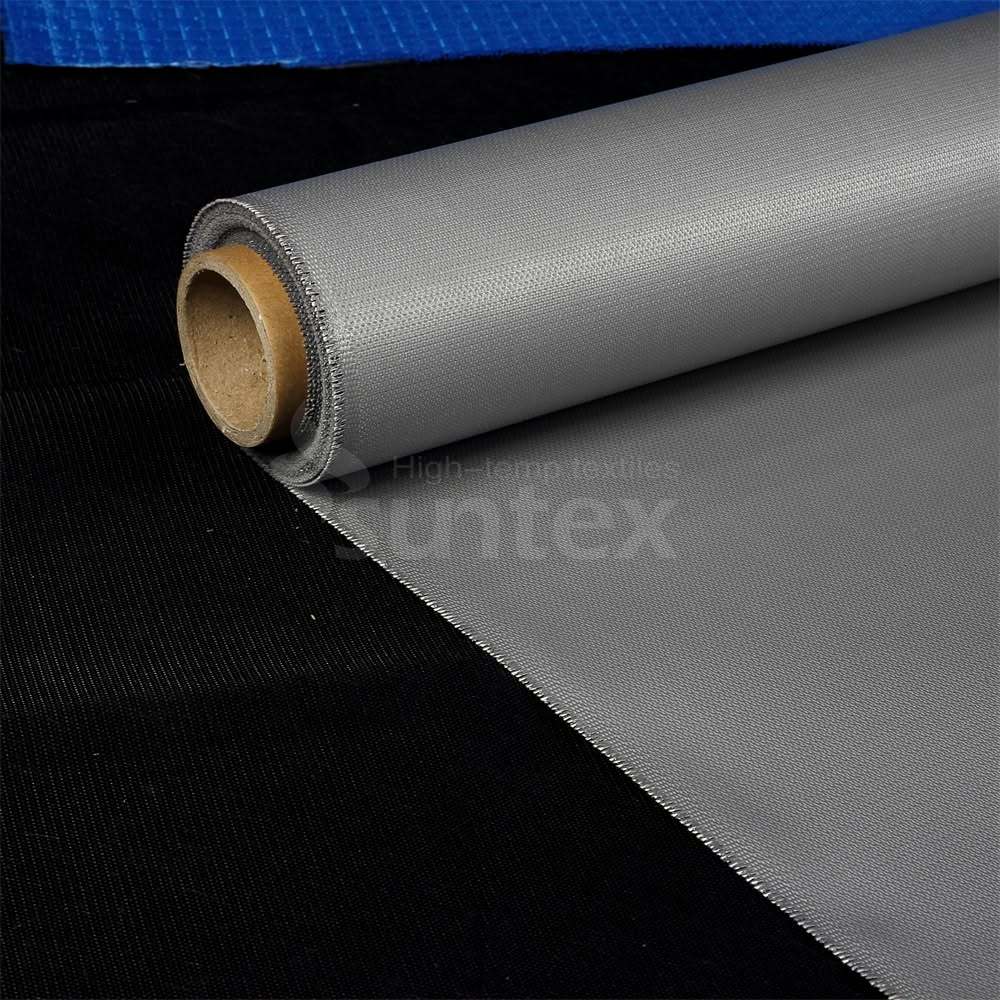

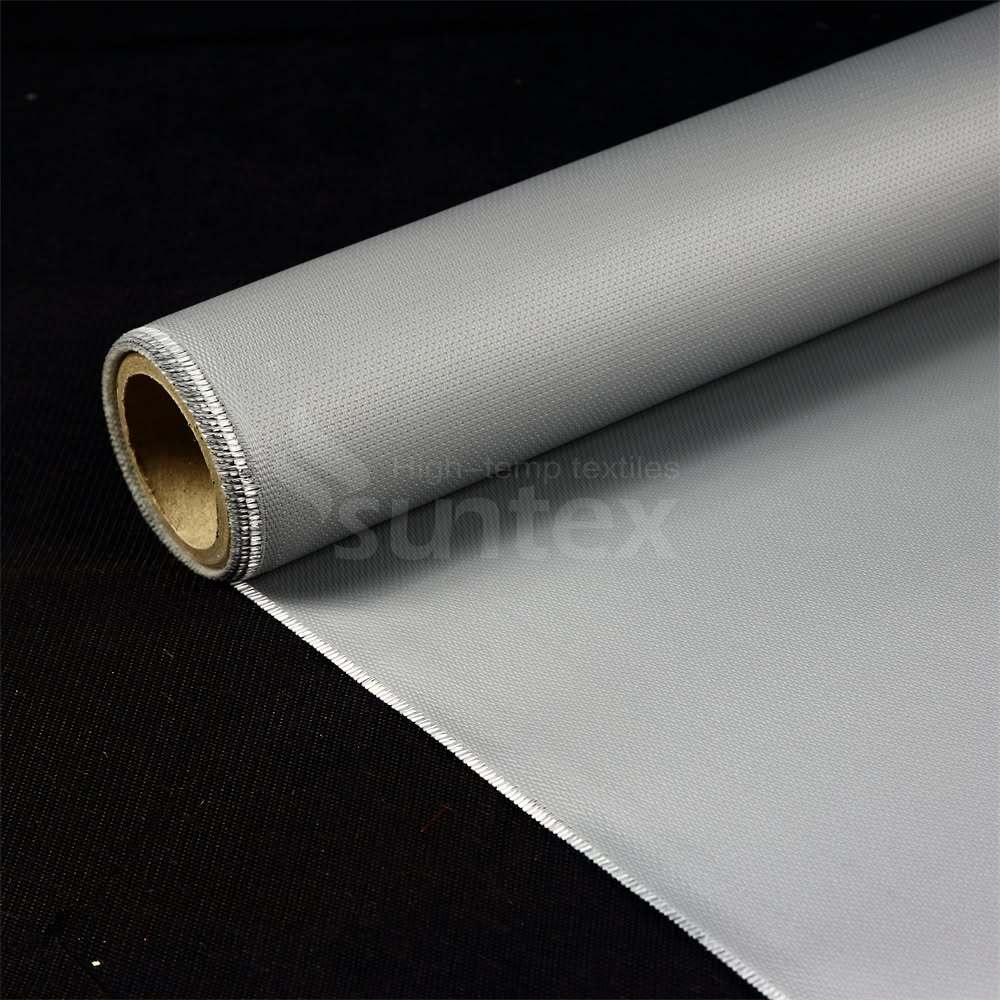

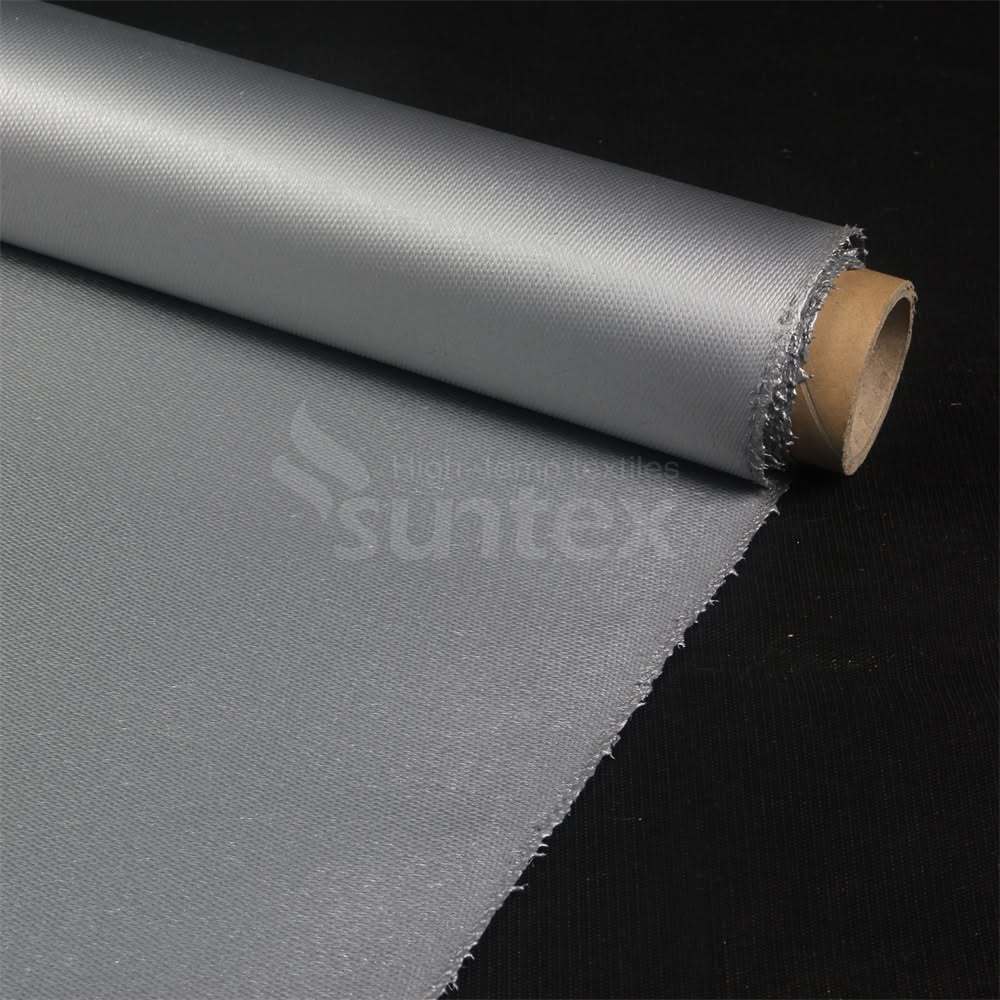

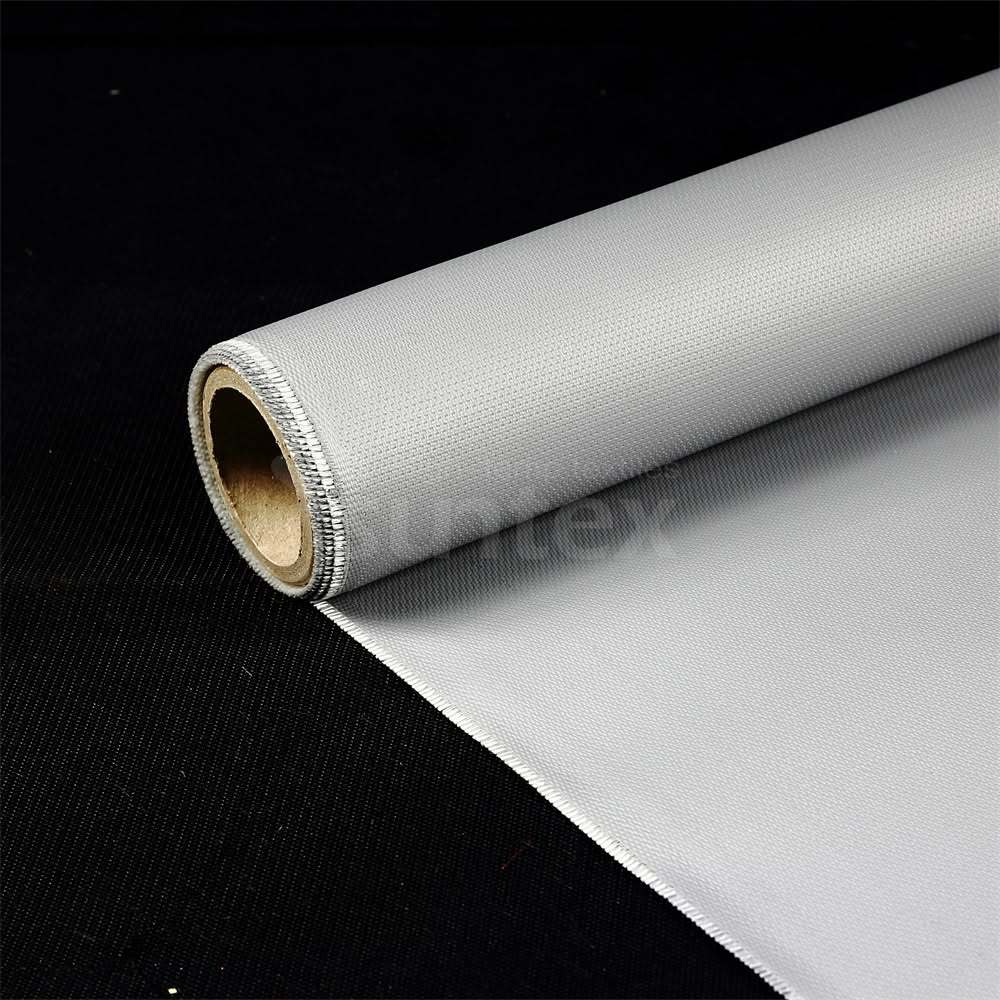

3732 Media Duty Coated Fire Blanket Fiberglass Welding Cloth Waterproof
Description:
This GF430P-SI233-1015 is 3732 fiberglass base cloth which is coated with 150 g/m2 grey silicone coating on two sides. The base fiber glass cloth can withstand 550℃ continuously. While silicone coating can withstand temperature below 260℃.
Silicone coated fiberglass fabric is the most flexible, trackable, and wear resistant fabric. It is made from e-glass woven fiber glass fabric, with properties such as dimensional stability, durability and great tensile strength. Base on silicone coating's properties, this coated fiber glass cloth are always used for fire/welding blanket/curtain, fabric expansion joints/fabric ductwork connector, jacketed vessel insulation covers/exchanger insulation covers and other engineer thermal insulation application.
Parameter List:
| BASE FABRIC | Base fabric style No. GF430P | ||
| (metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| COATED FABRIC | Coating style No. SI233-1015 | ||
| Coating | Silicone rubber 2 sides | ||
| Weight | 510 ± 25 g/m2 | 15 ± 0.74 oz/yd2 | ASTM E84-12 |
| Thickness | 0.40± 0.02 mm | 0.016 ± 0.0007 inch | ASTM E84-12 |
| Color | grey | ||
| Fire resistance | M0 | ||
| Temp resistance |
Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) |
||
Main Application:
Fire blanket
Welding blanket
Advantage:
High temp resistant
Water proofing
Excellent non-stick properties
Water and fire protection
Good Chemical Resistance
Superior Flex and Abrasion Resistance
