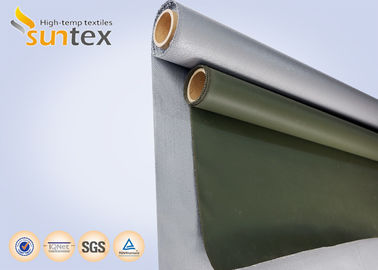

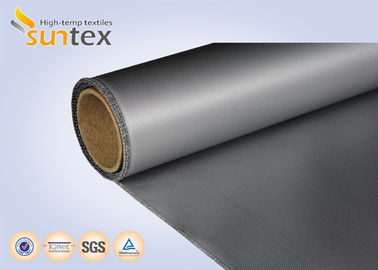

Grey Color Fiberglass Silicone Coated Glass Fabric Insulation Jacket External Material

Grey Color Fiberglass Silicone Coated Glass Fabric Insulation Jacket External Material
Grey Color Fiberglass Silicone Coated Glass Fabric Insulation Jacket External Material
video play

Large Image :  Grey Color Fiberglass Silicone Coated Glass Fabric Insulation Jacket External Material

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: GF431P-SI233/1066
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Width: 1 M / 1.5 M / 1.55 M Color: Grey
Brand: Suntex Temperature Resistance: -50 C Degree To 550 C Degree
Weight: 560 G/sqm Thickness: 0.45 Mm
Coating: Both Side Silicone Rubber Origin: Hubei, China
Roll Length: 50 Meter
High Light:

silicone rubber coated fiberglass cloth

,

silicone impregnated fiberglass fabric



Grey Color Fiberglass Silicone Coated Glass Fabric Insulation Jacket External Material





Description:



Suntex Products stocks and offers a wide array of High Temperature Silicone Fiberglass Fabrics. These cloths are used in the fabrication of removable insulation blankets, pipe wrapping, turbine blankets, fittings and flange covers and engine exhaust pipe covers. Other fabrics available include Vermiculite versions. See our vast inventory of fiberglass listed below for a solution.



High Temperature Fabrics are suitable for temperature ranges from 300ºF up to 2,300ºF. Many are manufactured with temperature resistant yarns and can be subjected to various treatments and coatings. We offer one of the largest inventories of High Temperature Fabrics available in the insulation market.



Parameter List:



BASE FABRIC Base fabric style No. GF431P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96






COATED FABRIC Coating style No. SI233-1066
Coating Silicone rubber coated on both sides
Weight 560 ± 30 g/m2 16.47 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.45 ± 0.03 mm 0.018 ± 0.0012 inch ASTM D1777-96
Color SilverGrey
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2600C (4800F)



Application:



Heat and cold insulation jacket

Fire protection for welding blanket or escape blanket

Smoke curtain

Fire door

Non metal compensator



Advantage:



Easy to cut and sew

Water proofing

Chemical retardant

Good process performance and low fuzz

Compatibility with multiple resin systems

Complete and fast wet-out

Good mechanical properties
