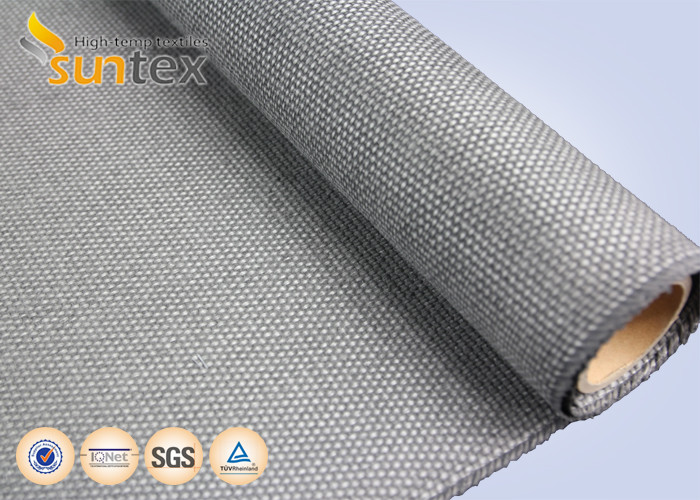

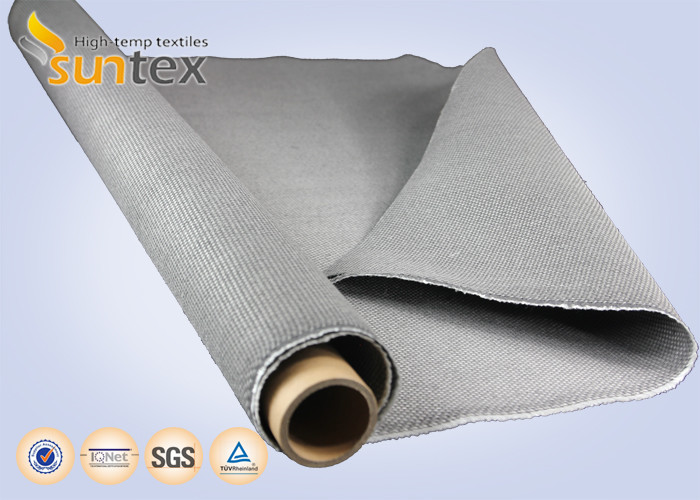

1.5 Mm Thickness Boiler Insulation High Temp Fiberglass Fireproof Coated With Calcium Silicate

1.5 Mm Thickness Boiler Insulation High Temp Fiberglass Fireproof Coated With Calcium Silicate
1.5 Mm Thickness Boiler Insulation High Temp Fiberglass Fireproof Coated With Calcium Silicate
video play

Large Image :  1.5 Mm Thickness Boiler Insulation High Temp Fiberglass Fireproof Coated With Calcium Silicate

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: TGF1000P-CS233-5006
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Fiberglass Cloth Origin: China Delivery: Shipping Or Air Express
Fiberglass Cloth Weight: 1100 G/sqm Thickness: 1.5mm
Width: 1.5 Meter Or OEM Color: Grey
Main Market: Europe / USA / Mid-east / Asia Advantage: Corrosion / High Strength
High Light:

fiberglass cloth heat resistant

,

high temperature fabrics

Boiler Insulation Material Fiberglass Fireproof Fabric Coated With Calcium Silicate



Fiberglass Cloth​ Description:



Calcium silicate coated fiberglass fabric is made calcium silicate coated glass fabric from high temperature reistance and good fiber fraying resistance. Suntex offers high quality and cheap calcium silicate coated fiberglass fabric 1000g/m2, 1200g/m2. Colors can be customized.



TGF1000P-CS233-5006 is a heavy weight woven fiberglass fabric with a specially formulated calcium silicate which provides a high temperature resistance surface as well as other properties for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers, insulation covers, welding blankets and other types of smoke and fire control systems.



Date sheet:



BASE FABRIC Base fabric style No. TGF1000
  (Metric) (English) Test methods
Fiberglass Cloth​ Weave Plain Plain
Yarn
Warp ET9 1250 tex ETG 4.0
Weft ET9 1250 tex ETG 4.0
Construction
Warp 5 ± 0.6 ends/cm 13 ± 2 ends/inch ASTM D 3775-96
Weft 3 ± 0.5 picks/cm 8 ± 1 picks/inch ASTM D 3775-96
Weight 1000 ± 50 g/m2 29.4 ± 1.5 oz/yd2 ASTM D3776-96
Thickness 1.4 ± 0.1 mm 0.055 ± 0.005 inch ASTM D1777-96






COATED FABRIC Coating style No. CS233-5006
Coating Calcium silicate treated on both sides
Weight 1100 ± 50 g/m2 32.3 ± 1.5 oz/yd2 ASTM D3776-96
Thickness 1.5 ± 0.05 mm 0.061 ±0.002 inch ASTM D1777-96
Color Grey
Temp resistance 7000C 13000F



Application:



1. High temperature resistance

2. Excellent anti abrasion property

3. Easy to be cut, sewn and fabricated

4. Removable insulation mattress, jacket & pad

5. Fire doors/smoke curtain

6. Dusts filter bag

7. Flexible expansion joints & compensators



Advantages:



15 years experience Chinese supplier

3 part certificate insulation verified

High temperature esiatent up to 1000C

Short lead time

Manufacturer price
