Flexible Fabric Expansion Joint Cloth / Black Fiberglass Fabric PU Coated M0 Fire Retardant
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight/Weight Per Sqm/square/Unit Weight/ Total Weight/ Nominal Weight | 490g/sqm | Standard Width / Width / Nominal Width | 1000mm 1520mm 1550m 2000m |
|---|---|---|---|
| Nominal Thickness / Standard Thickness / Thickness | 0.43mm | Color/Colour | Black |
| Weave/Pattern | 4H Satin | Temperature Resistance /Working Temperature | 550℃ 1000℉ |
| Coated/Coating/Treatment/Surfacing | PU Two Sides | Fiberglass | E-glass |
| High Light | expansion joint cloth,silicone fiberglass cloth |
||
Product Description

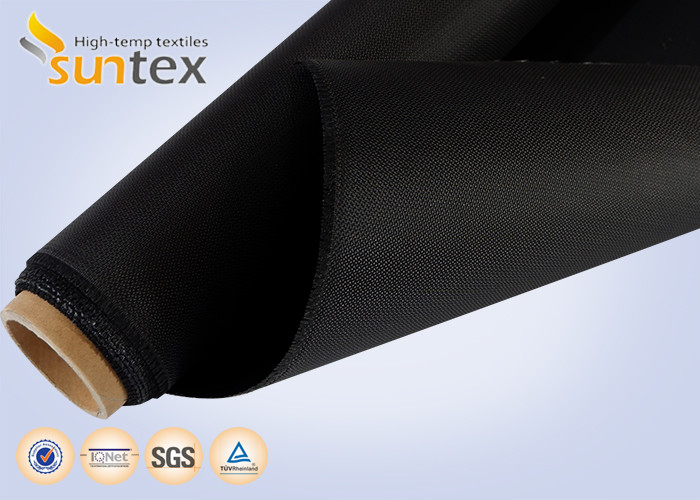

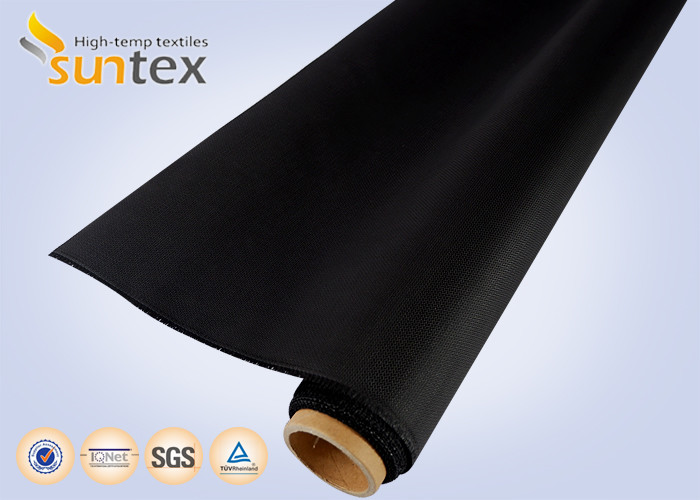

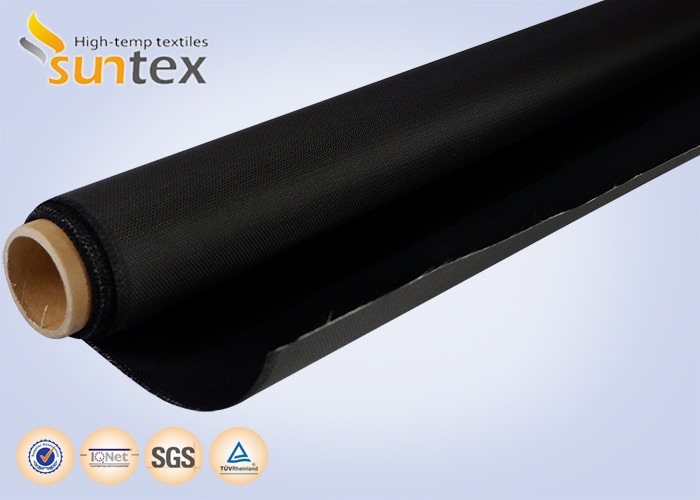

Flexible Expansion Joint PU Coated Fiberglass Fabric M0 Fire Retardant Fabric Duct Connector 0.43mm
Introduce
GF430P-PU225-2013 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer. GF430P-PU225-2013 is specially designed for the flexible connector.
Fiberglass Fabric Advantage
1. M0 certified fire resistance.
2. Black color. Various color available.
3. Easy to be used, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness/, weight, weave, all can be customized base on your application.
Data
| Weight | 490 g/m2 |
| Thickness | 0.43 mm |
| Width | 1000mm 1300mm 1550mm 2000mm |
| Coated | PU |
| Color | Black |
| Fire resistance | M0 |
| Working temperature / Temperature resistance | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave | 4H Satin |
| Yarn warp | EC9 68 1*2 |
| Yarn weft | EC9 68 1*2 |
| Construction warp | 18±1 ends/cm |
| Construction weft | 12.6±1 ends/cm |
| Fiberglass | E-Glass |
Applications
Smoke curtain
Fire blanket
Expansion joint
Reusable thermal insulation cover
Thermal insulation pad
Air duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
