| Unit Weight: | 18 Oz/sq.y | Standard Width: | 1520mm 1550m |
|---|---|---|---|
| Standard Thickness: | 0.029 Inch | Colour: | Silver Grey Fiberglass Fabric |
| Coating Temperature Resistance: | 180℃ 350℉ | Basic Fabric Temperature Resistance: | 550℃ 1000℉ |
| Coating: | Polyurethane 1 Side | ||
| High Light: | coated fiberglass fabric,fire retardant cloth |
||

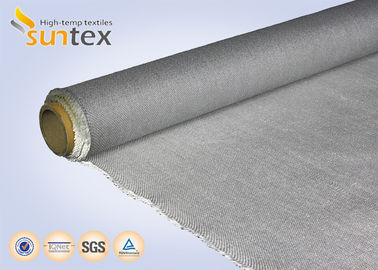

Fire Retardant blanket PU Coated Fiberglass Fabric 0.77mm For Fabric Air Distribution Ducts Thermal Curtain Fabric
Introduce
TGF580-PU113-2019 is a texturized fiberglass fabric with a specially formulated aluminuim polymer and polyurethane solution which provides a heat reflecting surface as well as other properties for the manufacturer of fabric expansion joint, flexible ducts, smoke and fire curtains, fire barriers and other types of smoke and fire control systems.
Advantage
1. Good certified fire resistance.
2. End users can choose the favority face.
3. Easy to be applied/holed, sewn and fabricated.
4. Well abrasion resistance property.
5. Well tensile strength.
6. Thickness, unit weight, pattern, all can be customized base on your use method.
Data
| Unit weight | 18 oz/y2 |
| Standard thickness | 0.029 inch |
| Standard width | 1000mm 1520mm |
| Coating | Polyurethane |
| Colour of coating | Silver Grey |
| Fire resistance | Perfect |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | Plain |
| Fiberglass | E-Glass Texturized Woven Fabric |
Fiberglass Fabric Applications
Fire curtain
Welding blanket
Compensator
Removable thermal insulation sheath
Thermal insulation mat
Fabric duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
