Product Details:
Payment & Shipping Terms:
|
| Unit Weigh: | 13.5 Oz/sq.y | Standard Width: | 1520mm 1550m |
|---|---|---|---|
| Standard Thickness: | 0.017 Inch | Colour: | Grey/Black |
| Coating Temperature Resistance: | 180℃ 350℉ | Basic Fabric Temperature Resistance: | 550℃ 1000℉ |
| Coating: | Polyurethane 2 Sides | ||
| High Light: | coated fiberglass fabric,fire retardant cloth |
||

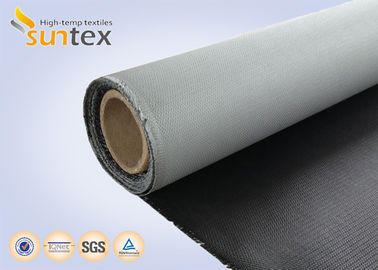

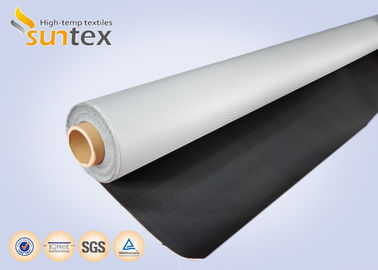

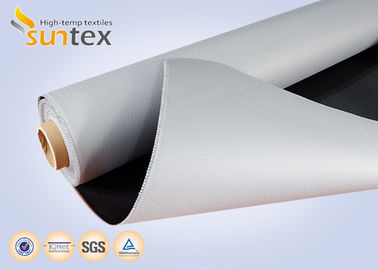

Air Distribution PU Coated Fiberglass Fabric Isolating Fabric Canvas 0.4mm Smoke Curtains Flexible Compensators
Introduce
GF430P-PU21G-2050 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer. GF430P-PU21G-2050 is the fabric applied for textile air distribution system. The other applications for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.
Advantage
1. Good certified fire resistance.
2. End users can choose the favority face.
3. Easy to be applied, sewn and fabricated.
4. Well abrasion resistance property.
5. Well tensile strength.
6. Nominal Thickness, unit weight, pattern, all can be customized base on your use method.
Fiberglass Fabric Data
| Total weight | 13.5 oz/y2 |
| Standard Thickness | 0.017 inch |
| Standard width | 1000mm 1520mm |
| Coating | Polyurethane |
| Colour of coating | Grey/Black |
| Fire resistance | Perfect |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | 4H Satin |
| Fiberglass | E-Glass |
Applications
Fire curtain
Welding blanket
Compensator / Flexible sleeve
Removable heat insulation jacket
Heat insulation mat
Fabric duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
