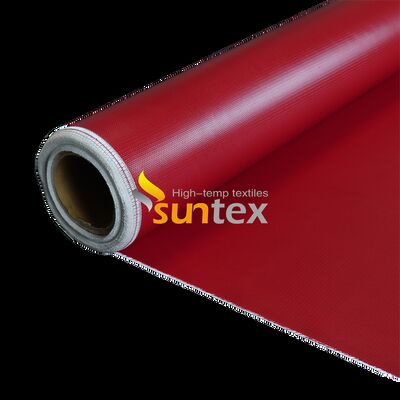

steam pipe insulation material

  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
  • steam pipe insulation material
Place of Origin China
Brand Name SUNTEX
Certification M0
Model Number GF430P-SI123-1008
Minimum Order Quantity 500 meter
Price FOB Shanghai 1.9-3.6 $/sqm
Packaging Details Each roll in the carton, several cartons on the pallets
Delivery Time 5-15 working days
Payment Terms T/T, L/C, D/P, Western Union
Supply Ability 500000 meter per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 510 G/sqm Thickness 0.43 Mm
Color Silver Grey OEM Yarn Tape E-glass
Width 1m/1.3m/1.5m/1.52m/1.55m Coating Silicon Rubber On 1 Side
Temperature Resistant From -50℃ To 550℃ Roll Length 50 Meter
Row Material Fiberglass
Highlight

silicone rubber coated fiberglass fabric

,

silicone coated fiberglass cloth
Leave a Message
Product Description

Description:



GF430P-SI123-1008 is a medium weight woven fiberglass fabric with a specially formulated, flame retardant silicone rubber coating, designed for removable insulation covers, dust lagging and other fire control systems.



Silicone Coated Fiberglass Fabrics are made from woven fiberglass substrates that have been coated on one or both sides with silicone rubber.



Parameter List:



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI123-1008
Coating Silicone rubber 1 side
Weight 510 ± 25 g/m2 15.0 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.43± 0.02 mm 0.016 ± 0.0007 inch ASTM D1777-96

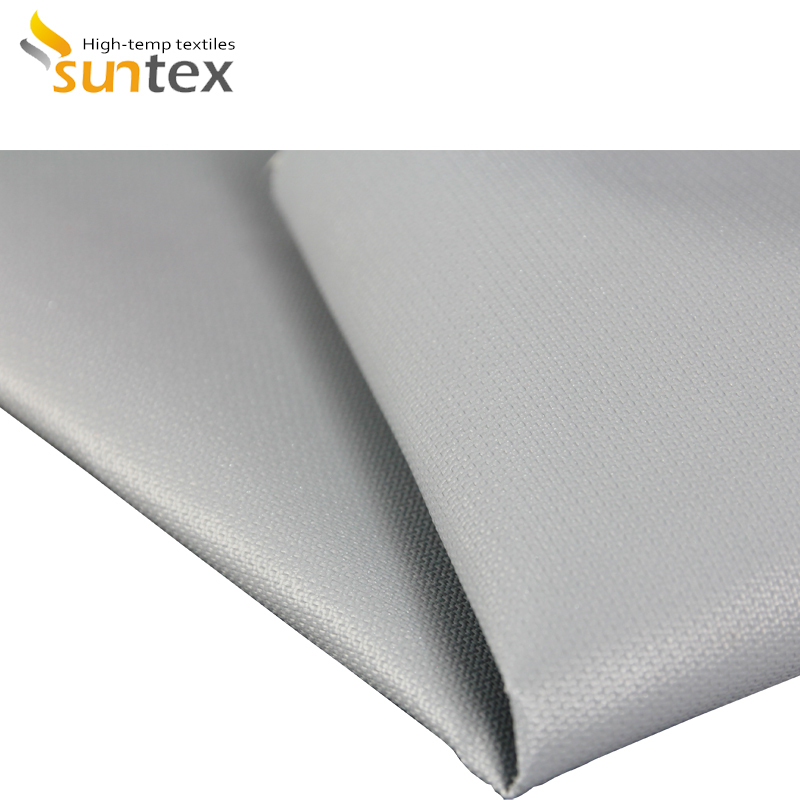

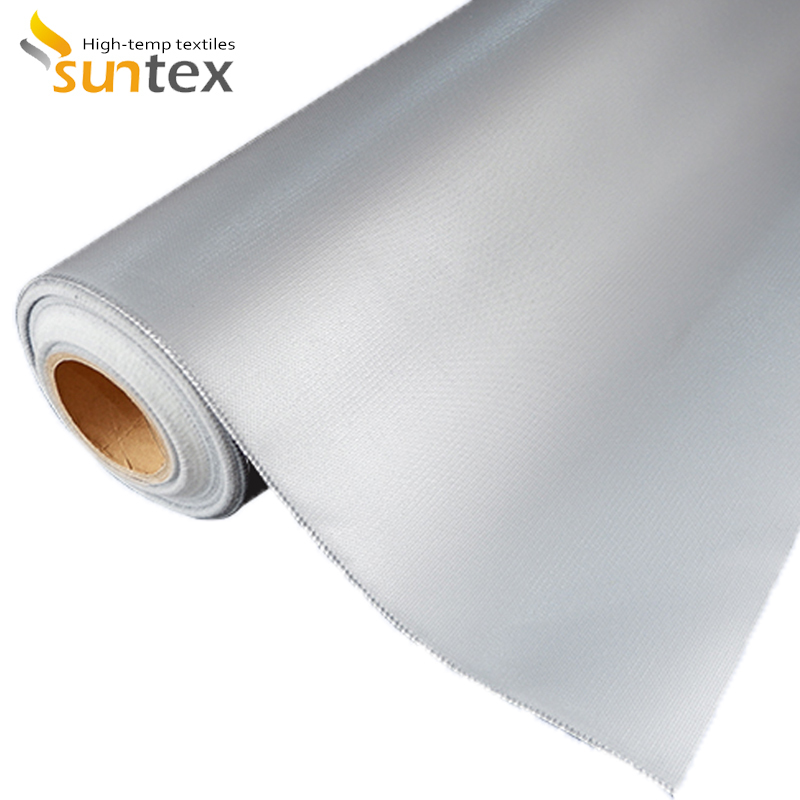

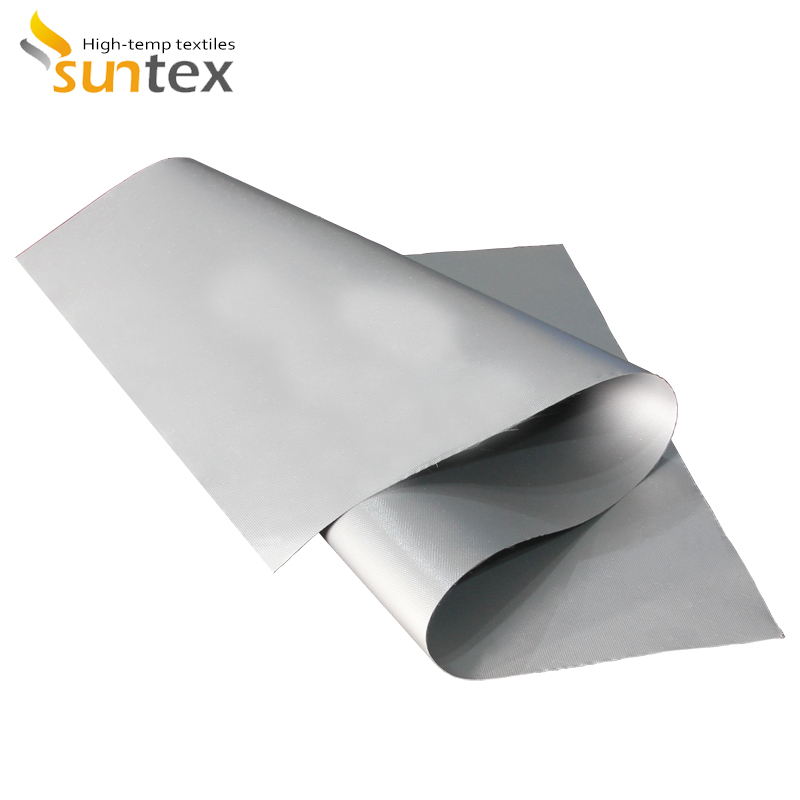

Color silver grey
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)





Main Application:



-Thermal Insulation Covers, Pipe jacket

-Expansion joints fabrics

-Fabric ductwork connector

-Smoke curtains

-Welding/fire blankets

-Flexible duct

-Air systems



Advantage:



-10-20 days lead time

-Easy to cut and sewing

-Manufacturer price

-Top quality for Europe Market

-International 3 part certifecate to our customers
