0.65mm M0 Certificate Fire Insulation Welding Blanket Roll PU Coated Fiberglass
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 690g/sqm | Width | 1000mm |
|---|---|---|---|
| Thickness | 0.65mm | Color | Silver Grey |
| Weave | 8H Satin | Temperature Resistance /Working Temperature | 550℃ 1000℉ |
| Coated | PU Single Side | ||
| High Light | fiberglass welding cloth,welding fire blanket rolls |
||
Product Description

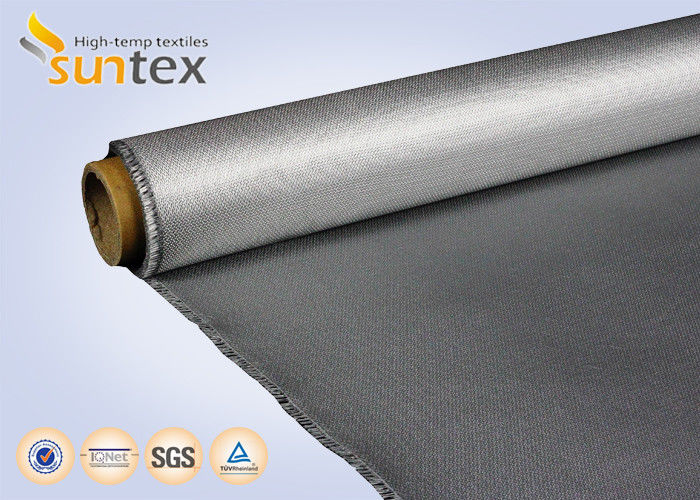

0.65mm M0 Certificate Fire Insulation Welding Blanket Roll PU Coated Fiberglass
General Information
GF660C-PU113-2028 is a woven fiberglass fabric coated with a specially formulated polyurethane aluminum polymer ;
It's designed for the manufacturing of welding blanket ,fire curtains, or other fire control system.
This material can be also used as an attractive alternative for the insulation covers as the cold face to cut down the producing costs.
Main Advantages of this material
1. M0 certified
2. Silver grey or customerized.
3. Good mechanical properties, suitable for further fabricating ,such as sewing and cutting.
4. Good abrasion resistance property and durable.
Technical Data
| Weight | 690 gsm |
| Thickness | 0.65 mm |
| Width | 1000mm or 1520mm |
| Coated | PU |
| Color | Silver grey |
| Fire resistance | M0 |
| Working temperature | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave | 8H Satin |
| Yarn warp | EC9 33 1*6 |
| Yarn weft | EC9 33 1*6 |
| Construction warp | 16.5±1 ends/cm |
| Construction weft | 14.5±1 ends/cm |
The Main Applications
Fire/Smoke curtain
Fire/welding blanket
Flexible compansator
Reusable heat insulation case
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
