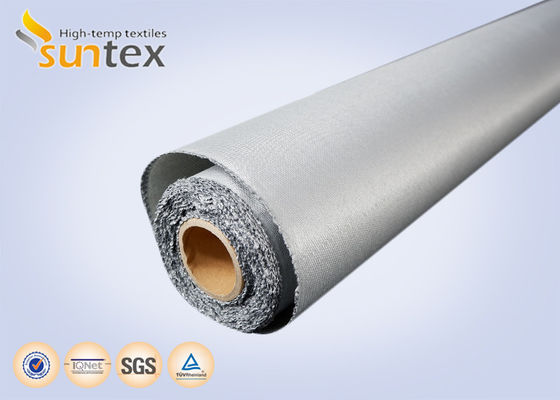

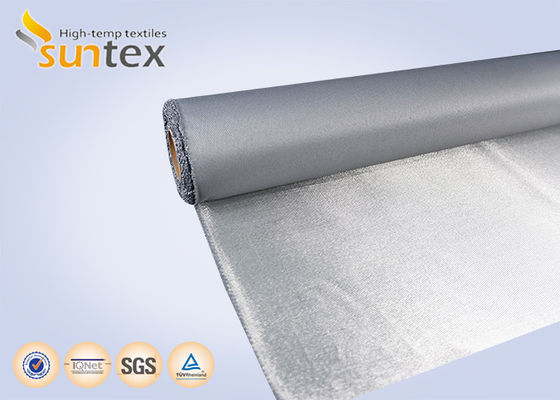

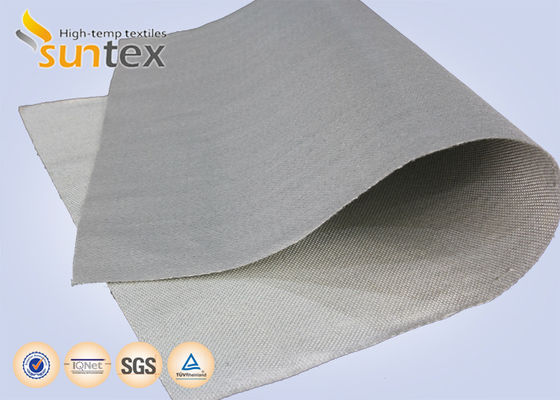

0.7mm Fireproof Glass Fiber Fabric with PU Coating, Ideal for Smoke Curtain & Fire Blanket

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF660S-PU113-2040
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C,Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

coated fiberglass fabric

,

fire retardant cloth
Unit Weight: 20.29 Oz/sq.y
Standard Width: 1000mm 1200mm
Standard Thickness: 0.028 Inch
Colour: Silver Grey
Coating Temperature Resistance: 180℃ 350℉
Basic Fabric Temperature Resistance: 750℃ 1400℉
Coating: Polyurethane 1 Side
Product Description

Heatproof Fabric PU Coated Fabric 0.7mm Glass Fiber Fire Blanket Material Smoke Curtains



Introduce



GF660S-PU113-2040 is a S.S wire reinforced fiberglass fabric with a formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of smoke curtain, heat shield and other types of fire control systems.



Advantage



1. Excellent certified fire resistance.

2. End users can choose the favority face.

3. Easy to be applied, sewn and fabricated.

4. Excellent abrasion resistance property.

5. Excellent tensile strength.

6. Nominal Thickness, unit weight, pattern, all can be customized base on your application/use method.



0.7mm Fireproof Glass Fiber Fabric with PU Coating, Ideal for Smoke Curtain & Fire Blanket



Data



Total weight 20.29 oz/y2
Standard Thickness 0.028 inch
Standard width 1000mm 1200mm
Coated / Coating / Treatment / Surfacing PU/Polyurethane
Colour Silver Grey
Fire resistance Excellence
Coating temperature resistance PU coating 180 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern Crowfoot
Fiberglass E-glass Stainless Steel Wire Reinforced Fiberglass



Applications



Fire curtain

Welding blanket

Compensator

Removable heat insulation couples

Heat insulation pad

Fabric duct



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides



0.7mm Fireproof Glass Fiber Fabric with PU Coating, Ideal for Smoke Curtain & Fire Blanket0.7mm Fireproof Glass Fiber Fabric with PU Coating, Ideal for Smoke Curtain & Fire Blanket
