Product Details:
Payment & Shipping Terms:
|
| Unit Weight: | 21.20 Oz/sq.y | Standard Width: | 1520mm |
|---|---|---|---|
| Standard Thickness: | 0.028 Inch | Colour: | Silver Grey |
| Coating Temperature Resistance: | 350℉ | Basic Fabric Temperature Resistance: | 1000℉ |
| Coating: | Polyurethane 2 Sides | ||
| High Light: | fiberglass welding cloth,fiberglass cloth roll |
||

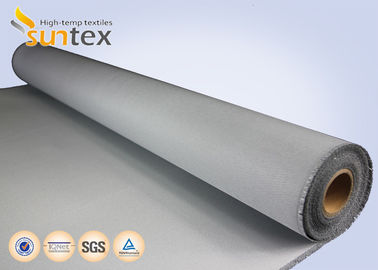

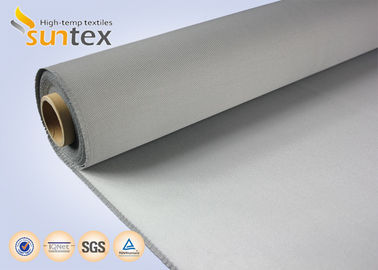

550C High Temperature Resistant PU Coated Fiberglass Welding Blanket Roll 0.7mm Fire Protection
Introduction:
GF660C-PU223-2016 is a woven fiberglass fabric with a specially formulated polyurethane aluminum polymer,this help improve the property of heat reflecting , as well as mechanical property for the further manufacturing of welding blanket & fire control systems.
Other applications are insulation covers where can be used as an attractive alternative to foil faced laminates for less demanding end uses.
Advantages
1. M0 certificate.
2. End users can choose the favority face.
3. Easy to be applied, sewn and fabricated.
4. Well abrasion resistance property.
5. Color can be customized base on your project.
Data
| Total weight | 21.20 oz/y2 |
| Standard Thickness | 0.028 inch |
| Standard width | 1000mm |
| Coating | PU |
| Colour of coating | Silvery Grey |
| Fire resistance | Perfect |
| Coating temperature resistance | PU coating 180 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | 8H Satin |
| Fiberglass | Glassfiber |
fiberglass cloth roll Applications
Fire curtain
Welding blanket
Compensator
Removable heat insulation shell
Heat insulation mat
Fabric ducts
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
