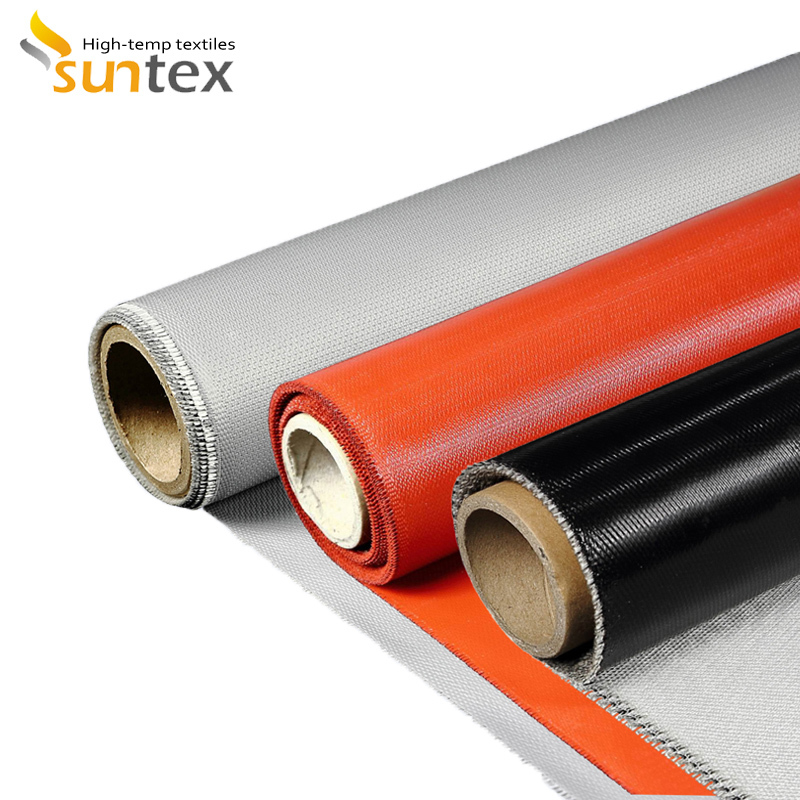

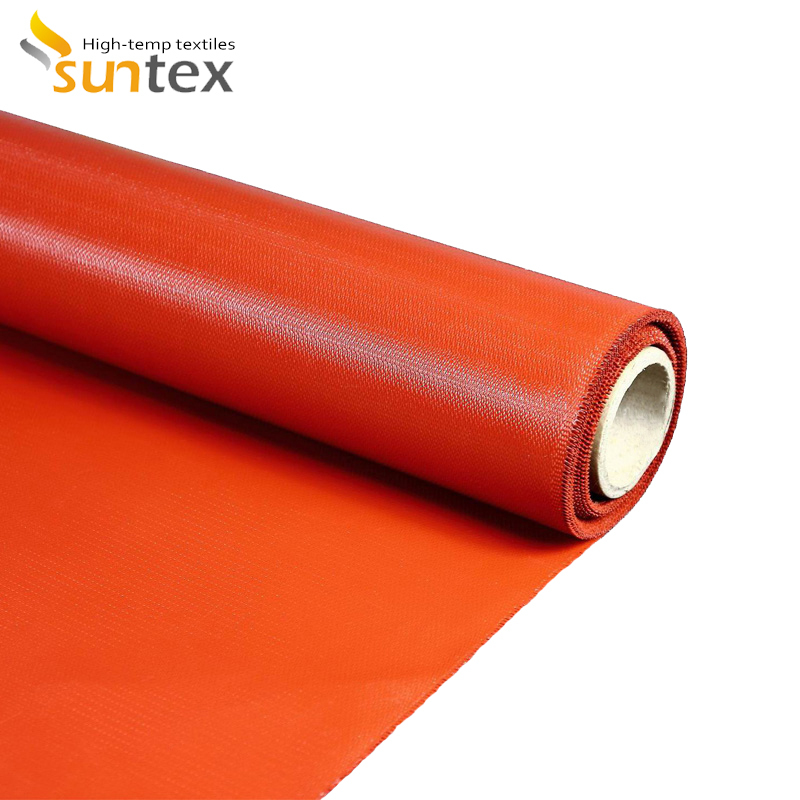

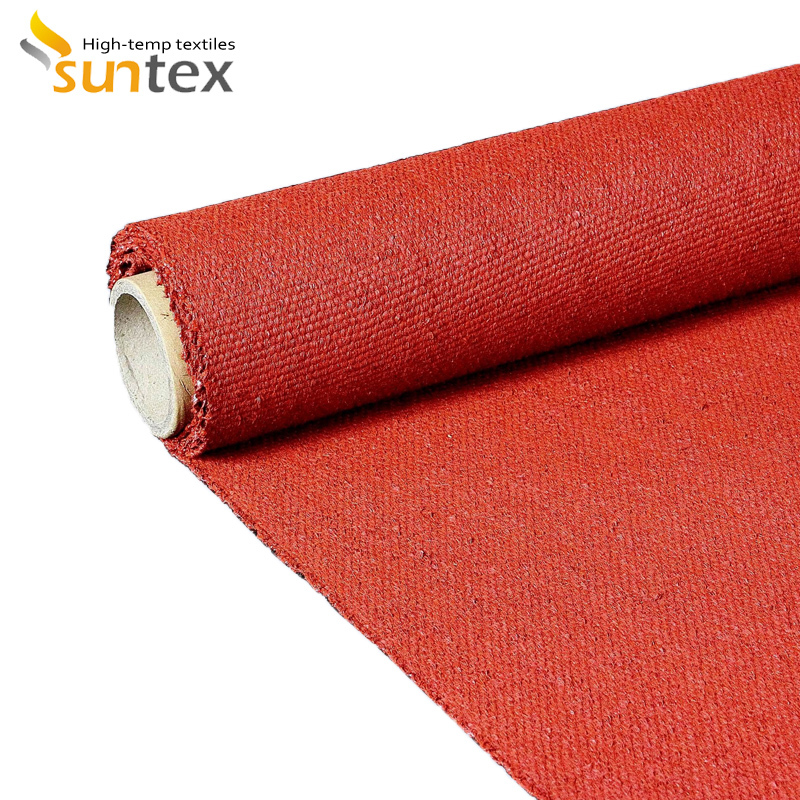

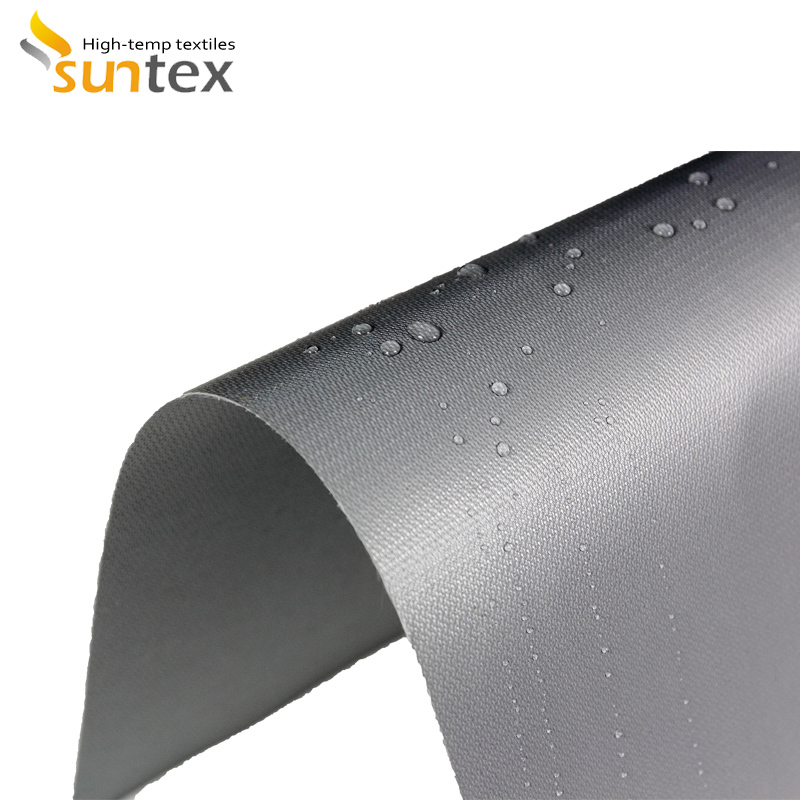

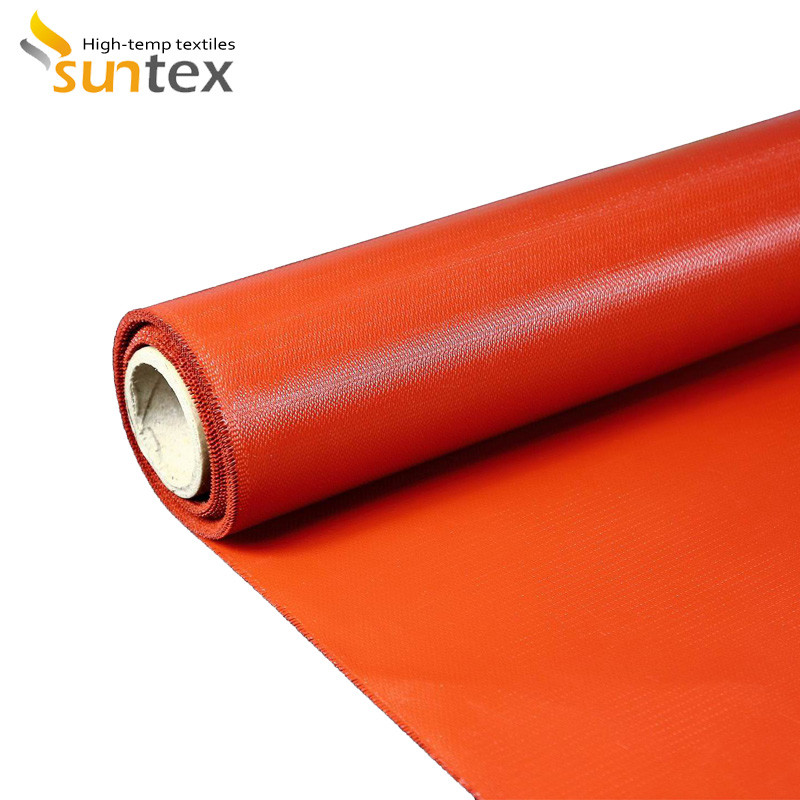

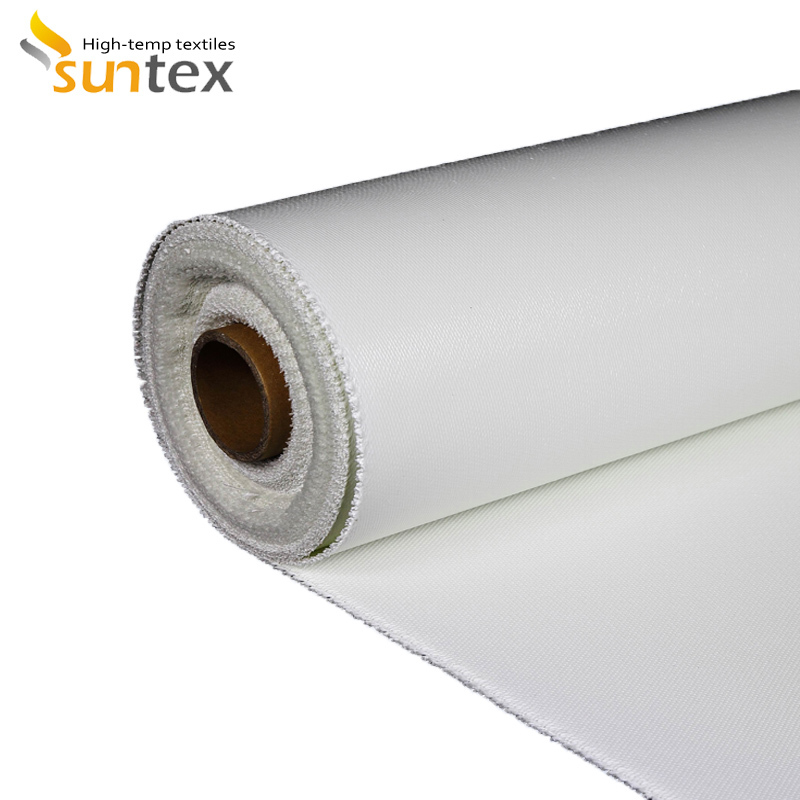

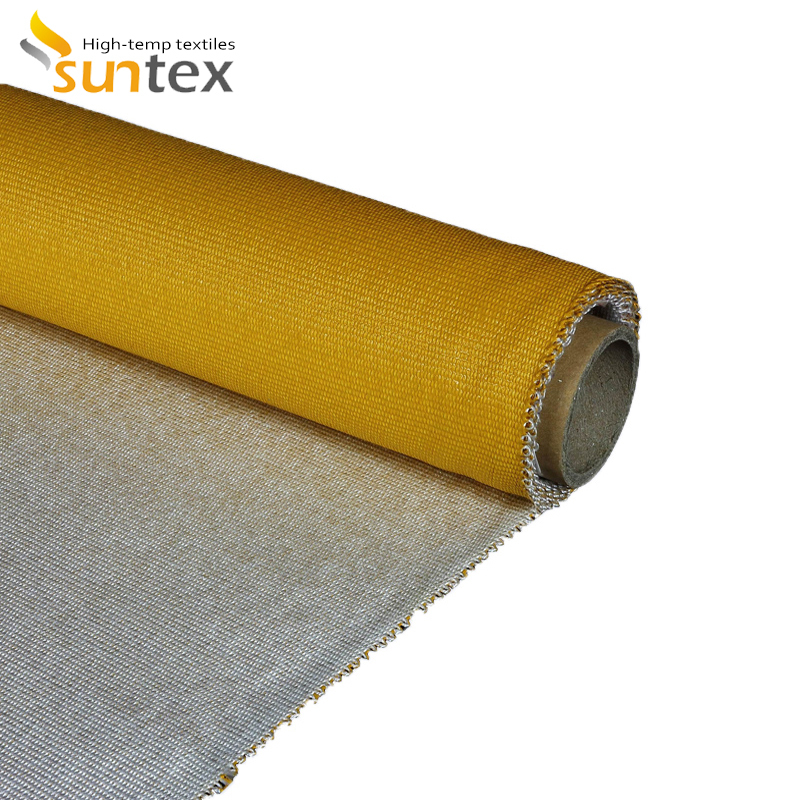

Excellent Weathering Resistant Silicone Rubber Coated Glass Fiber Fabric Fireproof Cloth Blanket Roll
Place of Origin:Jiangsu, China
Brand Name:Suntex
Certification:ISO9001/SGS
Model Number:GF660P-SI165-1023
Minimum Order Quantity:500 Square Meter/Square Meters
Price:US$2.8 - US$12 / Square Meter
Payment Terms:L/C, D/P, T/T
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:
silicone rubber coated fiberglass fabric
,silicone coated fiberglass cloth
Coating:
One Or Two Side Silicone Rubber
Yarn Type:
E-Glass
Alkali Content:
Alkali Free
Weight:
960 G/m2
Thickness:
0.72mm
Width:
1m 1.2m 1.5m 1.8m 2m Or Customized
Colors:
Red,grey,black,green,and Customed Colors
Temperature Resistance:
-50~+250 Degree C
Application 1:
Welding Protection, Heat Protection Quilt, Expansion Joints
Application 2:
Packing Materials, Aerospace, Marine, Chemical Industry
Application 3:
Power Plant, Automobile Manufacturer, Construction, Piping, Oil Plants
Product Description
Excellent Weathering Resistant Silicone Rubber Coated Glass Fiber Fabric Fireproof Cloth
Product Description
usage: smoke curtain, thermal insulation, welding protection, heat protection quilt, expansion joints, packing materials, aerospace, marine, chemical industry, power plant, automobile manufacturer, construction, piping, oil plants
color: red, black, white, grey, blue, yellow, or customized

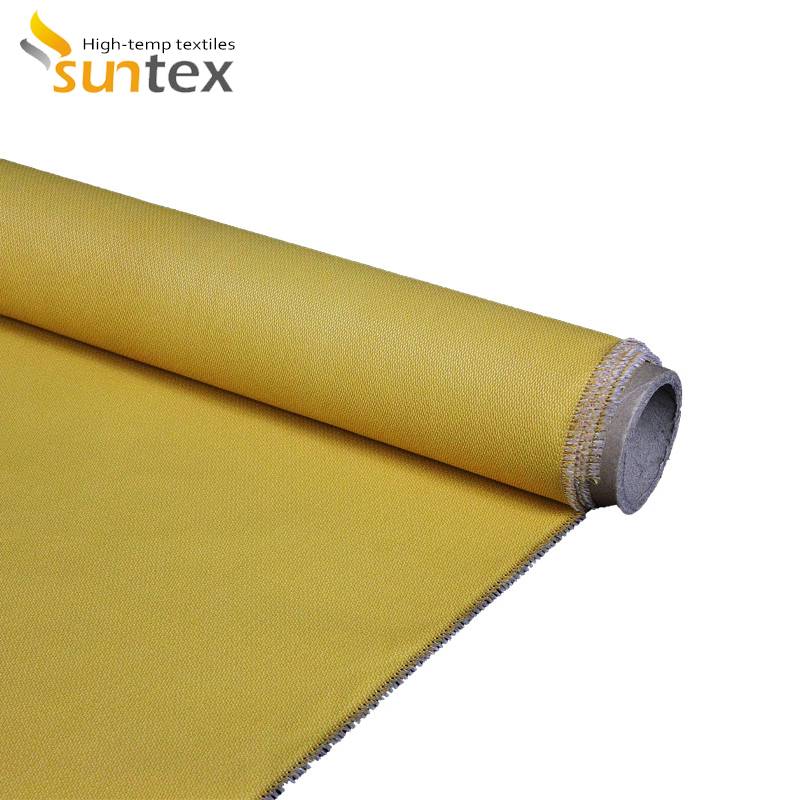

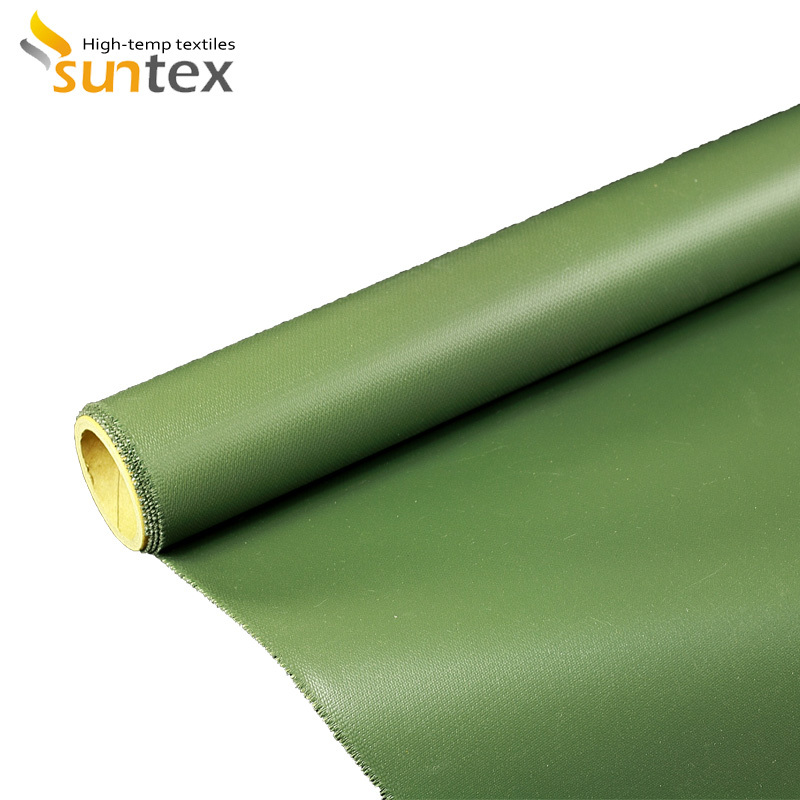

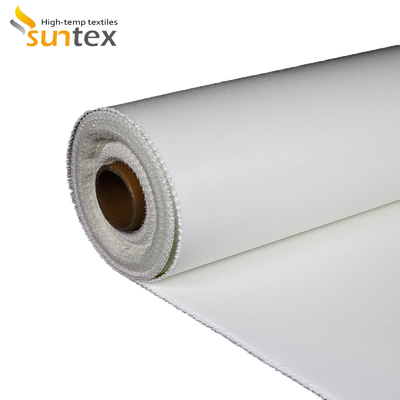

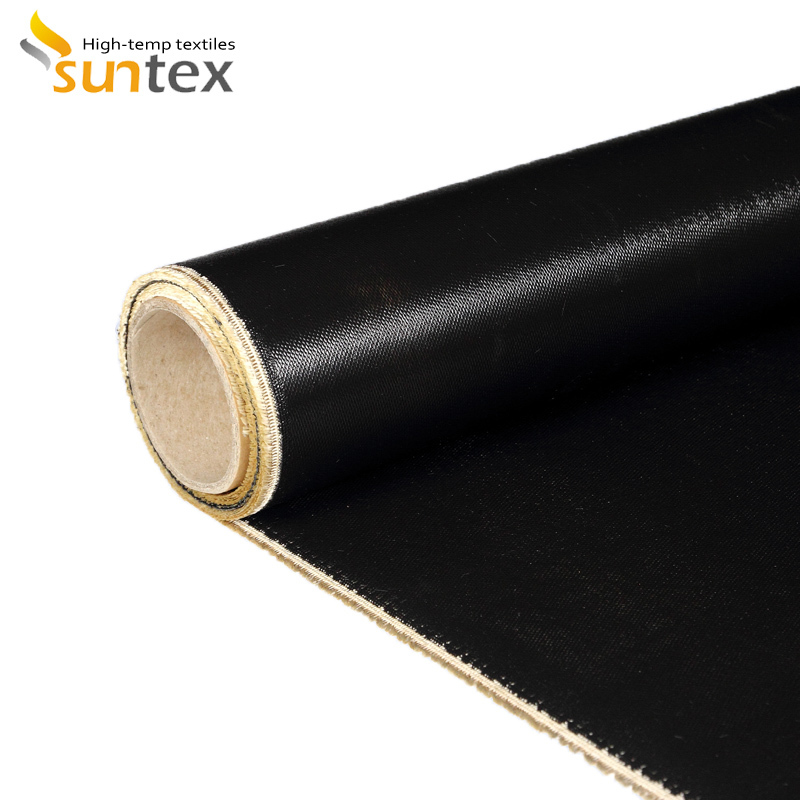

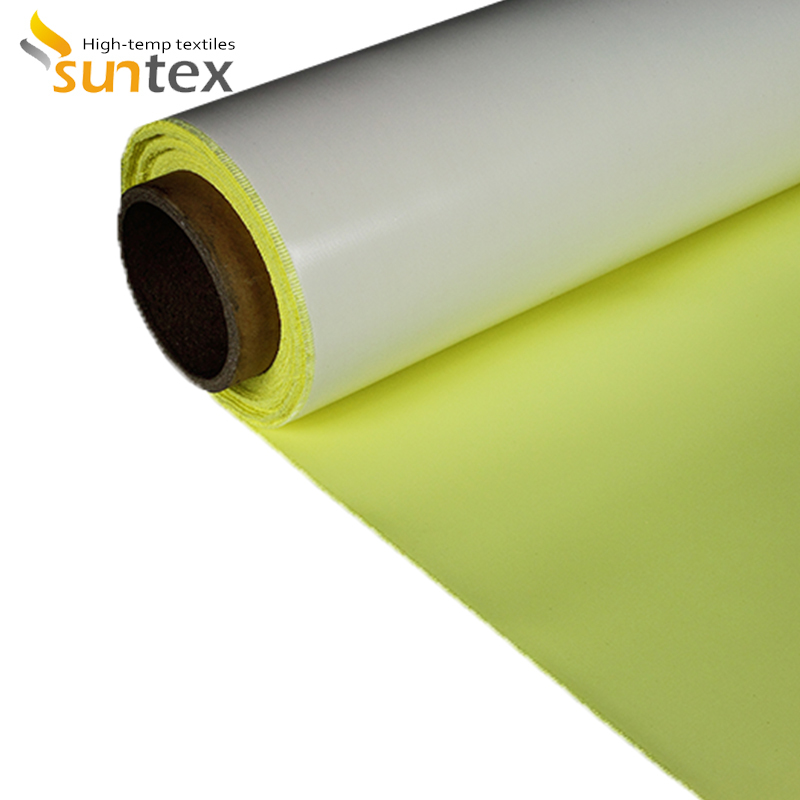

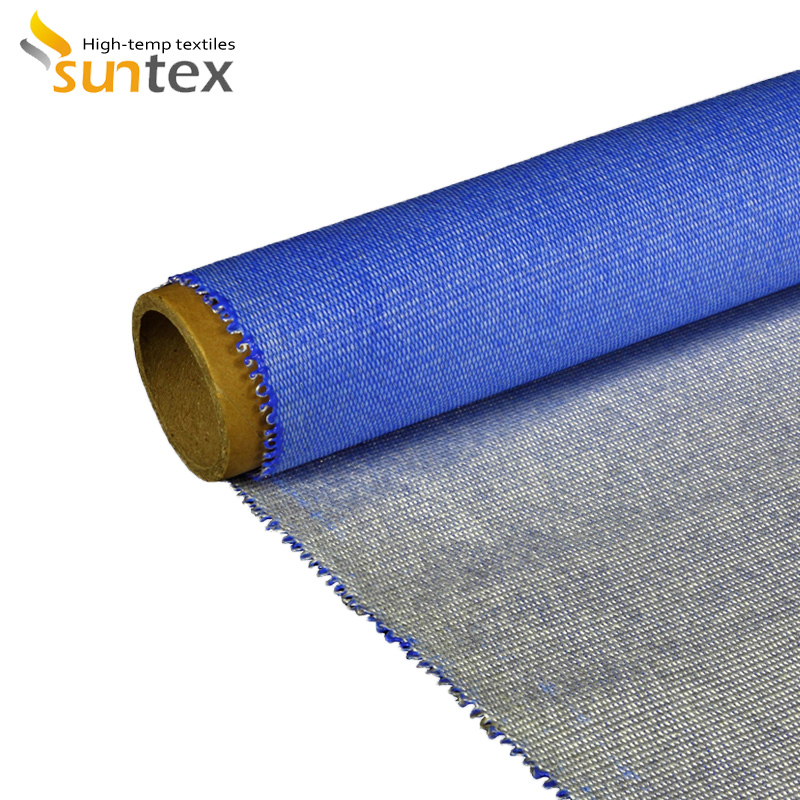

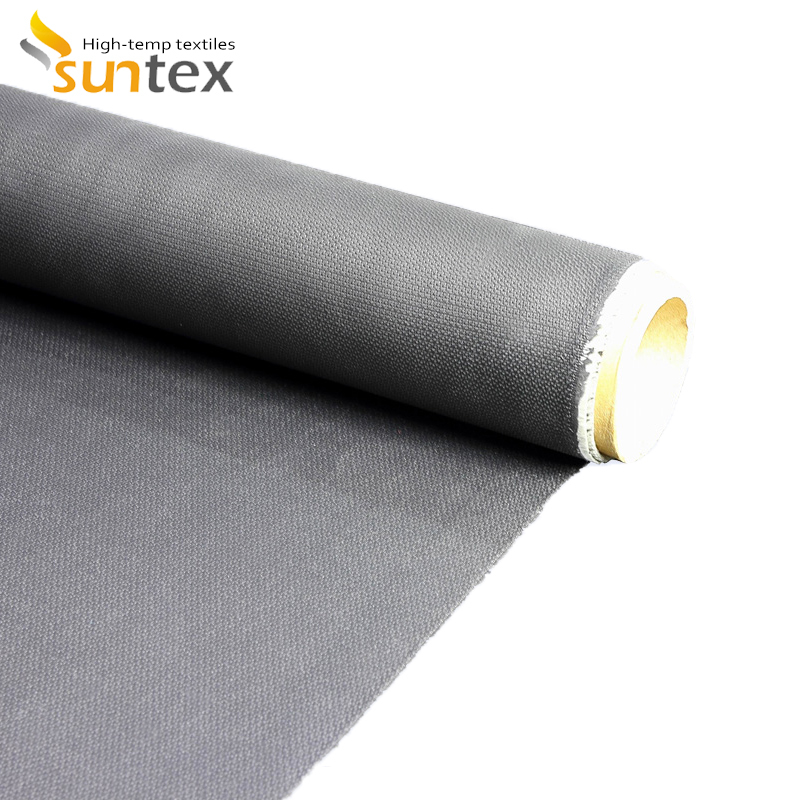

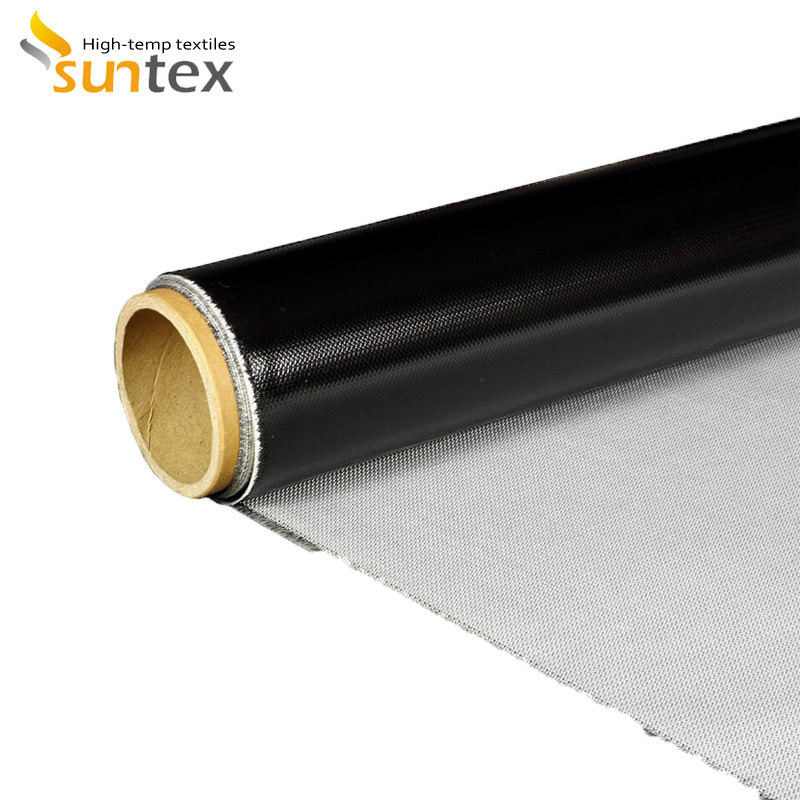

Product Show
Product Details
Product Application
| BASE FABRIC | Base fabric style No. GF660P | |||
| (Metric) | (English) | Test methods | ||
| Weave | 8H Satin | 8H Satin | ||
| Yarn | ||||
| Warp | EC9 68 1*3 | ECG 75 1/3 | ||
| Weft | EC9 68 1*3 | ECG 75 1/3 | ||
| Construction | ||||
| Warp | 16 ± 1 ends/cm | 41± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 15± 1 picks/cm | 38 ± 2 picks/inch | ASTM D 3775-96 | |
| Weight | 660 ± 45 g/m2 | 19.4 ± 1.3 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0. 6 ± 0.06 mm | 0.024 ± 0.002 inch | ASTM D1777-96 | |
| COATED FABRIC | Coating style No. SI165-1023 | |||
| Coating | Silicone rubber coated on 1 side | |||
| Weight | 960 ± 50 g/m2 | 28 ± 1.4 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.72 ± 0.05 mm | 0.028 ±0.002 inch | ASTM D1777-96 | |
| Color | Black | |||
| Fire resistance | Flame retardant | |||
| Temp resistance | 2500C | 4800F | ||
