| Weight: | 460g/sqm | Width: | 1000mm 1300mm 1550m 2000m |
|---|---|---|---|
| Thickness: | 0.41mm | Color: | Grey/White |
| Weave: | 4H Satin | Temperature Resistance: | 550℃ 1000℉ |
| Coated: | PU Two Sides | Fiberglass: | E-glass |
| High Light: | expansion joint cloth,silicone fiberglass cloth |
||

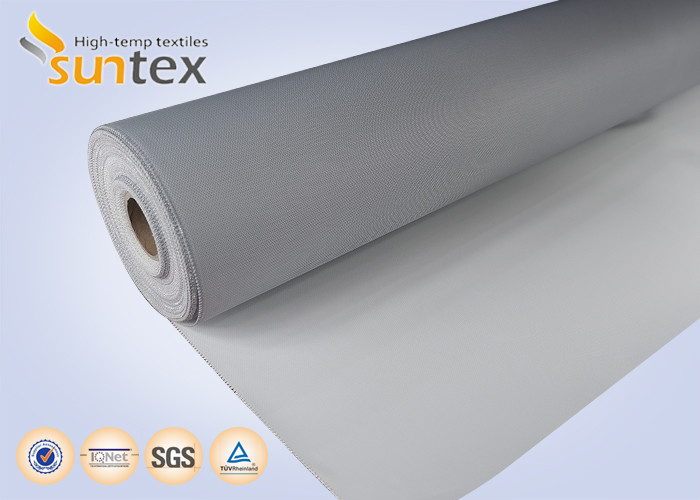

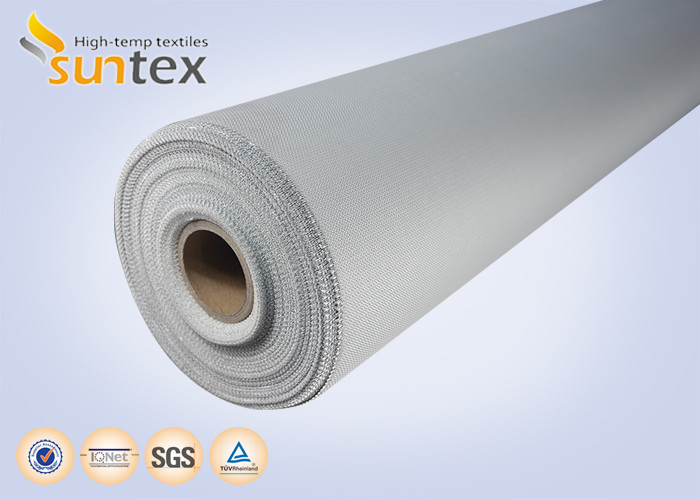

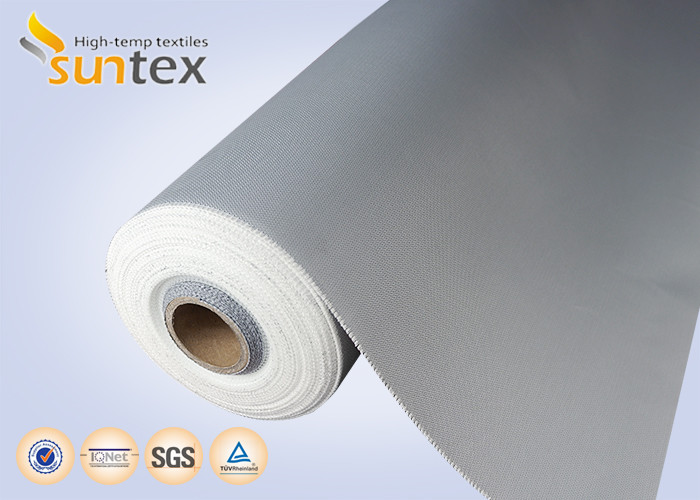

High Temperature Resistant Fabric Expansion Joint Cloth PU Coated Fiberglass M0 0.41mm
Introduce
GF430P-PU21B-2007 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer. GF430P-PU21B-2007 is the fabric applied for textile HVAC system. The other applications for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems.
Advantage
1. M0 certified fire resistance.
2. Various color available.
3. Easy to be used, sewn and fabricated.
4.Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Data
| Weight | 460 g/m2 |
| Thickness | 0.41 mm |
| Width | 1000mm 1300mm 1550mm 2000mm |
| Coated | PU |
| Color | Grey/White |
| Fire resistance | M0 |
| Working temperature | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave | 4H Satin Fiberglass Fabric |
| Yarn warp | EC9 136 1*0 |
| Yarn weft | EC9 136 1*0 |
| Construction warp | 18±1 ends/cm |
| Construction weft | 12.6±1 ends/cm |
| Fiberglass | E-Glass |
Applications
Smoke curtain
Fire blanket
Expansion joint
Reusable thermal insulation cover
Thermal insulation pad
Air duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
