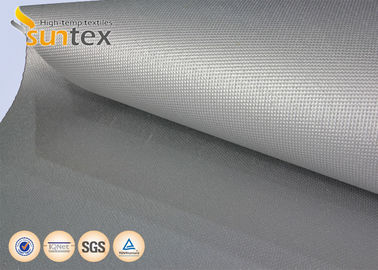

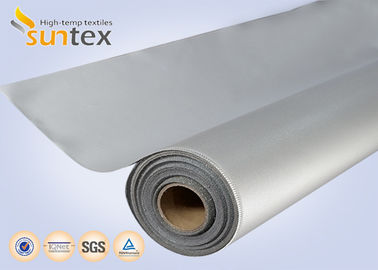

Colored E-Glass Fiberglass Thermal Insulation Cloth For Industry Pipe Cover

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF431P-SI233-1066
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

silicone rubber coated fiberglass cloth

,

silicone impregnated fiberglass fabric
Width: 1 M / 1.5 M / 1.55 M
Color: Silver Grey
Brand: Suntex
Temperature Resistance: From -50 C Degree To 550 C Degree
Weight: 560 G/M2
Thickness: 0.45 Mm
Coating: Grey Silicone Rubber On 2 Side
Origin: China
Roll Length: 50 Meter
Application: Insulation Material
Product Description

Colored E-Glass Thermal Protection Case Cloth For Industry Pipe Covers



Description:



Fiberglass is a material consisting of numerous extremely fine fibers of glass. Glass fiber is formed when thin strands of silica-based or other formulation glass is extruded into many fibers with small diameters suitable for textile processing. These are useful because of their high ratio of surface area to weight. However, the increased surface area makes them much more susceptible to chemical attack.

Woven from glass fiber texturised yarn upon shuttle looms to produce required size. Fiberglass cloth is used as heat insulating material and an excellent substitute for asbestos cloth. It is widely applied as insulation of soft or hard tubes, heat insulation covering of heater and cooler, fire resistant shell, other insulation protecting covering and insulation of watercraft equipment because of its brilliant characteristics of high intensity, low density and good insulation



Parameter List:



 FABRIC Style No. SI233-1066
Coating Silicone rubber coated on both sides
Weight 560 ± 30 g/m2 16.47 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.45 ± 0.03 mm 0.018 ± 0.0012 inch ASTM D1777-96
Color SilverGrey
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2600C (4800F)



Application:



Pipe Shield

Heat and cold insulation jacket

Fire protection for welding blanket or escape blanket

Smoke curtain

Fire door

Non metal compensator



Advantage:



Manufacturer price

Easy to cut and sew

Water proofing

Chemical retardant

Good process performance and low fuzz

Compatibility with multiple resin systems

Complete and fast wet-out

Good mechanical properties

Colored E-Glass Fiberglass Thermal Insulation Cloth For Industry Pipe Cover
