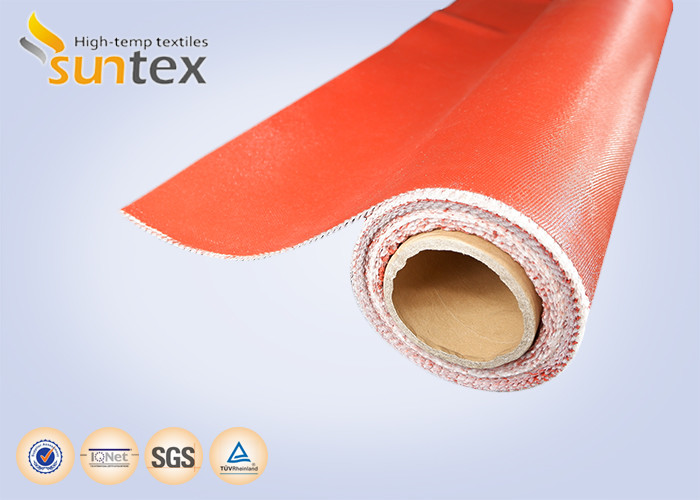

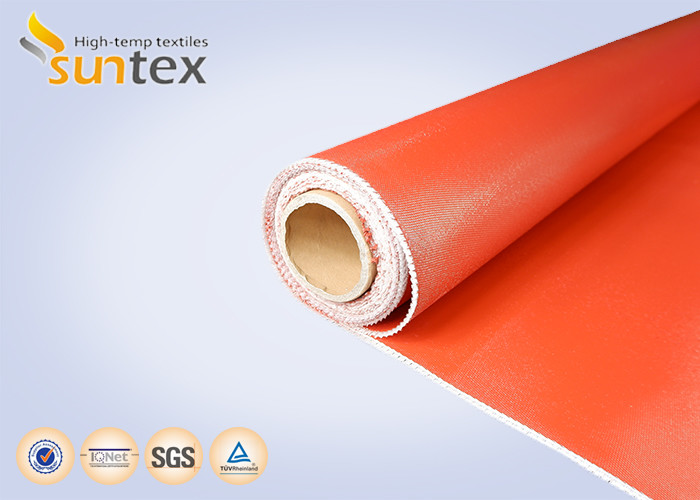

Red Flexible Connector Thermal Insulation Fabric Silicone Coated Glass Cloth

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF660P-SI264 –1022
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

silicone impregnated fiberglass fabric

,

heat reflective fabric

Width: 1.5 Meter Or OEM
Color: Red
Brand: Suntex
Temperature Resistance: From -50 C Degree To 500 C Degree
Weight: 960 G/sqm
Thickness: 0.72 Mm
Coating: Red Color Silicone Rubber On 2 Side
Application: Insulation Covers
Product Description

Red Flexible Connector Fabrics Material Silicon Glass Fibre Cloth



Description:



Woven from glass fiber texturised yarn upon shuttle looms to produce required size. Fiberglass cloth is used as heat insulating material and an excellent substitute for asbestos cloth. It is widely applied as insulation of soft or hard tubes, heat insulation covering of heater and cooler, fire resistant shell, other insulation protecting covering and insulation of watercraft equipment because of its brilliant characteristics of high intensity, low density and good insulation



Fiberglass is a material consisting of numerous extremely fine fibers of glass. Glass fiber is formed when thin strands of silica-based or other formulation glass is extruded into many fibers with small diameters suitable for textile processing. These are useful because of their high ratio of surface area to weight. However, the increased surface area makes them much more susceptible to chemical attack.


Parameter List:



BASE FABRIC Base fabric style No. GF660P
  (Metric) (English) Test methods
Weave 8H Satin 8H Satin

COATED FABRIC Coating style No. SI264-1022
Coating Silicone rubber coated both sides
Weight 960 ± 50 g/m2 28 ± 1.4 oz/yd2 ASTM D3776-96
Thickness 0.72 ± 0.05 mm 0.028 ±0.002 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance 2500C 4800F



Application:



Fire-proof materials (fireproof protective cloth, fireproof curtain, fireproof blanket etc.)

Aerospace thermal ablation materials

Engine exhaust insulation materials

Industrial metallurgy & furnace thermal insulation materials

High temperature insulation materials

High temperature gas/liquid filtration material or distinguisher materials and dust collecting material

Electronic equipment heat insulation materials



Advantage:



Compatibility with multiple resin systems

Complete and fast wet-out

Good mechanical properties

Easy to cut and sew

Oil retardant, chemical resistant

Red Flexible Connector Thermal Insulation Fabric Silicone Coated Glass Cloth
