Product Details:
Payment & Shipping Terms:
|
| Unit Weight: | 14.5 Oz/sq.yard | Standard Width: | 1520mm 1550m |
|---|---|---|---|
| Standard Thickness: | 0.017 Inch | Colour: | Black |
| Pattern: | 4H Satin | Basic Fabric Working Temperature: | 550℃ 1000℉ |
| Coating: | PU Both Sides | PU Coating Working Temperature: | 180℃ |
| High Light: | fireproof fiberglass cloth,fiberglass welding cloth |
||

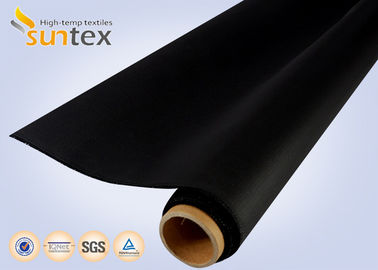

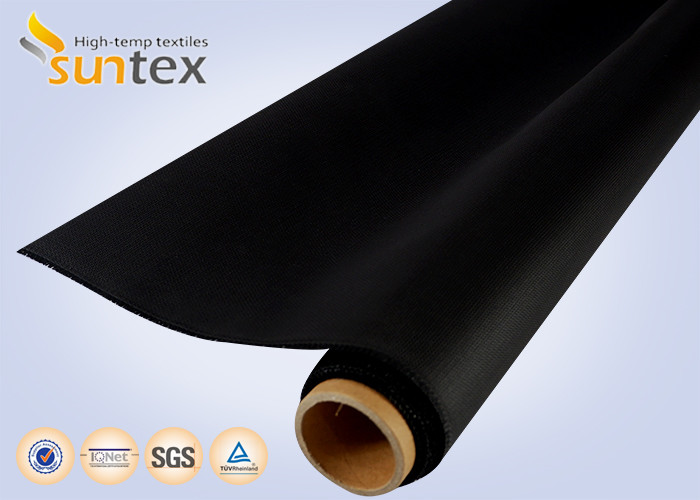

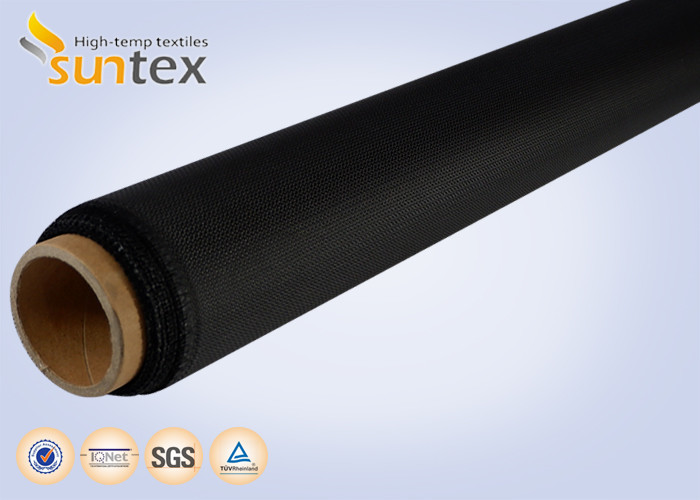

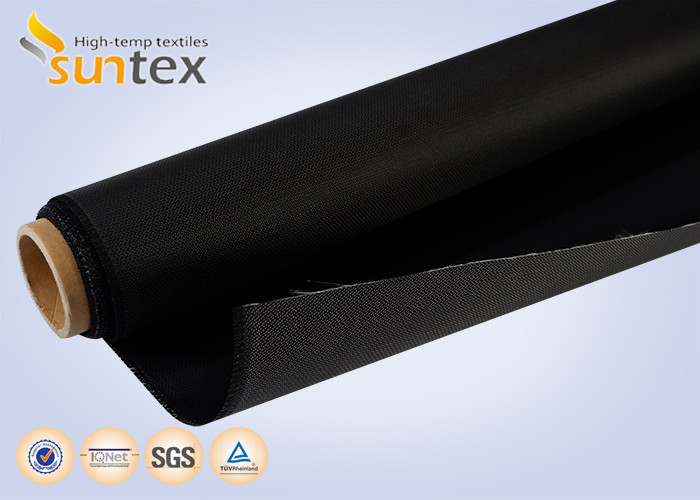

0.43mm PU Coated Fiberglass Fire/smoke Curtain Fabric Black Air Distribution Ducts
Introduce
GF430P-PU225-2013 is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer. GF430P-PU225-2013 is specially designed for the flexible connector.
Advantage
1. Good certified fire resistance.
2. All kinds of colour available.
3. Easy to be applied, sewn and fabricated.
4. Well abrasion resistance property.
5. Well tensile strength.
6. Standard Thickness,unit weight, pattern, all can be customized base on your use method.
Data
| Unit Weight | 14.5 OZ/yard2 |
| Standard Thickness | 0.017 inch |
| Standard Width | 1300mm 1550mm |
| Coating | Polyurethane |
| Colour | Noir |
| Fire resistance | Perfect |
| Coating temperature resistance / Coating working temperature | PU coating 180 ℃ |
| Basic fabric working temperature / Basic temperature resistance | Basic fabric 550 ℃ |
| Pattern | 4H Satin |
| Fiberglass | E-Glass |
Applications
Fire curtain
Welding blanket
Flexible connector
Removable heat insulation shell
Thermal insulation mat
Fabric ducts
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
