Product Details:
Payment & Shipping Terms:
|
| Weight: | 620g/sqm Fiberglass Fabric | Width: | 1000mm 1300mm 1550m 2000m |
|---|---|---|---|
| Thickness: | 0.77mm | Color: | Silver Grey |
| Weave: | Plain | Temperature Resistance /Working Temperature: | 550℃ 1000℉ |
| Coated: | PU One Side | Fiberglass: | E-glass Texturized Woven Fabric |
| High Light: | fabric expansion joint material,silicone fiberglass cloth |
||

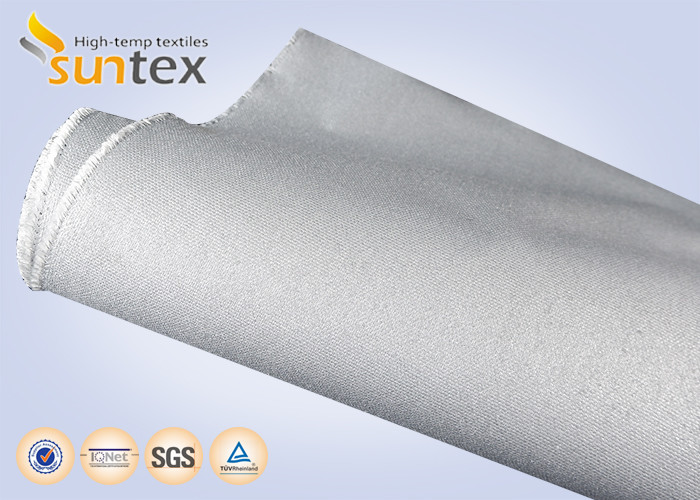

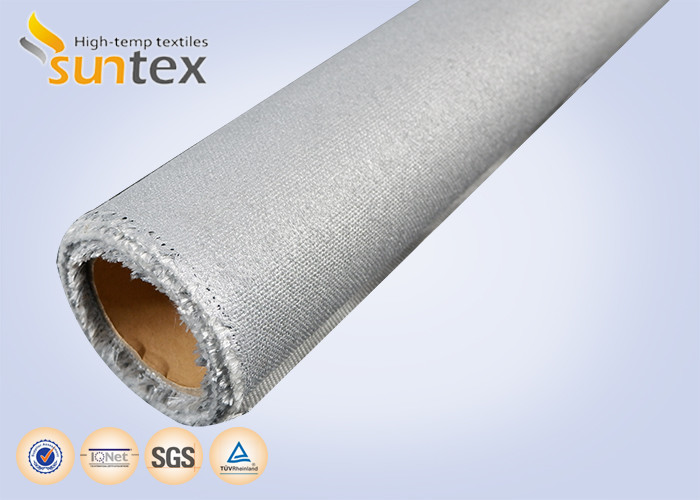

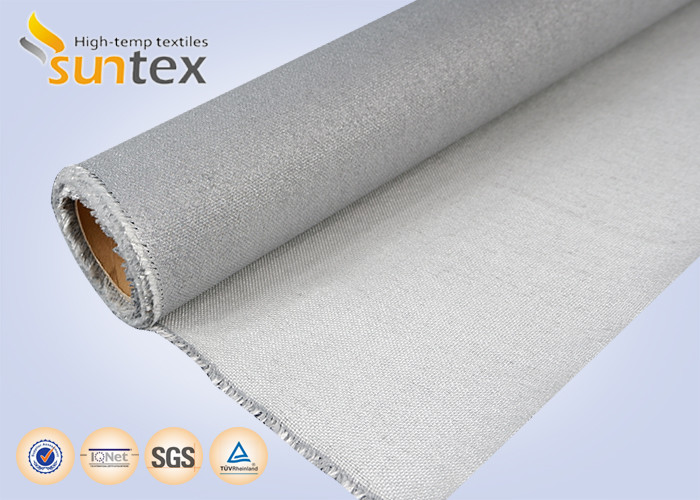

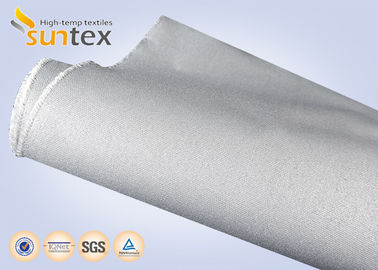

Fiberglass Cloth Roll PU Coated Fiberglass Fabric 0.77mm For Fabric Expansion Joints Fire Curtains
Introduce
TGF580-PU113-2019 is a texturized fiberglass fabric with a specially formulated aluminuim polymer and polyurethane solution which provides a heat reflecting surface as well as other properties for the manufacturer of fabric expansion joint, flexible ducts, smoke and fire curtains, fire barriers and other types of smoke and fire control systems.
Advantage
1. M0 certified fire resistance.
2. Silvery color. Various color available.
3. Easy to be used, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Data
| Weight | 620 g/m2 |
| Thickness | 0.77 mm |
| Width | 1000mm 1520mm 1550mm 2000mm |
| Coated | PU |
| Color | Silver Grey |
| Fire resistance | M0 |
| Working temperature | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave/Pattern | Plain |
| Yarn warp | ET9 430 tex |
| Yarn weft | ET9 68 1*3 |
| Construction warp | 8±0.8 ends/cm |
| Construction weft | 5.7±0.6 ends/cm |
| Fiberglass | E-Glass Texturized Woven Fabric |
Applications
Smoke curtain
Fire blanket
Expansion joint
Reusable thermal insulation couples
Thermal insulation pad
Air duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
