Product Details:
Payment & Shipping Terms:
|
| Weight: | 1070g/sqm | Width: | 1000mm 1520mm 1550m 2000m |
|---|---|---|---|
| Thickness: | 1.2mm | Color: | Green |
| Weave: | Plain | Temperature Resistance /Working Temperature: | 550℃ 1000℉ |
| Coated: | PU One Side | Fiberglass: | E-glass Texturized Woven Fabric |
| High Light: | fireproof fiberglass cloth,fire retardant cloth |
||

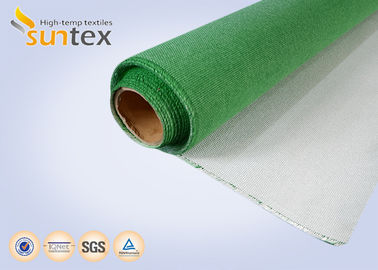

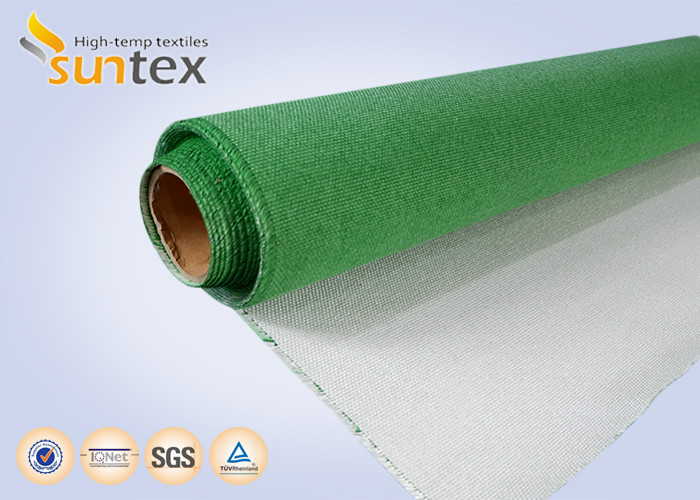

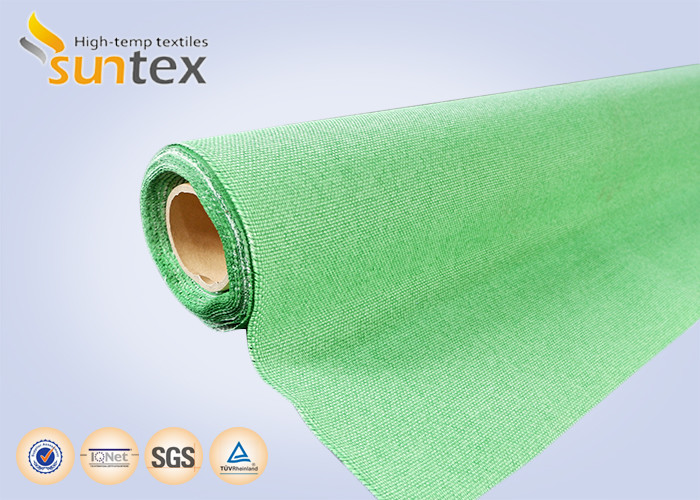

Thermal Insulation Fiberglass Fabric PU Coated Fiberglass Fabric 1.2mm Thermol Insulation Cover
Introduce
TGF1020-PU111-2025 is a heavy weight texturized fiberglass fabric with a specially formulated polyurethane polymer which provides good fire resistance It’s used for flexible expansion joint, removable jackets and other types of fire control systems.
Advantage
1. Good certified fire resistance.
2. Green color. Various color available.
3. Easy to be used, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
Data
| Weight | 1070 g/m2 |
| Thickness | 1.2 mm |
| Width | 1000mm 1520mm 1550mm 2000mm |
| Coated | PU |
| Color | Green |
| Fire resistance | Good |
| Working temperature | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave | Plain |
| Yarn warp | ET9 860 tex |
| Yarn weft | ET9 1290 tex |
| Construction warp | 6±0.5 ends/cm |
| Construction weft | 5±0.2 ends/cm |
| Fiberglass | E-Glass Texturized Woven Fabric |
Applications
Smoke curtain
Fire blanket
Expansion joint
Reusable thermal insulation cover
Thermal insulation pad
Air duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
