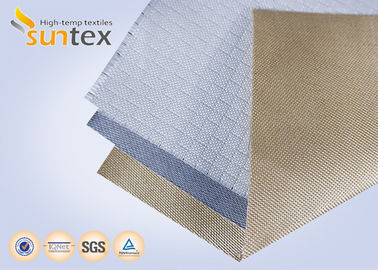

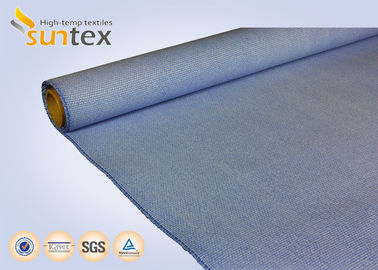

33 OZ Blue Calcium High Temperature Fiberglass Cloth For Fire Door And Smoke Curtain

Place of Origin China
Brand Name SUNTEX
Model Number TGF1000P-CS232-5014
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Blue Or OEM Origin Hubei, China
Main Application Thermal Insulation / Fire Curtain / Flexible Duct Temperature Resistant 750 C
Weight 33 OZ Fiberglass Cloth Thickness 0.059''
Fabric Width 1.5 Mtr Or Customized Size Roll Length 50 Mtr
Weave Tape Plain
High Light

fiberglass cloth heat resistant


high temperature fabrics

Leave a Message
Product Description

33 OZ Blue Calcium Silicate Fabrics For Fire Door And Smoke Curtain Flame Resistant




Calcium Silicate Fiberglass Cloth is a natural mineral which provides a natural inorganic finish to fiberglass. This coating provides short temperature resistance of 1000C degree and increased continuous temperature resistance temperature up to 800C degree. Calcium Silicate coated fiberglass cloths increase the products’ abrasion resistance and adds to its ability to withstand direct flame, it also provide a dust suppression coating which allows for a safer work environment.


Fiberglass Cloth​ Date sheet:


FABRIC Style No. CS232-5014
Coating Calcium silicate treated on both sides
Weight 1100 ± 50 g/m2 32.3 ± 1.5 oz/yd2 ASTM D3776-96
Thickness 1.35 ± 0.05 mm 0.053 ±0.002 inch ASTM D1777-96
Color Blue
Temp resistance 7000C 13000F




Fire doors/smoke curtain

Dusts filter bag

Flexible expansion joints & compensators

Removable insulation mattress, jacket & pad


Fiberglass Cloth​ Advantages:


High temperature resistance

Excellent anti abrasion property

Easy to be cut, sewn and fabricated

15 years experience Chinese supplier

3 part certificate insulation verified

High temperature esiatent up to 1000C

Short lead time

Manufacturer price

33 OZ Blue Calcium High Temperature Fiberglass Cloth For Fire Door And Smoke Curtain 0
