| Total Weight/ Nominal Weight: | 690g/sqm | Nominal Width: | 1000mm 1200mm 1520mm |
|---|---|---|---|
| Nominal Thickness: | 0.7mm Fiberglass Fabric | Color: | Silver Grey |
| Coating Temperature Resistance: | 180℃ | Basic Fabric Temperature Resistance: | 650℃ |
| Treatment: | PU Single Side | ||
| High Light: | coated fiberglass fabric,fire retardant cloth |
||

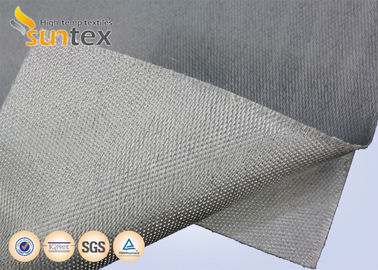

Stainless Steel Wire Reinforced Fiberglass With PU Coating 0.7mm Fire Blanket Smoke Curtains High Strength
Introduce
GF660S-PU113-2040 is a S.S wire reinforced fiberglass fabric with a formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of smoke curtain, heat shield and other types of fire control systems.
Advantage
1. Awesome certified fire resistance.
2. End users can choose the favority face.
3. Easy to be used, sewn and fabricated.
4. Awesome abrasion resistance property.
5. Awesome tensile strength.
6. Thickness, unit weight, weave, all can be customized base on your application.
Data
| Unit weight | 690 g/sq.m |
| Nominal Thickness | 0.7 mm |
| Nominal Width | 1000mm 1520mm |
| Treatment | PU 1 side |
| Color of coating | Silver Grey |
| Fire resistance | Excellence |
| Temperature resistance | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave | 8H Satin |
| Fiberglass | E-glass Stainless Steel Wire Reinforced Fiberglass |
Applications
Fiberglass Fabric Smoke curtain
Welding blanket
Flexible sleeve
Removable thermal insulation shell
Thermal insulation mat
Flexible duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q:Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q:What is your delivery time?
A:Generally we will within 30 days of delivery to you
4. Q:Can you product the customized goods?
A:Surely, we can be customized according to your demanding.
5. Q:What kinds of payment you accept?
A:We accept T/T, L/C ,D/P or other.
6. Q:Do you have other production?
A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass
fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,
Aluminized aramid fabric . We are looking forward to your enquiry.
