| Temperature: | 550 C Degree | Treatment: | Black Acrylic Coated |
|---|---|---|---|
| Application: | Welding Protection | Weaving: | Plain |
| Width: | 72'' | Thickness: | 0.031inch |
| Density: | 24oz | ||
| High Light: | fiberglass fabric roll,high temp fabric |
||

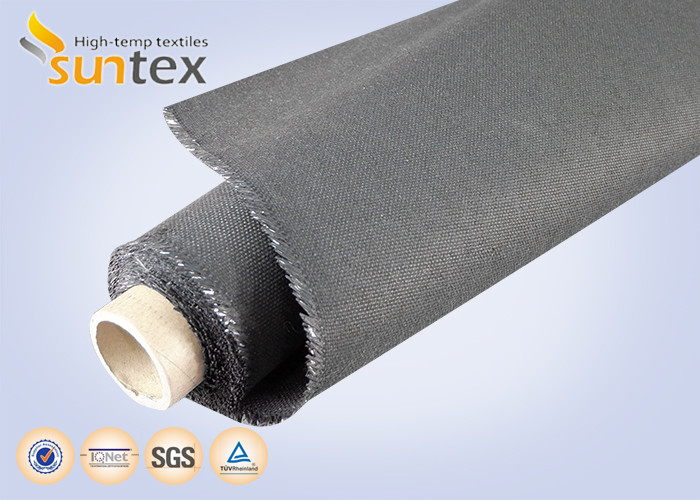

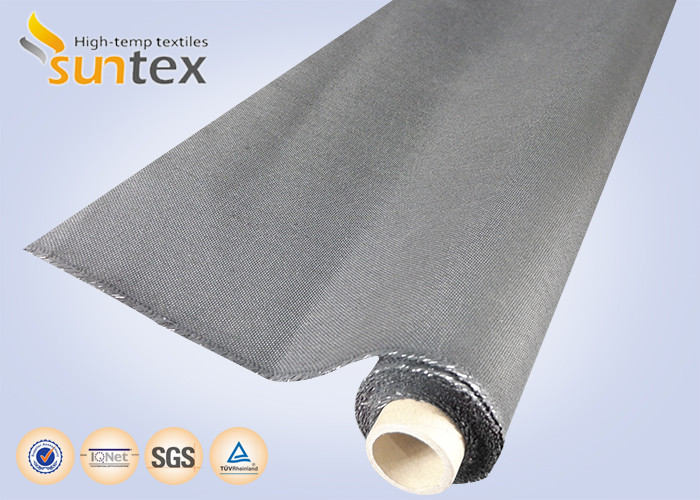

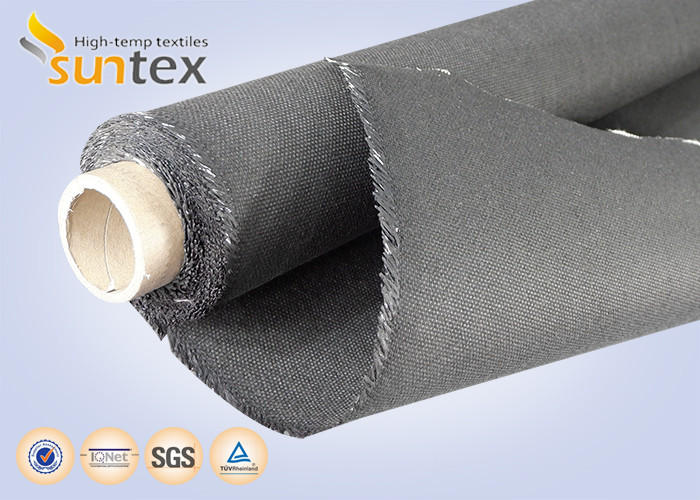

24oz Acrylic Coated Twill Weave Fire Resistant Fiberglass Fabric Welding Protection
TGF680-AC235-3015 is a medium weight texturized fiberglass fabric, weave set finish, provide good hand, minimal dust, and ease of application. It’s used for welding protection blanket, barriers and other types of fire control systems.
Acrylic fiberglass has excellent resistance to high temperature up to temp. 5500C,self-extinguishes in 2 seconds when moving away from fire.
Acrylic treatment reduces the airborne of glass ,improves the machnical performance . Coated Fiberglass Fabric is asbestos-free,no harm to human being or animals.
Except black, color customerized available.
Technical Data:
| BASE FABRIC | Base fabric style No. TGF680 | ||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | ET9 560 tex | ETG 8.9 | |
| Weft | ET9 560 tex | ETG 8.9 | |
| Construction | |||
| Warp | 8.1 ± 0.6 ends/cm | 21 ± 1 ends/inch | ASTM D 3775-96 |
| Weft | 5.2 ± 0.5 picks/cm | 13 ± 1 picks/inch | ASTM D 3775-96 |
| Weight | 680 ± 30 g/m2 | 20 ± 0.88 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.75 ± 0.5 mm | 0.029 ± 0.019 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. AC235-3015 | |||
| Coating | Acrylic weave-set finish on both sides, high add-on. | |||
| Weight | 816 ± 40 g/m2 | 24 ± 1.2 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.8 ± 0.5 mm | 0.032 ±0.019 inch | ASTM D1777-96 | |
| Color | Black | |||
| Temp resistance | 5500C | 10000F | ||
Advantages:
1. Good mechanical properties
2. Easy to be holed, sewn and fabricated.
3. Excellent abrasion resistance property.
4. Excellent tensile strength.
5. Bears temperature up to 550 C degree
Main applications:
1. Fireproof curtain
2. Fire/ welding blanket
3. Industrial metallurgy & furnace thermal insulation jackets
