| Temperature: | 550 C Degree | Color: | Black Or OEM |
|---|---|---|---|
| Application: | Fire Protection | Width: | 72'' |
| Thickness: | 1mm | Density: | 30 Oz |
| Treated: | Acrylic Coated | ||
| High Light: | acrylic coated fiberglass,fiberglass fabric roll |
||

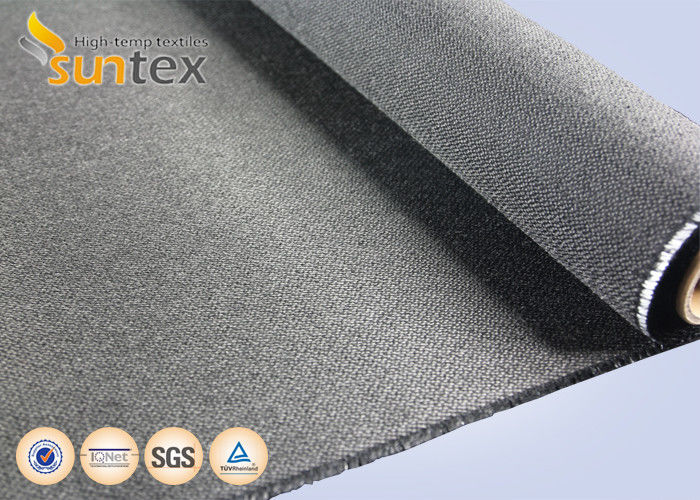

Acrylic Coated 100% Fiberglass Fire Blanket Blankets
TGF880-AC225-3008 is a medium weight texturized fiberglass fabric, acrylic weave set to finish- high add-on, provide good hand, minimal dust, and ease of application.
It’s designed for flexible expansion joint, removable jackets, welding protection, and other types of fire protection needs.
Acrylic coated fiberglass has excellent high temperature resistance up to temp. 5500C,self-extinguishes in 2 seconds when moving away from fire.
Acrylic treatment reduces the airborne of glass, improves mechanical performance. It is asbestos-free, no harm to human beings or animals.
Except for black colors, other colors available.
Technical Data:
| BASE FABRIC | Base fabric style No. TGF880 | |||
| (Metric) | (English) | Test methods | ||
| Weave | 4 harness satin | Crowfoot | ||
| Yarn | ||||
| Warp | ET9 480 tex | ETG 8.6 | ||
| Weft | ET9 480 tex | ETG 8.6 | ||
| Construction | ||||
| Warp | 10 ± 0.6 ends/cm | 25 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 8 ± 0.5 picks/cm | 20 ± 1 picks/inch | ASTM D 3775-96 | |
| Weight | 880 ± 40 g/m2 | 25.8 ± 1.2 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.0 ± 0.1 mm | 0.039 ± 0.005 inch | ASTM D1777-96 | |
| COATED FABRIC | Coating style No. AC225-3008 | |||
| Coating | Acrylic weave-set finish on both sides, high add-on. | |||
| Weight | 1020 ± 40 g/m2 | 30 ± 1.2 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.05 ± 0.1 mm | 0.043 ±0.005 inch | ASTM D1777-96 | |
| Color | Black | |||
| Temp resistance | 5500C | 10000F | ||
Advantages:
1. Easy to be holed, sewn and fabricated.
2. Good mechanical properties
3. Bears temperature up to 550 C degree
4. Excellent tensile strength.
Main applications:
1. Fire resistant curtain
2. Welding protection blanket
3. Industrial thermal insulation covers
