Product Details:
Payment & Shipping Terms:
|
| Color: | Golden Fire Resistant Fiberglass Fabric | Application: | Smoke Curtain,welding Protection |
|---|---|---|---|
| Width: | 183cm | Thickness: | 1.0mm |
| Density: | 1020 G/sq.mtr | Temperature: | 550 Degree C |
| High Light: | 1.0mm Fiberglass Fabric,fiberglass fabric roll,30oz Fiberglass Fabric |
||

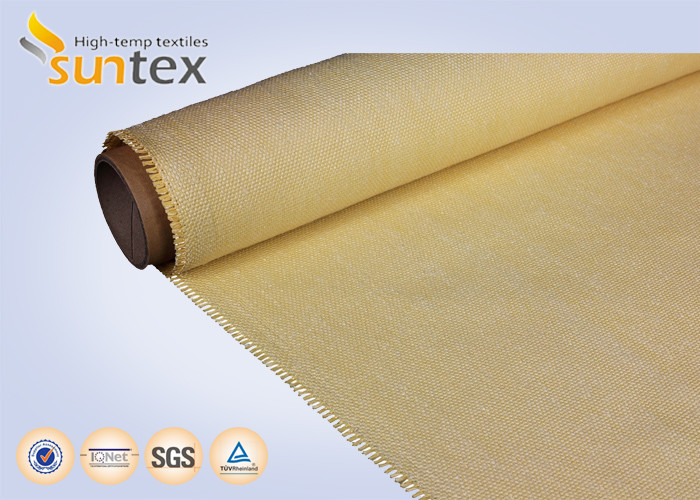

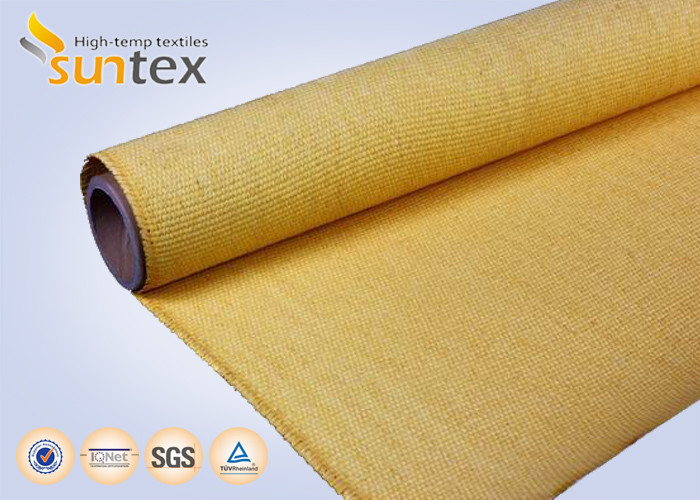

1.0mm 30oz Fire Resistant Fiberglass Fabric Flame Retardant Smoke Curtain
TGF884P-AC236-3022 is a texturized fiberglass fabric with acrylic coating.It has excellent high temperature resistance up to temp. 5500C,self-extinguishes in 2 seconds when moving away from fire.
Acrylic coating improves handing and reduces airborne fibers.The coating enhances abrasion resistance and shelf life while eliminating the potential for toxic smoke out gassing. After treatment, the machnical performance improved as well.
Fire Resistant Fiberglass Fabric is asbestos-free totally,no harm to human or animals.
Suntex provide golden color or other colors required.
Technical Data:
| BASE FABRIC | Base fabric style No. TGF884 | ||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | ET9 860 tex | ETG 5.8 | |
| Weft | ET9 860 tex | ETG 5.8 | |
| Construction | |||
| Warp | 6.1 ± 0.5 ends/cm | 15 ± 1 ends/inch | ASTM D 3775-96 |
| Weft | 4.1 ± 0.2 picks/cm | 10 ± 1 picks/inch | ASTM D 3775-96 |
| Weight | 884± 30 g/m2 | 26 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.0 ± 0.04 mm | 0.039 ± 0.002 inch | ASTM D1777-96 |
| FINISHED FABRIC | Finishing style No. AC236-3022 | |||
| Coating | Acrylic weave-set finish on both sides, high add-on. | |||
| Weight | 1020 ± 50 g/m2 | 30 ± 1.47 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.0 ± 0.08 mm | 0.039± 0.003 inch | ASTM D1777-96 | |
| Color | Golden | |||
| Temp resistance | 5500C | 10000F | ||
Advantages:
1. Easy to be holed, sewn and fabricated.
2. Supports high heat up to 550 C degree
3. Excellent tensile strength.
Main applications:
1. Smoke retardant curtain
2. Welding protection blanket
3. Industrial heat insulation mattress
