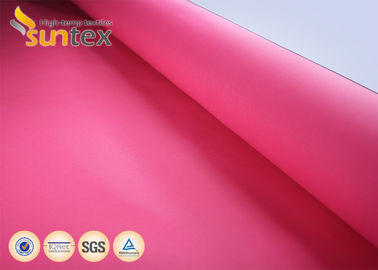

16oz Acrylic Coated Fiberglass Fabric Roll For Fire Blanket Fireproofing Curtain OEM colors

Place of Origin China
Brand Name SUNTEX
Model Number GF400-WS224-3026
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Application Fire Blanket/curtain
Thickness 0.017'' Density 16 Oz
Continous Temperature 550 Degree C Treatment Weave-set Treated
Highlight

acrylic coated fiberglass

,

high temp fabric

Leave a Message
Product Description

16oz Acrylic coated Fire Resistant Fiberglass Fabric fire blanket fireproofing curtain



GF400-WS224-3026 is a woven fiberglass fabric with acrylic treatment.It supports temperature up to 5500C,self-extinguishes in 2 seconds when getting away from fire.



Acrylic treatment reduces airborne fibers, enhances abrasion resistance and shelf life while eliminating the potential for toxic smoke out gassing. After treated, the machanical performance improves much as well,become easy to sew, cut, and pouch holes.



It is human being & animal friendly, asbestos-free completely



This type Fiberglass Fabric is red color, but Suntex provide colors OEM as well.



16oz Acrylic Coated Fiberglass Fabric Roll For Fire Blanket Fireproofing Curtain OEM colors 0



Technical Data:



BASE FABRIC Base fabric style No. GF400
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp EC9 33 1*4 ECG 150 1/4
Weft EC9 33 1*4 ECG 150 1/4
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 410 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96






FINISHED FABRIC Finishing style No. WS224-3026
Coating Acrylic weave-set finish two sides, high add-on.
Weight 550 ± 20 g/m2 16 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.42 ± 0.02 mm 0.017 ± 0.0007 inch ASTM D1777-96
Color Red
Temp resistance 5500C 10000F



Advantages:



1. OEM colors. End users can choose what they like.

2. Easy to be holed, sewn and fabricated.

3. Excellent abrasion resistance property.

4. Excellent tensile strength.



Main applications:



1. Hullboard.

2. Fireproof protective blanket, welding blanket

3. Aerospace thermal ablation covers
