Quality Thermal Reflective Aluminum Foil Fabric 0.4mm for Heat Protection Gloves and Aprons factory

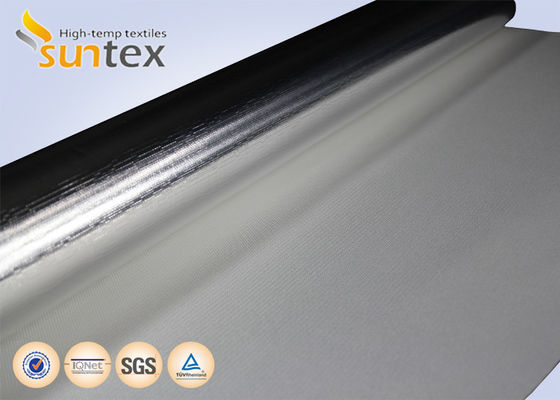

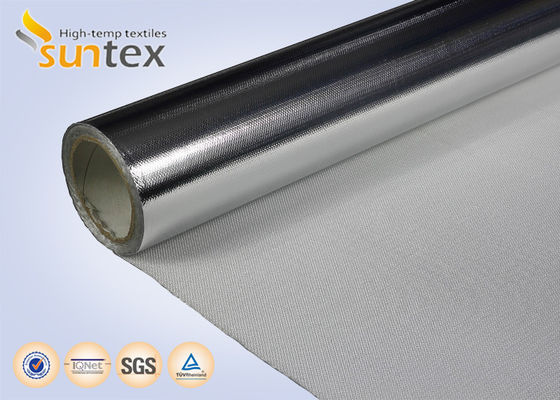

Thermal Reflective Aluminum Foil Fabric 0.4mm for Heat Protection Gloves and Aprons

Name: Thermal Reflective Aluminum Foil Fabric 0.4mm for Heat Protection Gloves and Aprons
Brand: Suntex Composite Industrial Co.,Ltd.
SKU: GF430-AF110–6008
Price: 3.00 USD
Availability: InStock

Place of Origin:China

Brand Name:SUNTEX

Model Number:GF430-AF110–6008

Minimum Order Quantity:20 rolls

Payment Terms:T/T; L/C, Paypal...

Supply Ability:500000sqm/month

Product Details

Highlight:

silver heat reflective fabric

,

aluminum fiberglass cloth

Application: Heat Protection Glove And Apron

Thickness: 0.4mm

Working Temperature: 550C

Treatment: Aluminum Film Laminated

Property: High Temp. Reflective

Density: 440gsm

Product Description

0.4mm Aluminum Foil Thermal Reflective Fabric For Heat Protection Glove And Apron

Product Description

Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.

-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.

BASE FABRIC	Base fabric style No. GF430
	(Metric)	(English)	Test methods
Weave	4H Satin	Crowfoot
Yarn
Warp	EC9 33 1*4	ECG 150 1/4
Weft	EC9 33 1*4	ECG 150 1/4
Construction
Warp	18 ends /cm	48 ± 3 ends/inch
Weft	12.6 picks /cm	32 ± 3 picks/inch
Weight	430 ± 20 g/m²	12.6 ± 0.58 oz/yd²	ASTM D3776-96
Thickness	0.37 ± 0.02 mm	0.0145 ± 0.0008 inch	ASTM D1777-96

COATED FABRIC	Coating style No. AF110-6008
Coating	Aluminised polymer film ,one side
Weight	450 ± 20 g/m²	13.2 ± 0.59 oz/yd²	ASTM D3776-96
Thickness	0.39 ± 0.03 mm	0.015 ± 0.0012 inch	ASTM D1777-96
Color	Silver
Temp resistance	Glass fabric up to 550⁰C (1000⁰F) Aluminum foil up to 140⁰C (300⁰F)

Product Application
