0.2mm Aluminum Foil Silver Heat Reflective Fabric Fiberglass Insulation Laminating Layer

China 0.2mm Aluminum Foil Silver Heat Reflective Fabric Fiberglass Insulation Laminating Layer supplier
0.2mm Aluminum Foil Silver Heat Reflective Fabric Fiberglass Insulation Laminating Layer supplier 0.2mm Aluminum Foil Silver Heat Reflective Fabric Fiberglass Insulation Laminating Layer supplier 0.2mm Aluminum Foil Silver Heat Reflective Fabric Fiberglass Insulation Laminating Layer supplier

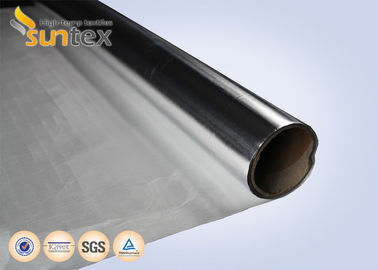

Large Image :  0.2mm Aluminum Foil Silver Heat Reflective Fabric Fiberglass Insulation Laminating Layer

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Certification: ISO9001; SGS M0 Certificate
Model Number: GF200-AF110-6009

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Contact Now
Detailed Product Description
Color: Silver Application: Thermal Insulation Laminating Layer
Thickness: 0.2mm Working Temperature: 550 C
Coated: Aluminum Film Laminated Fuction: Heat Insulation
Weight: 215g/sqm Yarn: 9um E-glass

0.2mm Aluminum Foil Heat Reflective Fabric Fiberglass Insulation Laminating Layer



GF200-AF110-6009 is a light-weight woven fiberglass fabric laminated with a aluminized polymer film for the manufacturer of heat protection glove and cloth ,as well the thermal insulation covers.



Suntex uses the high temperature adhesive to ensure the maximum working temperature up to 150 0C.The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipments by reflecting radiant heat.



Width of fabrics available from 100cm to 120cm.



Technical Data:



BASE FABRIC Base fabric style No. GF200P
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp EC9 68 1*0 ECG 75 1/0
Weft EC9 68 1*0 ECG 75 1/0
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch
Weight 200 ± 10 g/m2 5.89 ± 0.29 oz/yd2 ASTM D3776-96
Thickness 0.20 ± 0.01 mm 0.008 ± 0.0004 inch ASTM D1777-96

COATED FABRIC Coating style No. AF110-6009
Coating Aluminised polymer film ,one side
Weight 215 ± 10 g/m2 6.34 ± 0.29 oz/yd2 ASTM D3776-96
Thickness 0.21 ± 0.02 mm 0.008 ± 0.0008 inch ASTM D1777-96
Color Silver
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum film up to 1400C (3000F)


Advantages:



1. Perfect heat radiant reflection.

2. Excellent fireproof,waterproof.

3. Good tear strength.

4. Good mechanical properties.Easy to be holed, sewn and fabricated.

5. Bears temperature from 150C to 550C degree



Main applications:



1. Heat-retardant curtains or screens

2. Thermal insulation covers, mattress and pads

3. Safety cloth and apron



Guarantee:



All Suntex’s customers are covered by below warranty:

  • Packing.---Suntex promise to employ the packing materials which are suitable for container shippment as exporting standard,including the boxes, cartons, wood or plastic pallets,crates, to prevent the goods from damaged during the ocean transportation.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.Replacement. – In case of the quality problem of delivered products, suntex will send out a new batch to replace without delaying.
  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
