Quality 150℃ Heat Insulation Shield Material: Non Combustible Laminated Aluminum Foil Fiberglass Cloth (1.3mm) factory

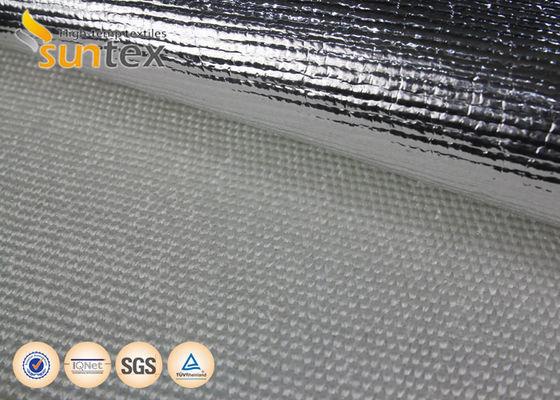

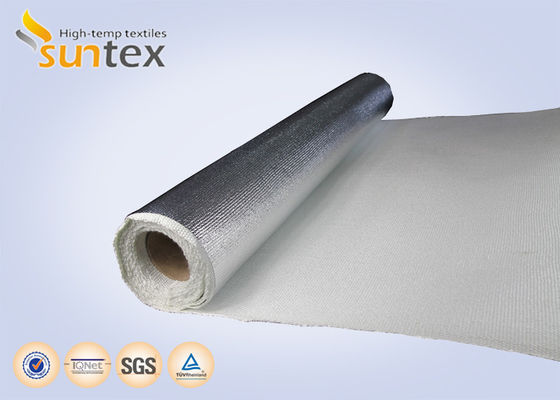

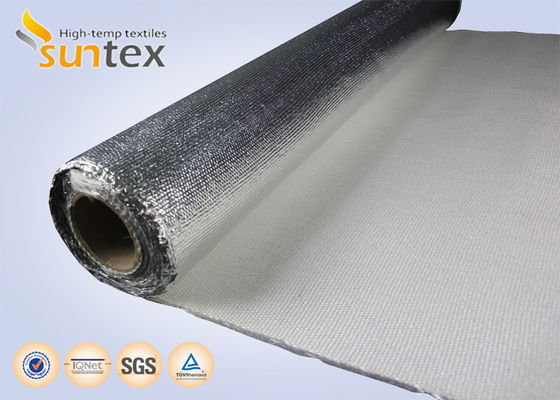

150℃ Heat Insulation Shield Material: Non Combustible Laminated Aluminum Foil Fiberglass Cloth (1.3mm)

Name: 150℃ Heat Insulation Shield Material: Non Combustible Laminated Aluminum Foil Fiberglass Cloth (1.3mm)
Brand: Suntex Composite Industrial Co.,Ltd.
SKU: TGF1000-AL118-6006
Price: 6.00 USD
Availability: InStock

Place of Origin:China

Brand Name:SUNTEX

Model Number:TGF1000-AL118-6006

Minimum Order Quantity:20 rolls

Payment Terms:T/T; L/C, Paypal...

Supply Ability:500000sqm/month

Product Details

Highlight:

aluminized fiberglass fabric

,

aluminum coated fiberglass

Color: Silver

Application: Heat Insulation Shield

Weight: 1050g/sq.mtr

Working Temperature: Up To 150 C

Treatment: Aluminum Laminated

Property: Heat Insulation

Flame Resistance: Non-combustible

Origin: China

Product Description

Non Combustible Aluminum Foil Fiberglass Cloth 1.3mm Laminated Heat Insulation Shield 150C

Product Description

Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.

-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.

BASE FABRIC	Base fabric style No. TGF1000
	(Metric)	(English)	Test methods
Weave	Plain	Plain
Yarn
Warp	ET9 1290 tex	ETG 3.88
Weft	ET9 1290 tex	ETG 3.88
Construction
Warp	6 ± 0.5 ends/cm	15 ± 1 ends/inch
Weft	3.15 ± 0.3 picks/cm	8 ± 1 picks/inch
Weight	1000 ± 50 g/m²	30 ± 1.5 oz/yd²	ASTM D3776-96
Thickness	1.3 ± 0.05 mm	0.051 ± 0.002 inch	ASTM D1777-96

COATED FABRIC	Coating style No. AL118-6006
Coating	Aluminum foil (18 microns) laminated on one side.
Weight	1050 ± 80 g/m²	31 ± 2.35 oz/yd²	ASTM D3776-96
Thickness	1.35 ± 0.1 mm	0.053 ± 0.004 inch	ASTM D1777-96
Color	Silver
Flame resistance	Non-combustible
Temp resistance	Glass fabric up to 550⁰C (1000⁰F) Aluminum foil up to 180⁰C (350⁰F)

Product Application

Exhibition & Example

-_16

aluminized fiberglass fabric

aluminized fiberglass cloth

aluminum coated fiberglass
